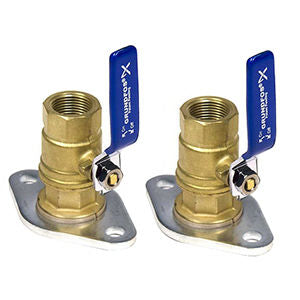

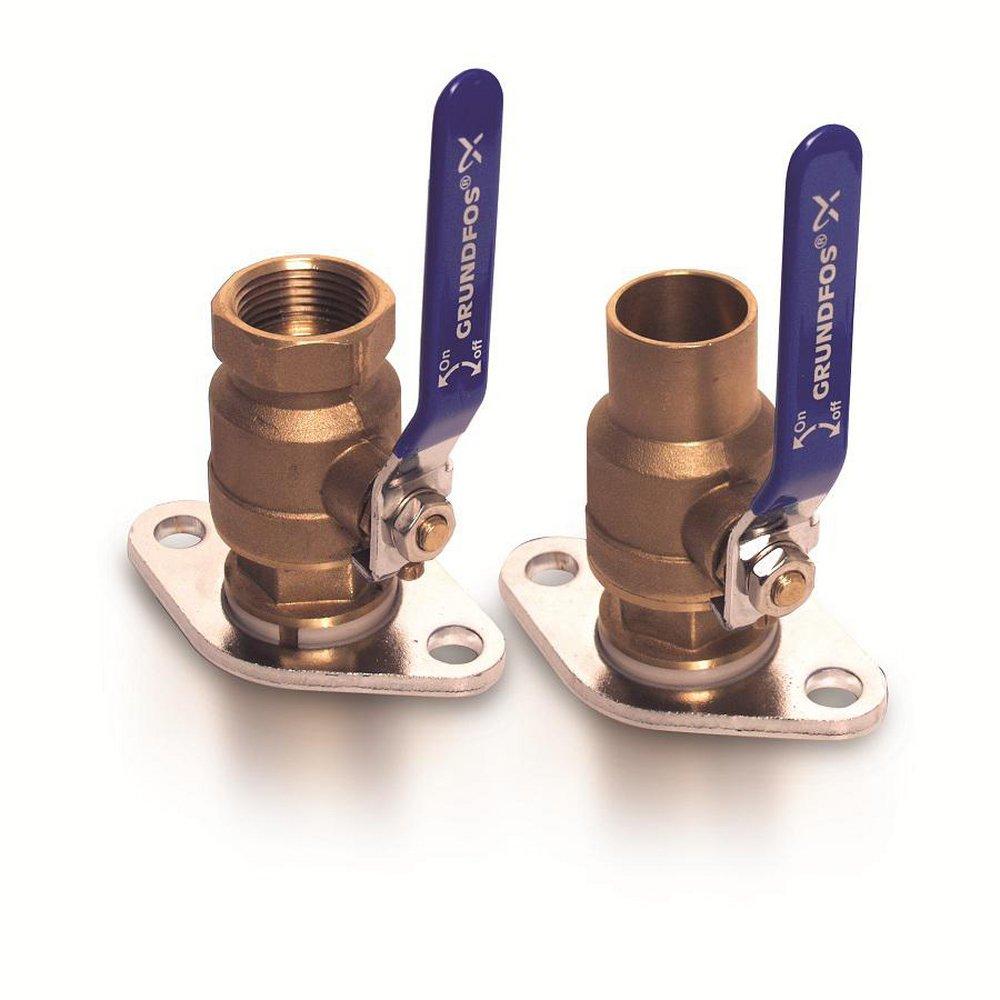

Grundfos 96806135 3/4 in. Bronze Sweat Valve Kit

Product Description

The Grundfos 96806135 is a 3/4 inch bronze sweat valve kit designed for reliable isolation in plumbing and heating systems. This valve kit includes essential components for installation and operation.

• Includes rotating flanges, lever handle ball valve, dielectric sleeve, gaskets, and bolts.
• Suitable for UP series circulator pumps.
• Built for high temperature and pressure requirements.

Product Highlights

The valve set is ideal for creating a secure and leak-free connection in various systems.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96806135

Technical Specifications

• Size: 3/4 inch
• Connection Type: Solder
• Includes: (2) rotating flanges, (2) lever handle ball valves, (2) dielectric sleeves, (2) gaskets, (4) bolts with nuts
• Max Temperature: 230 degrees Fahrenheit
• Max Pressure: 150 PSI
• Industry Standards: IAPMO 6591 Listed
• Other Dimensions: 3-1/4 inches face to face, 2-1/4 inches center of port to top, 3.73 inches center of valve to handle end, 4.19 inches flange diameter
