Product Description

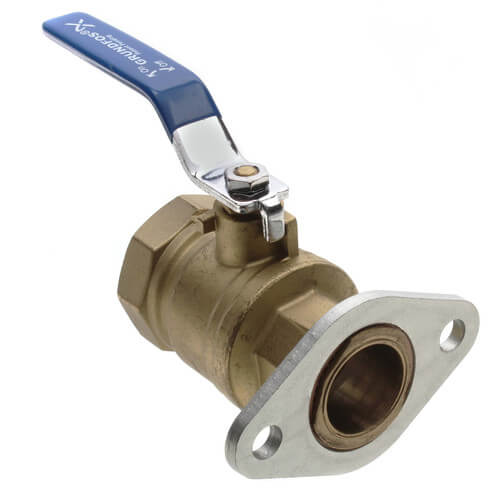

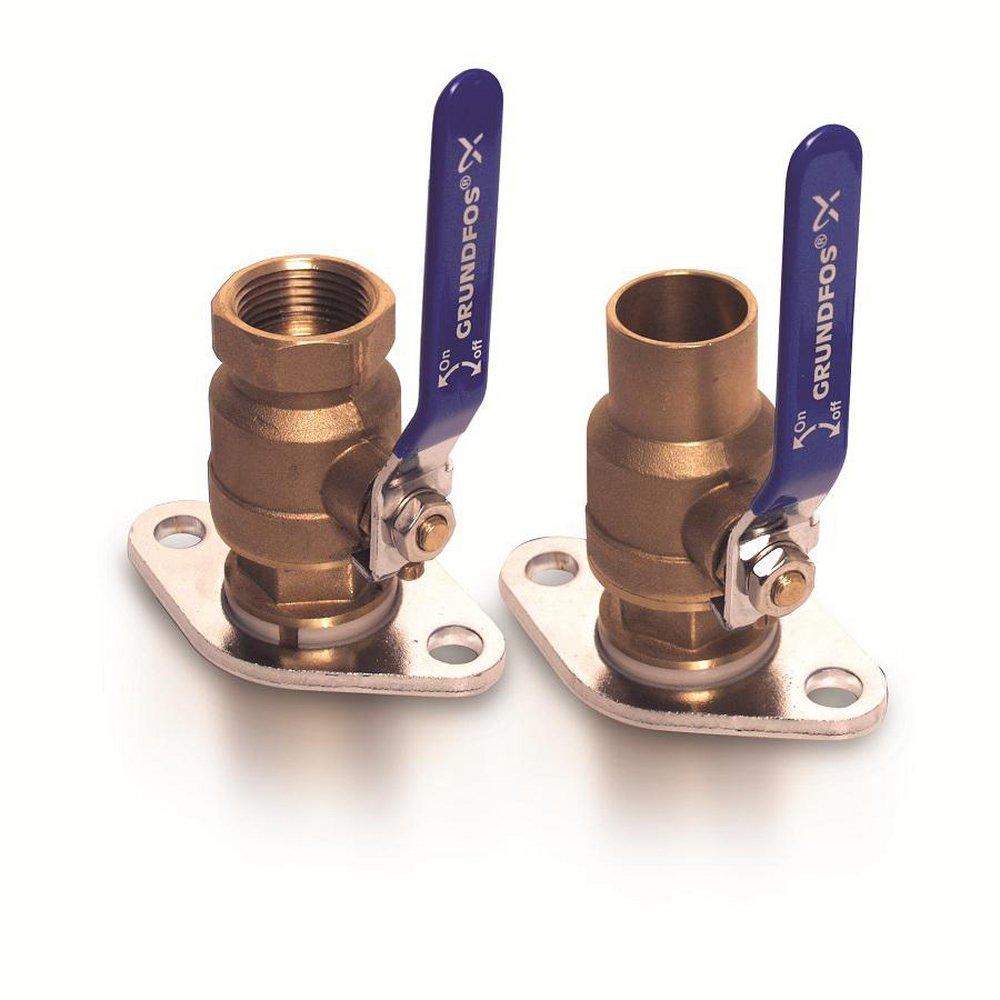

The Grundfos 96806133 is a 1-1/2 inch bronze NPT valve kit designed for use in various HVAC and plumbing applications. This packaged dielectric isolation valve set includes two chrome plated steel rotating flanges, lever handle ball valves, and dielectric sleeves. It supports a maximum pressure of 150 PSI and a maximum temperature of 230 degrees Fahrenheit.
- Application: Designed for use with Grundfos UP series circulator pumps.
- Connection Type: FNPT for secure installation.
- Standards: IAPMO 6591 listed for reliable performance.
Product Highlights
This valve kit is essential for ensuring effective isolation and control in pump systems.
Product Information
Standard Information
-
Item Name: Packaged Dielectric Isolating Valve Set
-
Size: 1-1/2 IN
Technical Specifications
-
Connection Type: FNPT
-
Includes: 2 Chrome Plated Steel Rotating Flanges, 2 Ball Valves, EPDM Gaskets, Dielectric Sleeves, 4 Bolts with Nuts
-
Industry Standards: IAPMO 6591 Listed
-
Dimensions: 4.11 IN Face To Face, 2-31/32 IN Center Of Port To Top
-
Additional Specifications: Maximum Temperature: 230 degrees F, Maximum Pressure: 150 PSI
