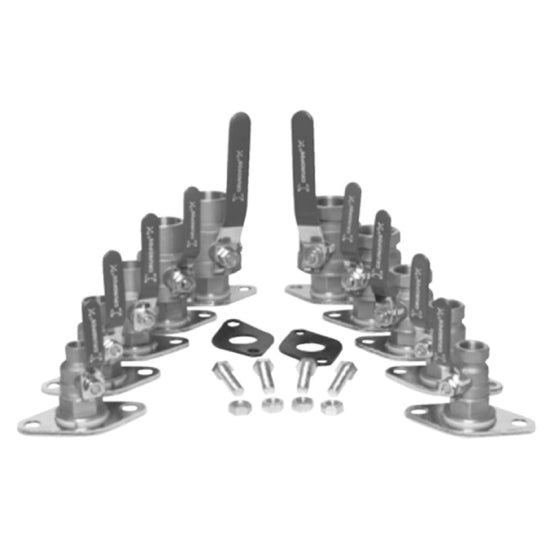

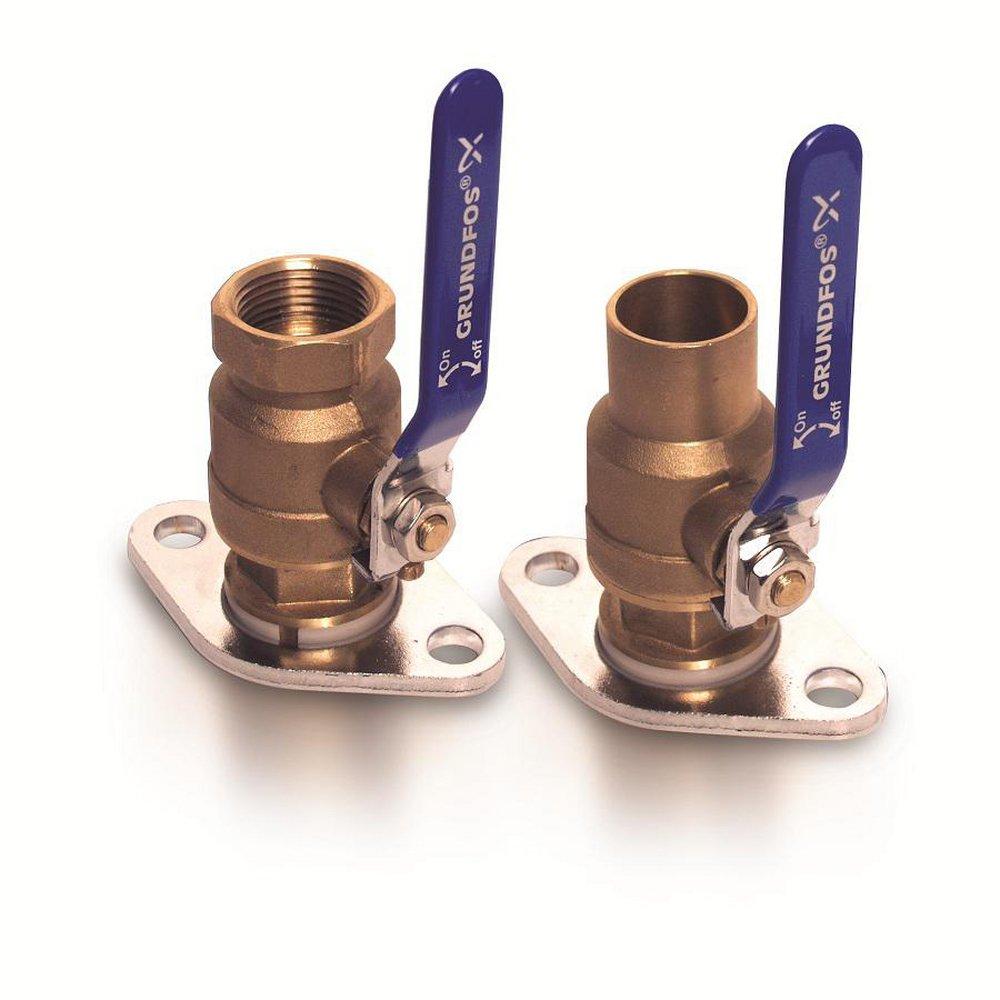

Grundfos 96806129 1/2 in. Bronze NPT Valve Kit

Product Description

The Grundfos MPN 96806129 is a 1/2 inch bronze NPT valve kit. This dielectric isolation valve set is designed specifically for use with Grundfos circulator pumps.

• Includes chrome plated steel rotating flanges.
• Designed for compatibility with UP series circulator pumps.
• Constructed to meet IAPMO 6591 standards for safety.

Product Highlights

This valve kit is essential for effective isolation of circulator pumps, ensuring efficient operation and maintenance.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96806129

Technical Specifications

• Size: 1/2 in
• Connection Type: FNPT
• Material: Bronze
• Includes: (2) chrome plated steel rotating flanges, (1) PTFE seat, (1) chrome plated brass lever-handled ball valve, (2) EPDM gaskets, (2) dielectric sleeves, (4) bolts with nuts
• Industry Standards: IAPMO 6591 Listed
• Dimensions: 2.84 in face to face, 2 in center of port to top, 3.45 in center of valve to handle end, 4.19 in flange diameter
• Maximum Temperature: 230 degrees F, Maximum Pressure: 150 PSI
