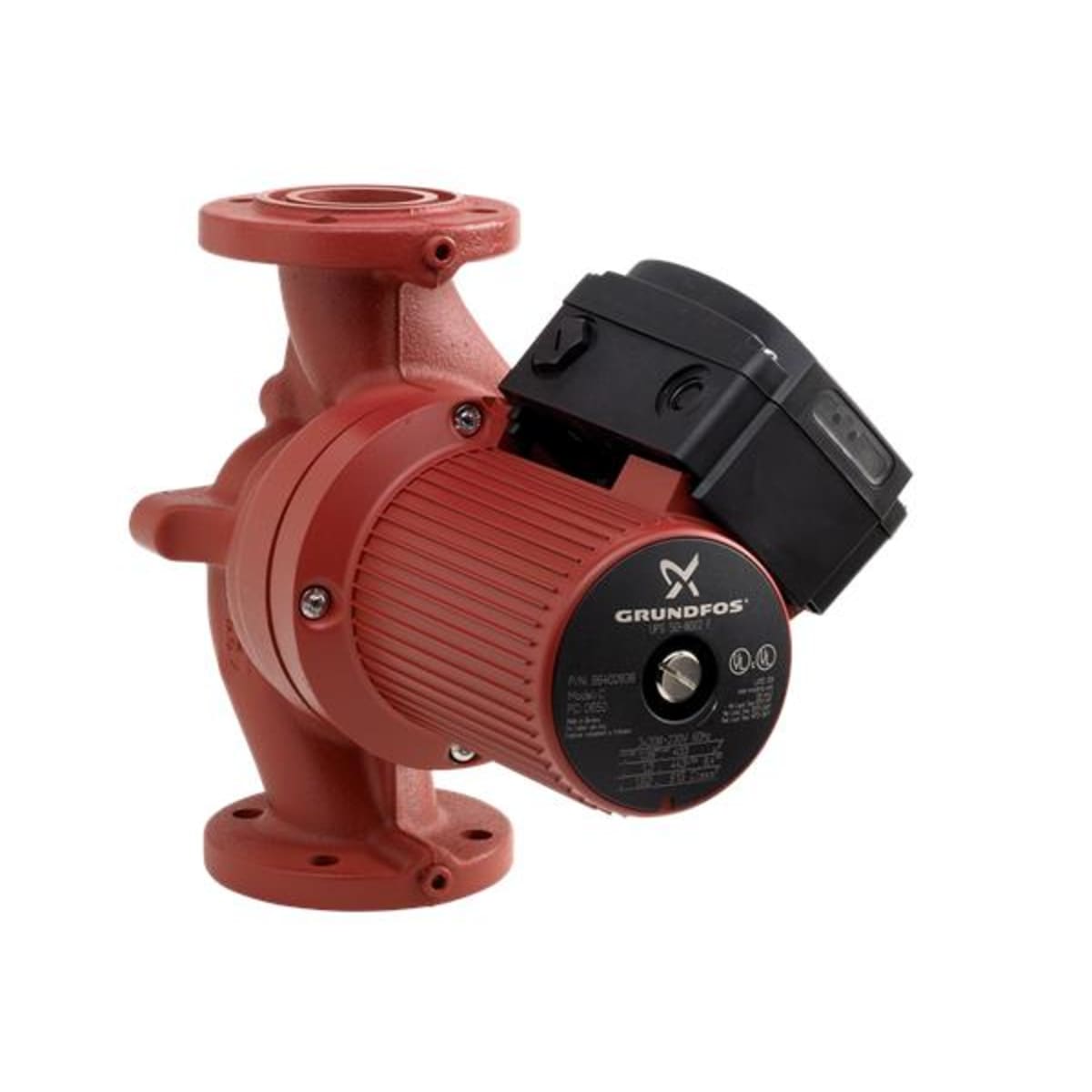

Grundfos 96654373 UPS53-55/57, Max Head 31, Max Flow 136 gpm - Cast Iron Body - 1x115V

Product Description

The Grundfos UPS53-55/57 circulator pump, MPN 96654373, is designed for heating and air conditioning systems. It features a cast iron body and operates on 115 volts. This pump is ideal for both residential and commercial applications, ensuring reliable performance in a variety of settings.

• Max head of thirty-one feet
• Max flow rate of one hundred thirty-six gallons per minute
• Three-speed operation allows for flexibility in usage

Product Highlights

This pump is a robust solution for efficient fluid circulation in heating applications. It provides maintenance-free operation and is built for durability and long life.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96654373

Technical Specifications

• Max Flow Rate: 136 gpm
• Max Head: 31 feet
• Material: Cast Iron
• Voltage Rating: 115 VAC
• Phase: 1 ph
• Power Rating: 630 W
• Amperage Rating: 5.8 to 5.85 A
• Maximum Pressure: 145 psi
• Dimensions: 326 mm W x 302 mm H
• Temperature Rating: 32 to 104 deg F Ambient
• Enclosure Type: X4D
• Frequency Rating: 60 Hz
