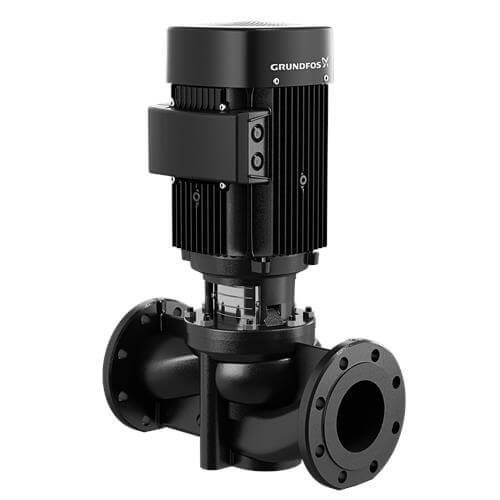

Grundfos 96411798 TP40-160/2 In-Line Circulator Pump 3/4 HP

Product Description

The Grundfos 96411798 TP40-160/2 is a high-efficiency, in-line pump designed for liquid circulation across a variety of applications, including heating and air-conditioning systems. With its robust cast iron build and innovative Blueflux motor technology, it offers superior performance with reduced operational costs.

• Engineered for low noise and high-capacity operations.
• Durable and easy maintenance design with top-pull-out feature.
• Optimal corrosion resistance with cataphoresis and zinc phosphate coating.

Product Highlights

This circulator pump integrates advanced design features such as a friction-welded shaft and a balanced impeller, which significantly minimize vibrations and extend component lifetimes. It's equipped with IE3 certified Blueflux motors, ensuring maximum electrical efficiency.

Product Information

Standard Information

• Type: In-Line Circulator
• Use: Liquid circulation in heating/cooling systems

Technical Specifications

• Power: 3/4 HP
• Voltage: 115/208-230V
• Max Flow: 59.4 GPM
• Max Head: 52.5 feet
• Connection Size: 1-1/2 inches Flanged
• Max Pressure: 145 PSI
• Temperature Range: 5° to 284°F
