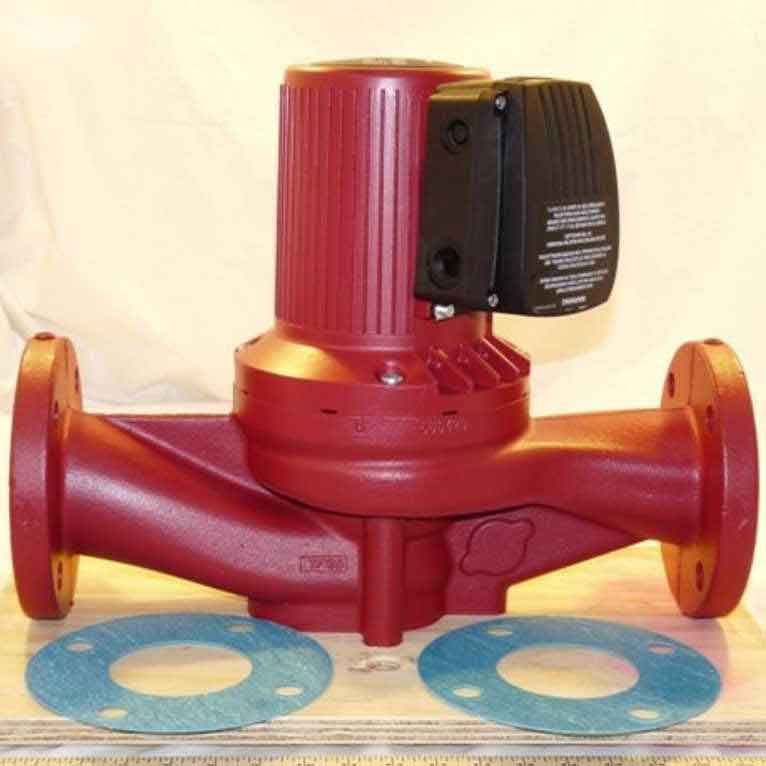

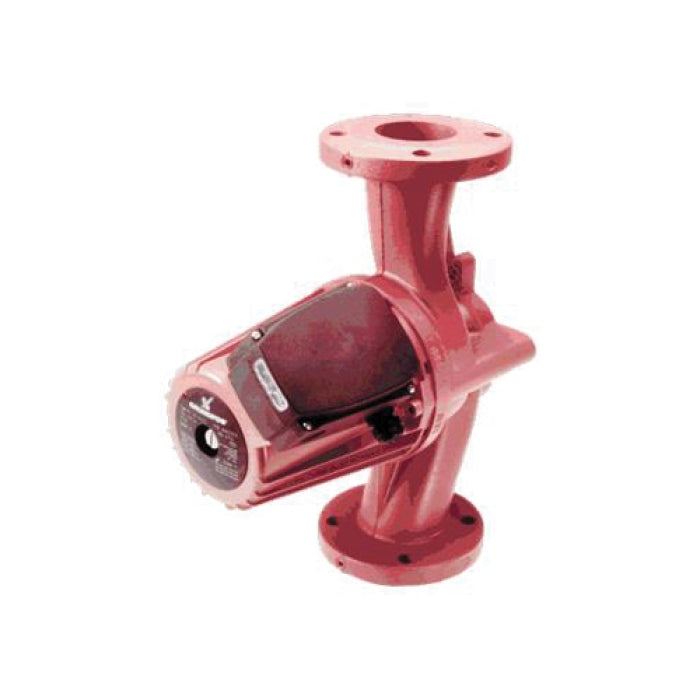

Grundfos 96402920 UPS80-160/2 3 HP 208-230V Cast Iron Circulator Pump

Product Description

The Grundfos 96402920 is a robust and powerful 3 HP cast iron circulator pump designed for efficient liquid circulation in heating and air conditioning systems. Ideal for both residential and commercial applications, this pump ensures reliable and optimised performance.

• Equipped with built-in motor protection for enhanced durability.
• Features whisper-quiet operation and is maintenance-free.
• Constructed with a corrosion-resistant impeller for extended lifespan.

Product Highlights

This pump integrates exclusive wet rotor technology with three-speed motor settings to adapt to different system requirements, ensuring energy efficiency and lower operating costs. Its design without a mechanical seal and the water-cooled motor provide a leak-proof and trouble-free performance.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96402920

Technical Specifications

• Power: 208 to 230 VAC
• Phase: 3 ph
• Motor Speed: 3450 rpm
• Frequency: 60 Hz
• Maximum Head: 52.5 ft
• Maximum Pressure: 145 psi
• Impeller Type: 304 Stainless Steel
• Temperature Rating: 140 deg F
