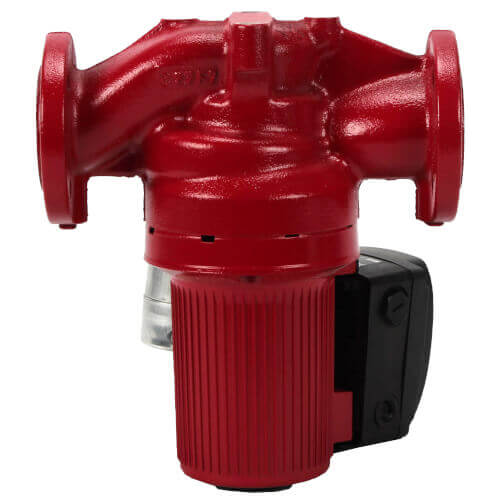

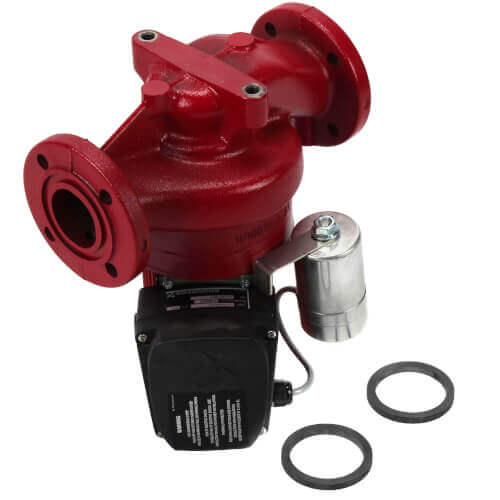

Grundfos 96402860 UPS50-160/2 Cast Iron Circulator Pump 1-1/2 HP 208-230V 3-Speed

Product Description

The Grundfos 96402860 UPS50-160/2 is a robust circulator pump designed for hydronic heating and air conditioning systems in large residential and commercial buildings. Built to ensure efficient and reliable operation, this pump integrates advanced technology with durability.

• Equipped with a three-speed motor for variable performance.
• Constructed from cast iron, ensuring longevity even in demanding environments.
• Features a maintenance-free, wet-rotor design with built-in motor protection.

Product Highlights

This circulator pump is well-suited for systems requiring consistent and controlled water flow. The built-in thermal protection prevents overheating, enhancing safety and performance longevity.

Technical Specifications

• Power: 1-1/2 HP
• Voltage: 208-230V
• Connection Size: 2 inches NPT
• Maximum Operating Pressure: 145 PSI
• Maximum Flow Rate: 74.2 GPM
• Maximum Head: 26.5 feet
• Weight: 53.57 lbs
