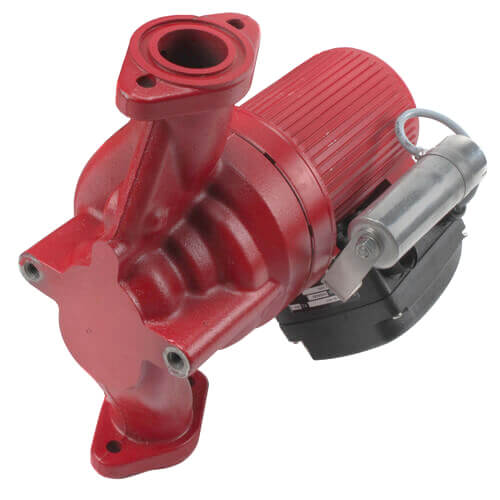

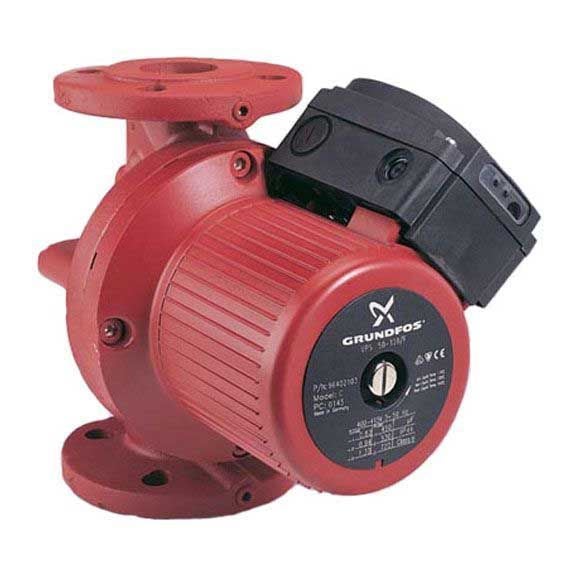

Grundfos 96402764 UPS 40-80/2 F 200 Series Circulator Pump 3 PH 208-230V

Product Description

The Grundfos 96402764 UPS 40-80/2 F 200 Series Circulator Pump is built for robust performance. This pump features a canned rotor, meaning the pump and motor are a single unit without shaft seals, relying on only two gaskets for sealing. The bearings are lubricated by the pumped liquid, minimizing the need for maintenance.

• 3-speed motor
• Ceramic radial bearings
• Stainless steel rotor can

Product Highlights

The Grundfos 96402764 is a cast iron circulator pump ideal for hydronic heating in closed loop systems, with 208-230V voltage and three-phase motor for high performance.

Product Information

Standard Information

• Brand: Grundfos
• Model: UPS40-80/2

Technical Specifications

• MPN: 96402764
• Motor Voltage: 208-230V
• Motor Phase: 3 Ph
• Motor Hertz: 60 Hz
• Max Temp: 230°F
• Weight: 48.00 lbs
• Pump Construction: Cast Iron-CI
• Overall Dimensions (L x W x H): 11-15/16 in W x 13-1/2 in H
