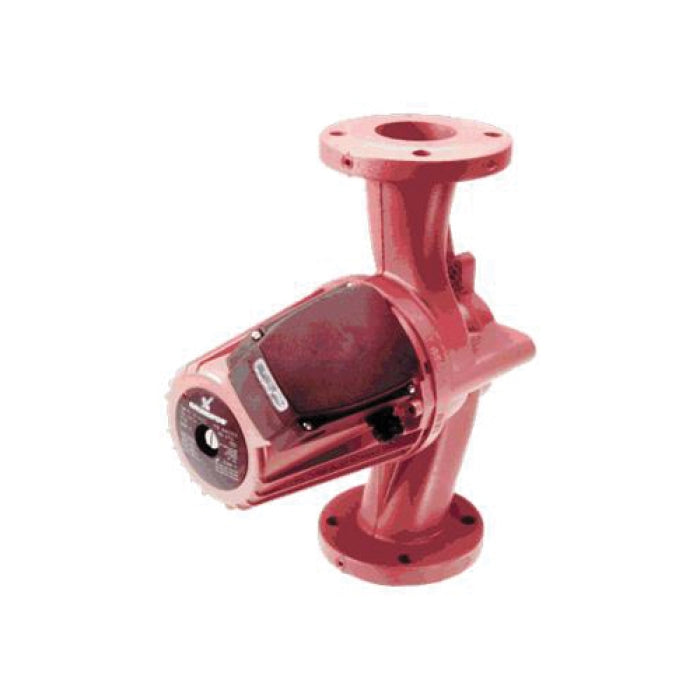

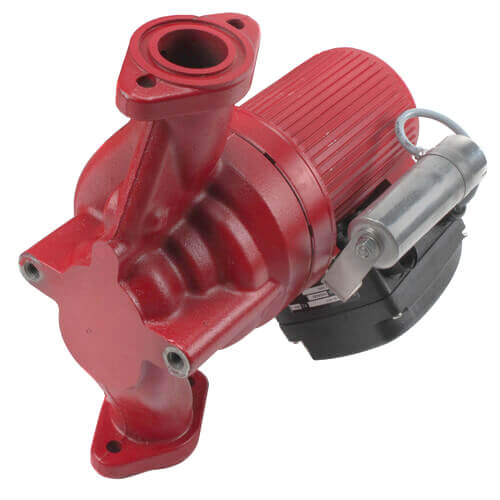

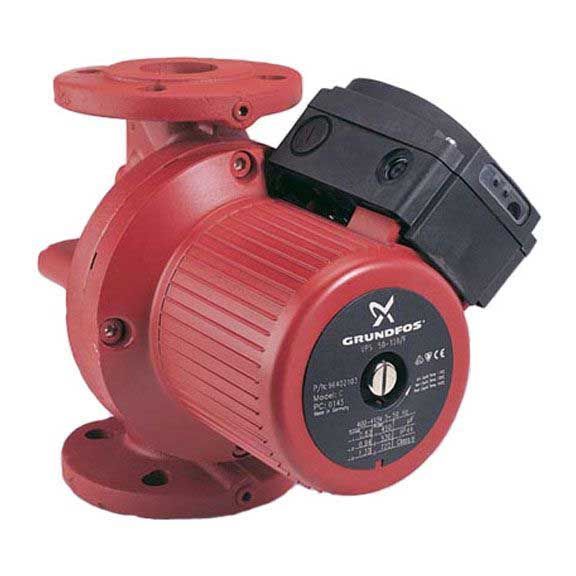

Grundfos 96402763 UPS40-80/2 3/4 HP 230V Cast Iron Circulator Pump

Product Description

The Grundfos UPS40-80/2 96402763 is a robust cast iron circulator pump designed for optimal efficiency in hydronic heating systems. Engineered with a 3/4 horsepower motor and operating on a 230V AC supply, this pump incorporates a three-speed setting to accommodate varying system demands.

• Feature a canned rotor design, integrating the pump and motor in a single, sealed unit.
• Includes exclusive wet rotor technology, ensuring quiet operation and maintenance-free performance.
• Equipped with flange gaskets, with optional GF40/43 flanges sold separately for versatile installations.

Product Highlights

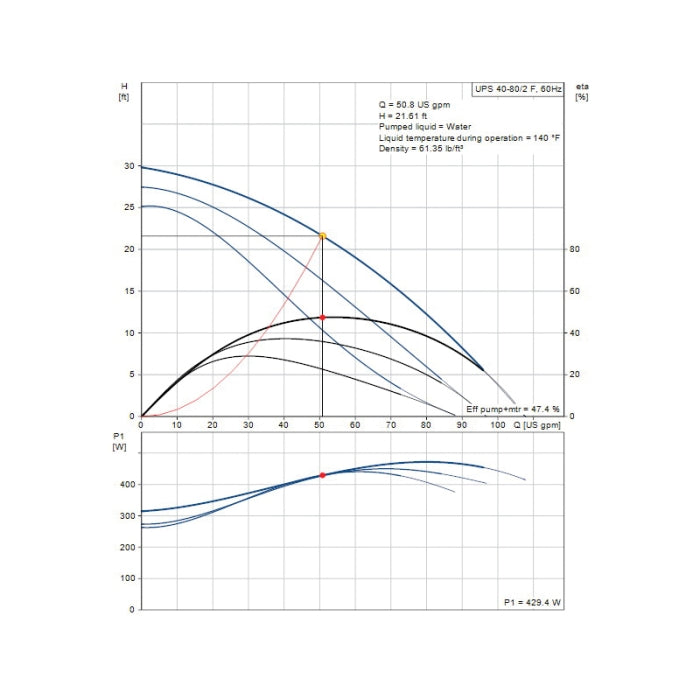

Grundfos UPS40-80/2 is known for its durability and energy efficiency, making it suitable for both residential and commercial applications. Its dynamic flow rate of 50.8 gallons per minute and maximum head of 26.25 feet make it a powerful solution for circulating liquids in closed loop systems.

Product Information

Standard Information

• Power Rating: 480 Watts
• Voltage: 230 Volts
• Frequency: 60 Hz

Technical Specifications

• Horse Power: 3/4
• Maximum Pressure: 145 psi
• Construction Material: Cast Iron
• Impeller Material: Stainless Steel
• Motor Speed: 3450 rpm
• Bearing Type: Ceramic Radial/Carbon Thrust
• Temperature Rating: 140 degrees Fahrenheit
