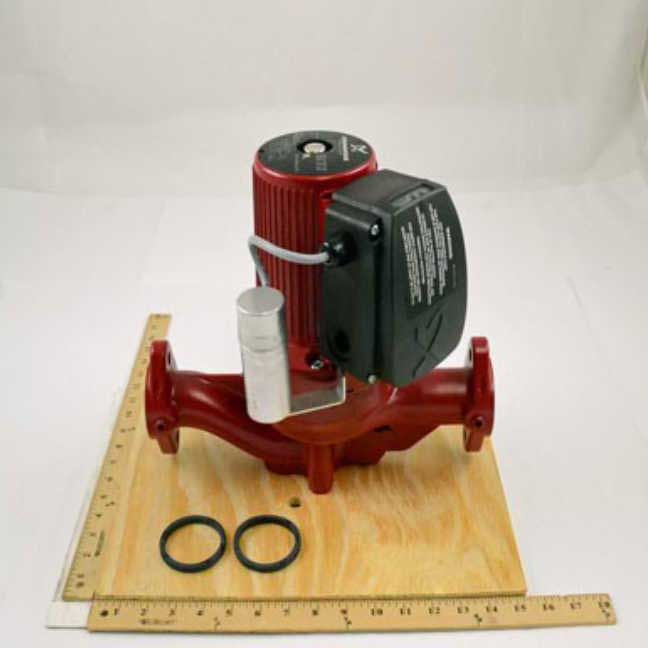

Grundfos 96402733 UPS32-160/2 3-Speed Cast Iron Circulator Pump 230V 3/4 HP

Product Description

The Grundfos UPS32-160/2 cast iron circulator pump is engineered for reliable heating and cooling circulation in residential and commercial settings. This model, part of the UPS Series, features a robust 3/4 HP motor, versatile 230 volt single phase power, and three operational speeds for enhanced flow control.

• Optimal hydraulic efficiency with 3-speed settings
• Durable cast iron construction ensures longevity
• Designed for quiet operation and easy installation
Product Highlights

The Grundfos UPS32-160/2 offers substantial operational flexibility. Its flanged connections facilitate easy installation, while the inclusion of flange gaskets (flanges sold separately) ensures a secure setup.

Product Information

Standard Information

• Power Source: 230 volts
• Motor: 3/4 horsepower, 3-speed, single phase
Technical Specifications
Construction
Cast Iron
Connection Size
1-1/2 inches NPT
Max Temperature
230 degrees Fahrenheit
Operational Design
Flange, includes gaskets
Pump Type
Booster, in-line mounting
Flow Rate
32.9 gallons per minute
Max Head
52.5 feet
Max Pressure
145 psi
Weight
49 pounds
