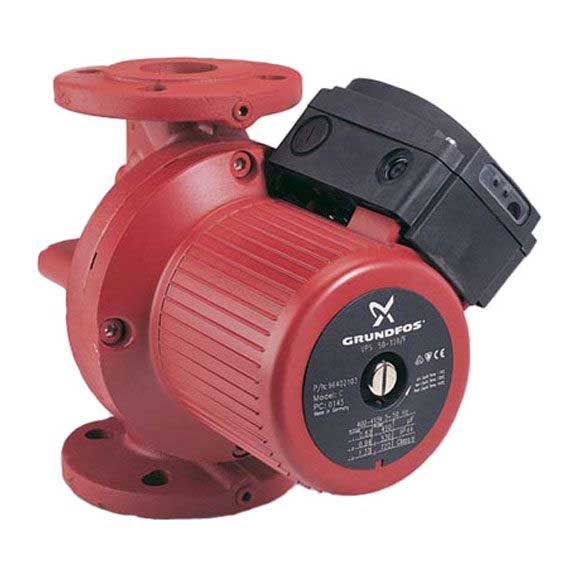

Grundfos 96402711 UPS32-80/2 2-Speed Booster Pump

Product Description

The Grundfos UPS32-80/2 provides reliable circulation of liquids in closed loop heating systems. This efficient cast iron circulator pump is powered by a robust 1/2 HP motor and operates at a voltage of 460V and a frequency of 60 Hz, providing optimal performance in both commercial and residential applications.

• Efficient three-phase operation with built-in thermal protection.
• Flange connection sizes include 3/4 inch, 1 inch, 1-1/4 inches, and 1-1/2 inches.
• 2-speed settings to accommodate varying system demands.

Product Highlights

This pump integrates a canned rotor design, eliminating the need for a shaft seal which enhances its durability and minimizes maintenance requirements. The motor and pump form an integral unit, ensuring quiet operation and extended lifespan.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96402711

Technical Specifications

• Motor Voltage: 460V
• Motor Phase: 3 Ph
• Power Output: 1/2 HP
• Operational Speeds: 2-Speed
• Maximum Temperature: 230 degrees Fahrenheit
• Maximum Pressure: 145 PSI
• Connection Type: Flanged
• Material: Cast Iron
