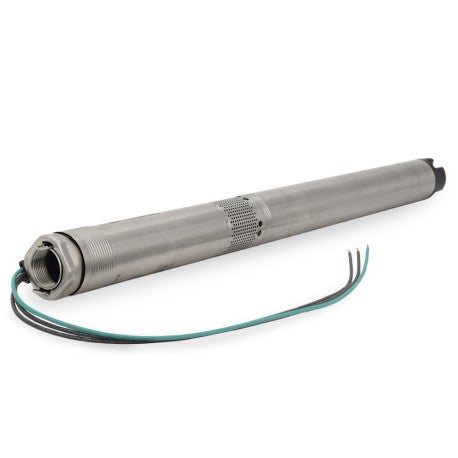

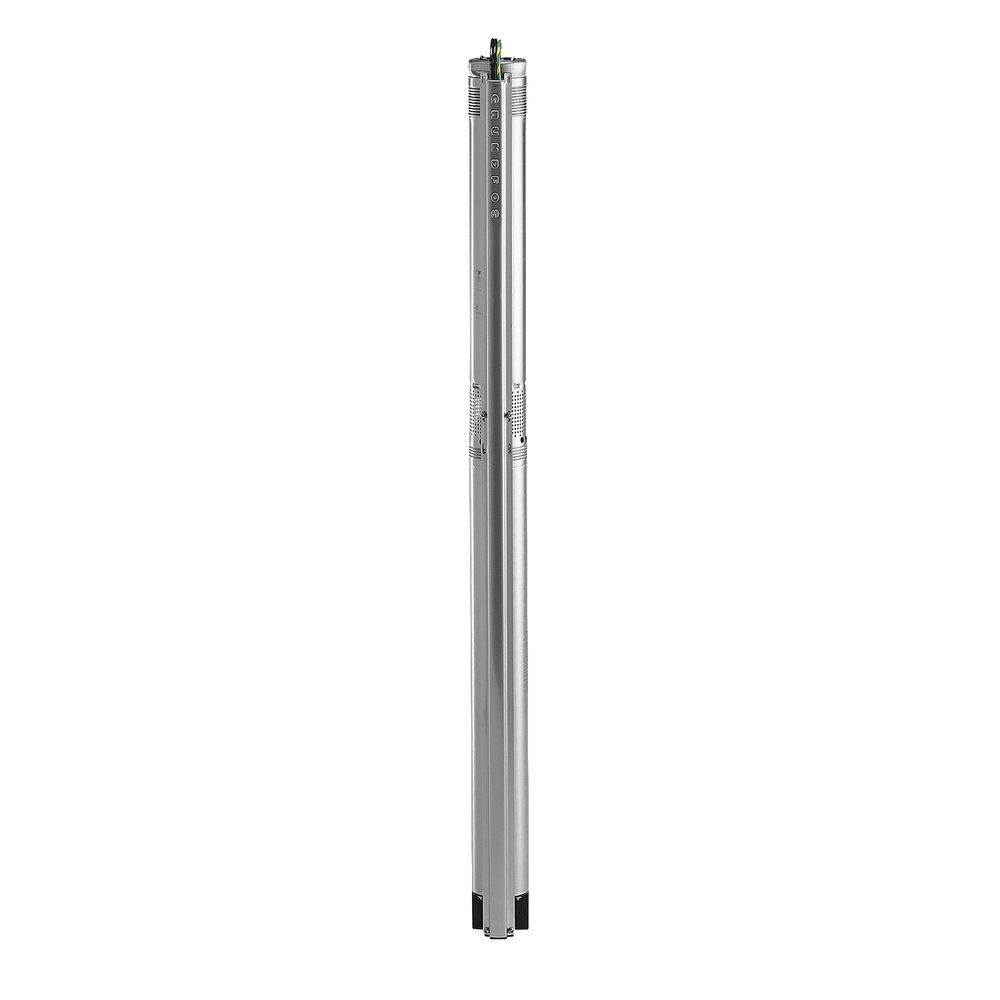

Grundfos 96160192 sqe series 3/4 hp 15 gpm 230v 2-wire submersible well pump 3 inch

Product Description

The GRUNDFOS 96160192 is a 3/4 HP 230V 2-wire submersible well pump from the SQE Series, designed for deep well applications. It features a wide supply voltage range with auto restart and built-in protection against dry-running, motor overload, and high/low-voltage. Its 3-inch diameter allows for easy handling and installation, while electronic controls enable communication with Grundfos CU 300 and CU 301 units for constant pressure.

• Wide supply voltage range with auto restart.
• Built-in protection against dry-running, motor overload, and high/low-voltage.
• Only 3 inches in diameter - easy to handle and install.

Product Highlights

Permanent magnet motor with high energy efficiency and built-in motor soft-start reduces the start-up current.

Product Information

Standard Information

• Brand: GRUNDFOS
• Manufacturer Part Number: 96160192
• Country of Origin: USA

Technical Specifications

• Brand: Grundfos
• MPN: 96160192
• Horsepower: 3/4 HP
• Flow Rate: 15 GPM
• Voltage: 230V
• Wire Type: 2-Wire
• Product Type: Submersible Well Pump
• Diameter: 3 inches
• Model: 15SQE07-180
• Phase: Single Phase
• Frequency: 60 Hz
• Amperage: 8.4 Amps
• Max Flow Rate: 19.5 GPM
• Rated Flow Rate: 13.2 GPM
• Max Head: ~300 ft
• Rated Head: 229.7 ft
• Discharge Connection: 1-1/4" NPT
• Max Operating Pressure: 217 psi
• Water Temperature Range: 34°F - 86°F
• Water pH Range: 5 - 9 pH
• Pump Stages: 5
• Motor Type: MSE3 Type
• Motor Speed: 3600-10700 rpm
• Min Well Diameter: 3" or larger boreholes
• Pump Material: 304 Stainless Steel
• Enclosure Class: IP68
• Power Output: 1.15KW
• Operating Voltage Range: 200-240V
• Series: SQE-SERIES
• Bearing Type: Thrust
• Impeller Type: Floating
• Max Suction Lift: 13.1 ft
