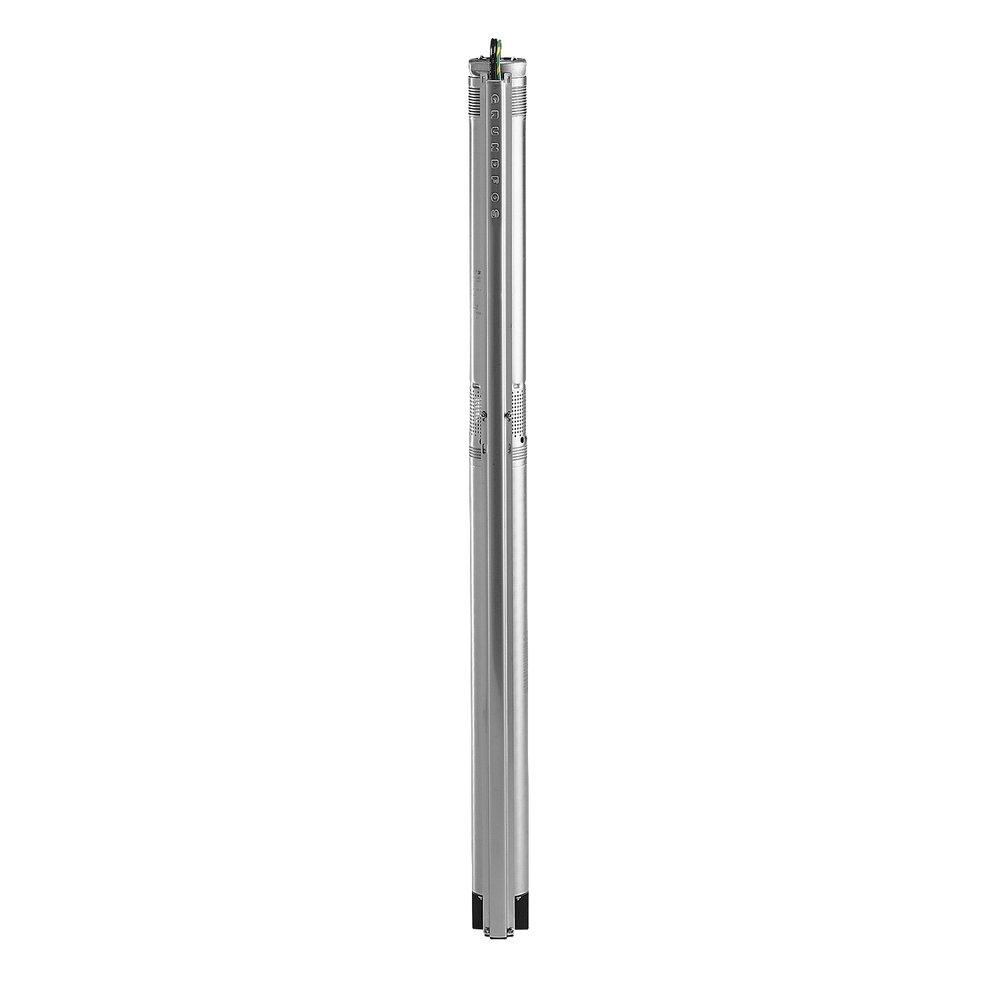

Grundfos 96160183 SQE Series 1/2 HP 10 GPM 240V 2-Wire Submersible Well Pump

Product Description

The Grundfos SQE Series 1/2 HP 10 GPM 240V 2-Wire Submersible Well Pump with MPN 96160183 is designed for efficient water delivery from wells. This pump offers an excellent flow rate paired with sturdy construction. It suits various well applications, ensuring reliable performance.

• Wide supply voltage range with auto restart
• Built-in protection against dry-running and motor overload
• Only three inches in diameter, making it easy to handle and install

Product Highlights

Features advanced electronic control for enhanced operation and energy efficiency.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96160183

Technical Specifications

• Motor Type: Permanent magnet motor
• Maximum Flow Rate: 10 GPM
• Power Supply: 240V
• Control Compatibility: Grundfos CU 300 and CU 301
• Diameter: 3 inches
• Protection Features: Overload, high/low voltage, dry running
• Soft Start: Yes
• Robustness: High resistance to sand
