Product Description

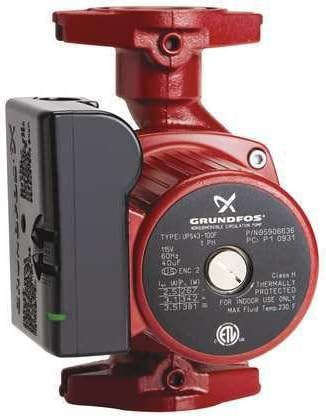

The Grundfos UPS43-100F 95906637 is a high-efficiency circulator pump designed for heating applications. It operates at 230 volts and features a three-speed motor. The pump is ideal for both open and closed systems, offering reliable performance for residential and commercial heating systems. This model incorporates a canned rotor design which ensures durability and low maintenance.
- Adjustable three-speed settings for application-specific performance.
- Built with cast iron for strength and longevity.
- Maximum head capability of thirty point eight four feet.
Product Highlights
This circulator pump reduces installation times and enhances efficiency, making it a suitable choice for contractors and technicians.
Product Information
Standard Information
-
Brand: Grundfos
-
MPN: 95906637
Technical Specifications
-
Power Rating: 370 W
-
Voltage Rating: 230 VAC
-
Amperage Rating: 1.2 to 1.7 A
-
Frequency Rating: 60 Hz
-

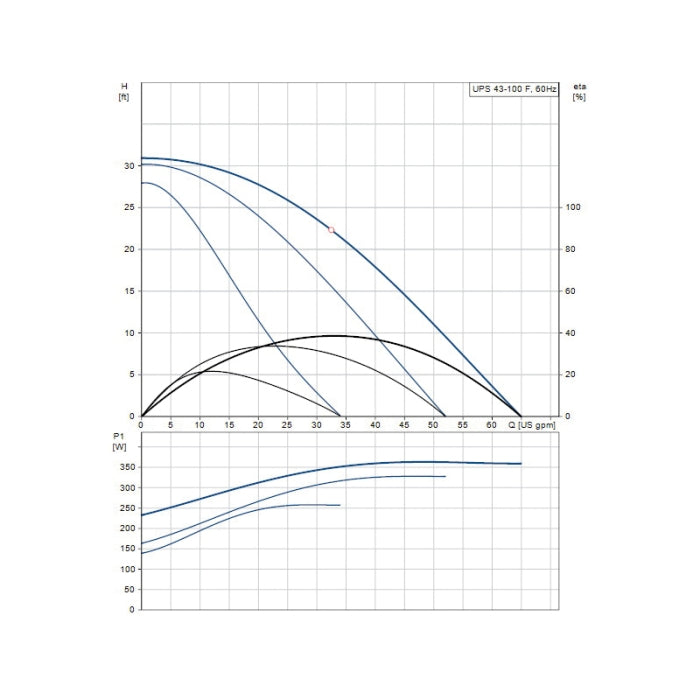

Maximum Head: 30.84 ft
-
Maximum Pressure: 145 psi
-
Temperature Rating: 140 degrees F
-
Bearing Type: Ceramic Radial/Carbon Thrust
-
Impeller Type: Composite PES
-
Dimensions: 7-3/8 in W x 8-1/2 in H
-
Type: Canned Rotor
-
Phase: 1 ph
