Product Description

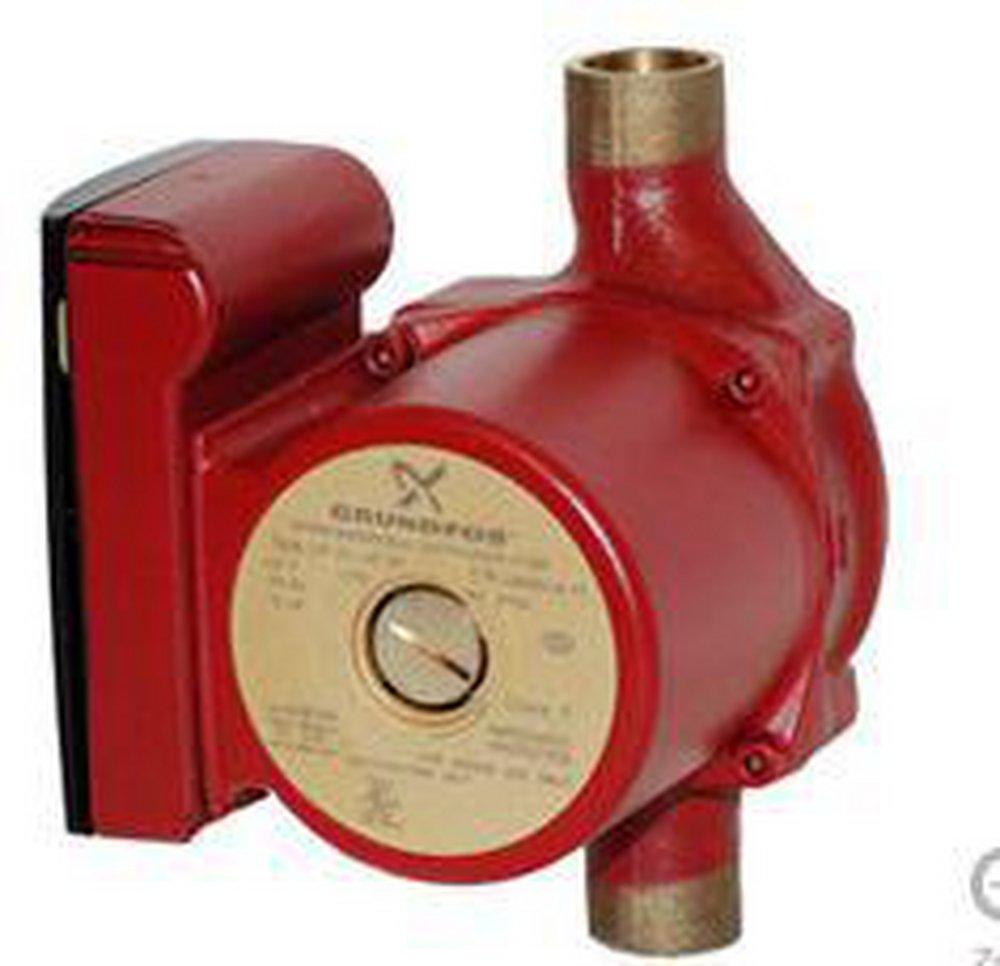

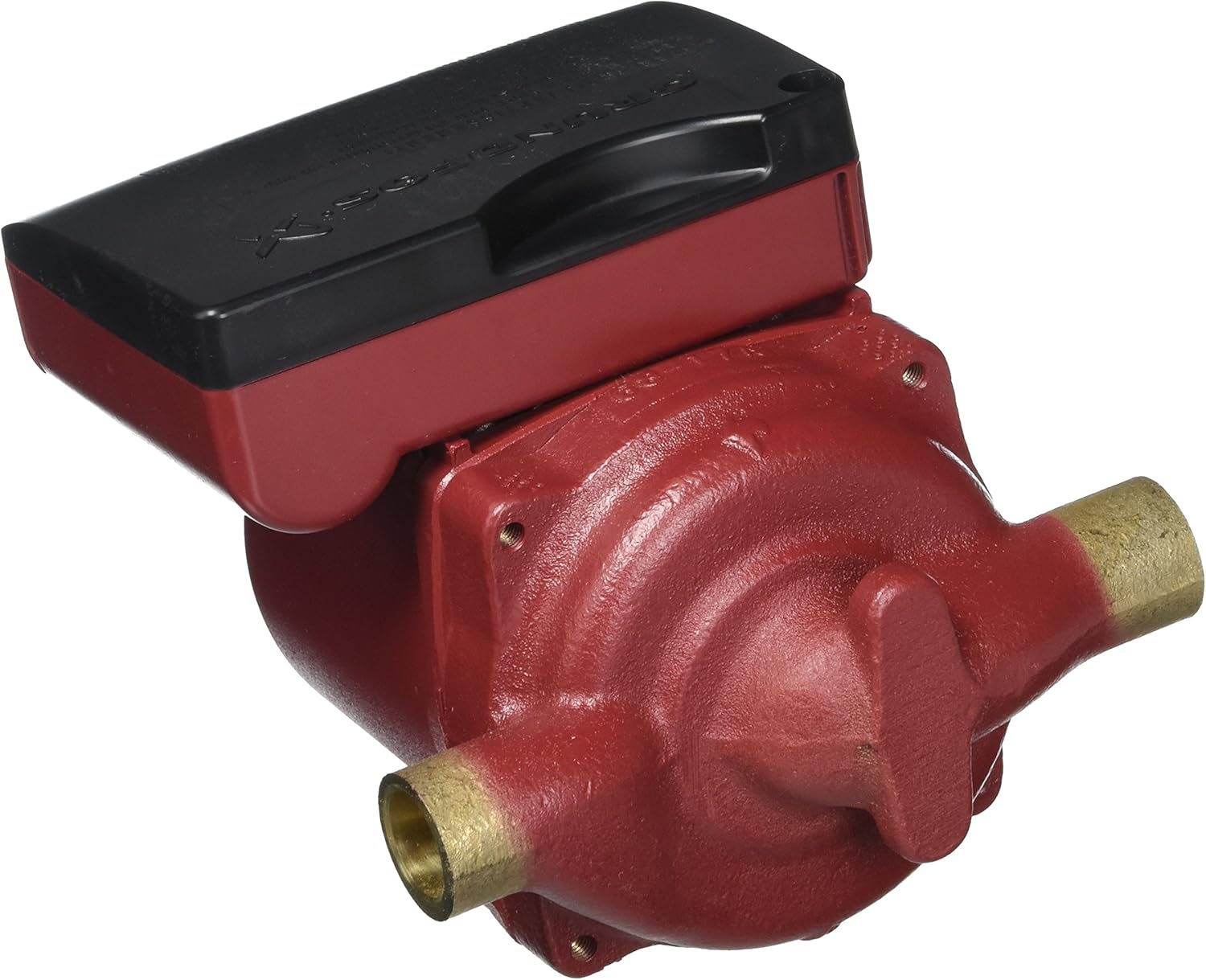

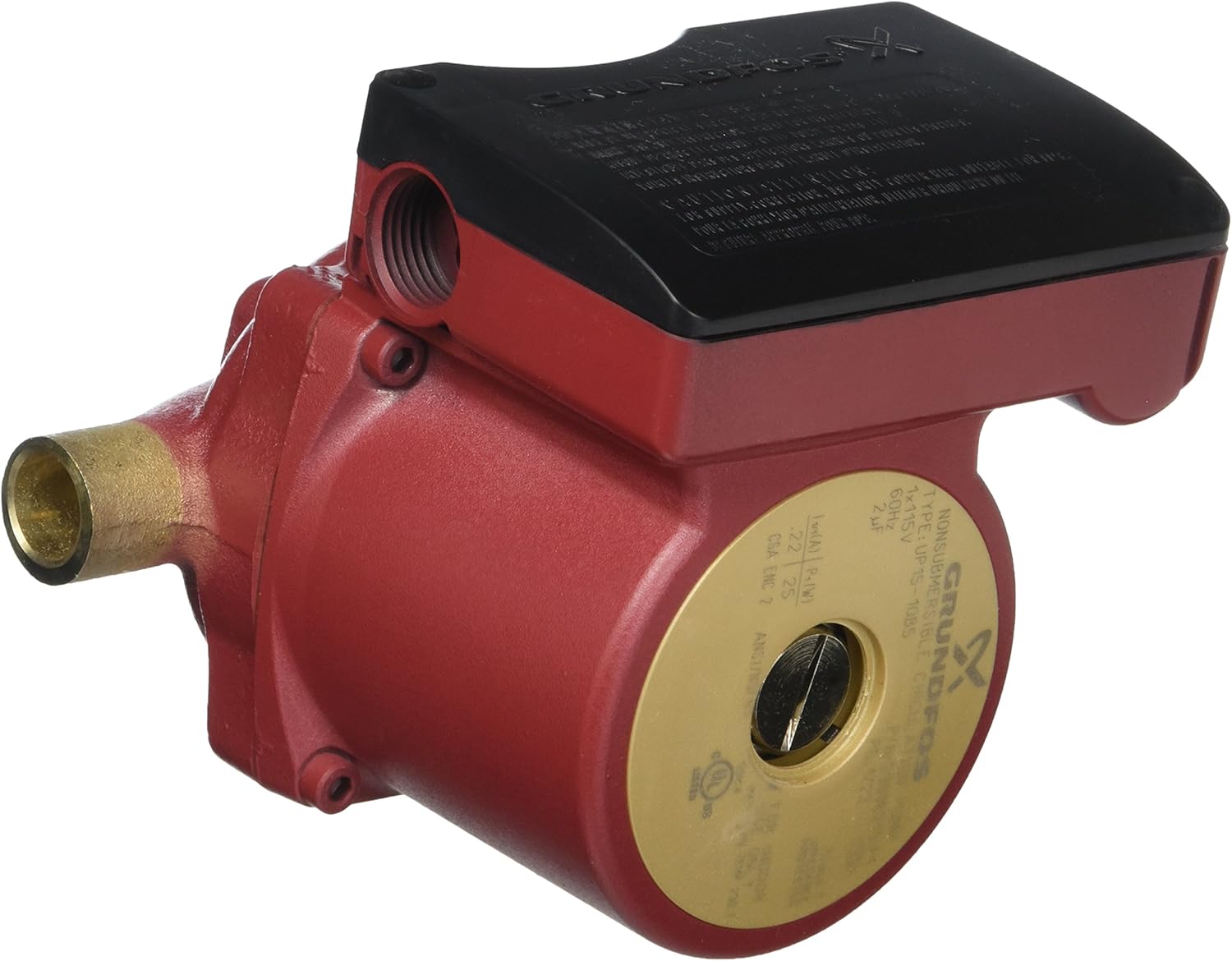

The Grundfos UP15-10B5 model, a robust 1/25 horsepower, 115-volt bronze circulator pump, is engineered for efficiency and durability in residential and commercial settings. Ideal for a variety of applications including heating systems and hot water recirculation.
- Durable bronze construction ensures long service life and resistance to corrosion.
- Simple sweat connections facilitate quick installation without the need for additional flanges.
- Energy-efficient design contributes to lower operational costs.
Product Highlights
This pump features a compact design with a powerful motor that supports various fluid circulation needs. It operates quietly and includes a built-in impeller made of composite PES material, which further enhances its efficiency and durability.
Product Information
Technical Specifications
-
Flow Rate: 2.75 gallons per minute.
-
Maximum Head: 6.234 feet.
-
Power Consumption: 25 watts.
-
Electrical Specifications: 115 volts AC, 0.22 amps, 60 Hz.
-
Maximum Operating Pressure: 145 psi.
-
Temperature Tolerance: Up to 140 degrees Fahrenheit.
-
Inlet/Outlet Size: 1/2 inch C.
-
Dimensions: 4-11/16 inches wide by 5 inches high.
