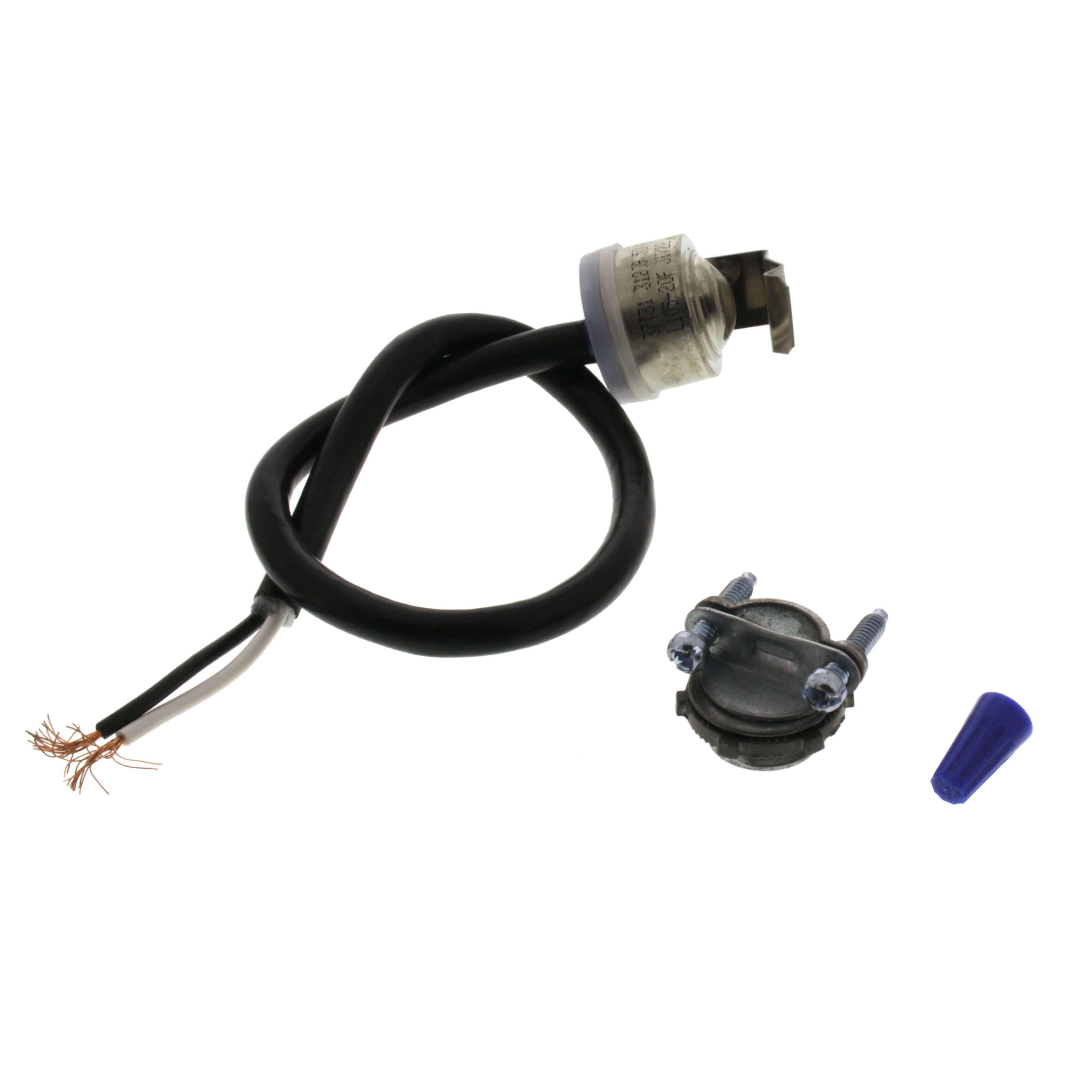

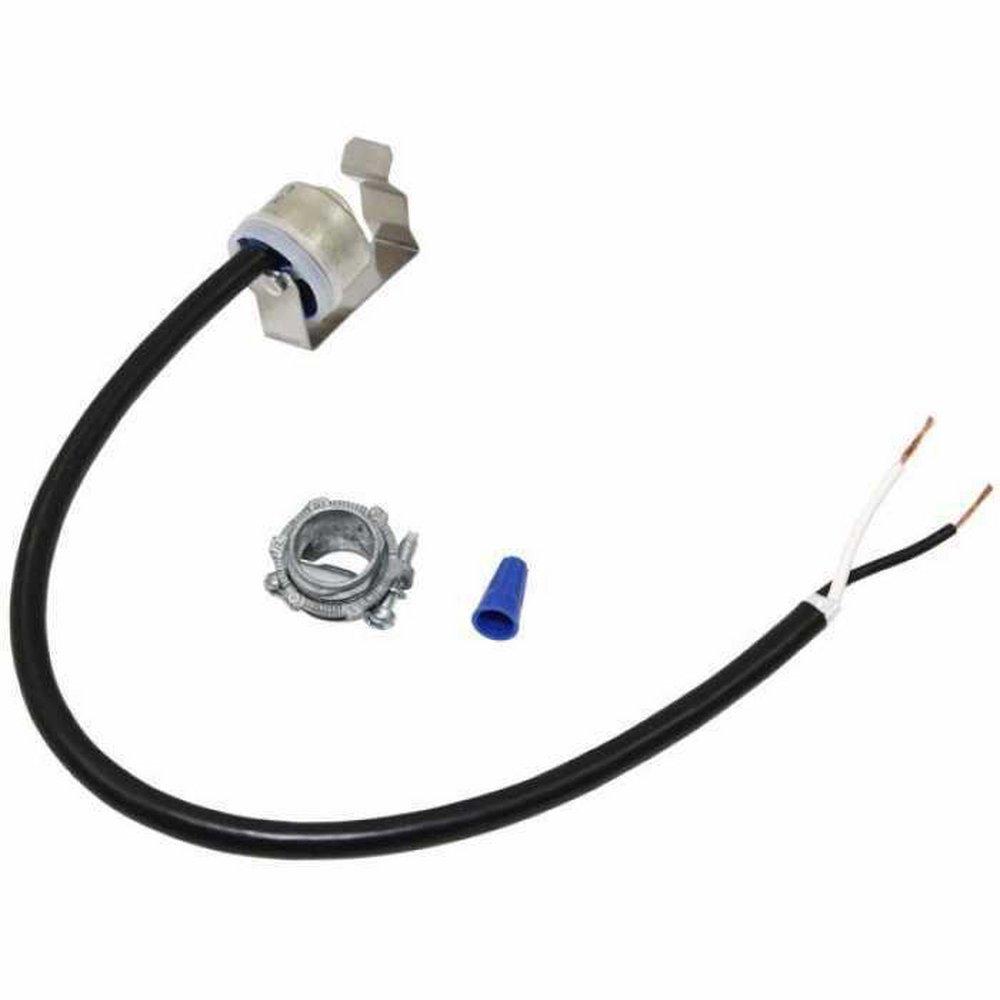

Grundfos 595443 Aquastat Thermostat Control Kit 85-105 Degrees F

Product Description

The Grundfos Aquastat Thermostat Control Kit, MPN 595443, is designed for use with UP series circulators. This control kit operates effectively between the temperatures of 85 degrees Fahrenheit and 105 degrees Fahrenheit. It ensures that the circulator switches on at the lower temperature and turns off when the upper limit is reached, supporting efficient system operation.

• Clip-on mount for five-eighths inch outer diameter system piping
• Temperature range: 85 to 105 degrees Fahrenheit
• Environmentally sealed enclosure

Product Highlights

This aquastat kit is essential for maintaining optimal performance of circulating pumps within heating systems.

Product Information

Standard Information

• Compatible With: UP series circulators
• MPN: 595443

Technical Specifications

• Temperature Range: 85 to 105 degrees Fahrenheit
• Control Type: Bi-metallic disc, snap acting
• Electrical Ratings: 10 A at 120 VAC, 5 A at 240 VAC
• Cable Type: PVC jacketed
• Mounting Type: Clip-on
• Strip Length: half inch (12.7 mm)
• Wire Insulation: Black insulation with silicon or epoxy overmold
• Mfg Standards: CSA Certified, RJ Listed
