Grundfos 519601 3/4 NPT Cast Iron Flange Set for Circulator Pump

Product Description

The Grundfos 519601 is a flange set designed for use with circulator pumps. This set includes components that ensure secure connections for efficient water flow. The product features:

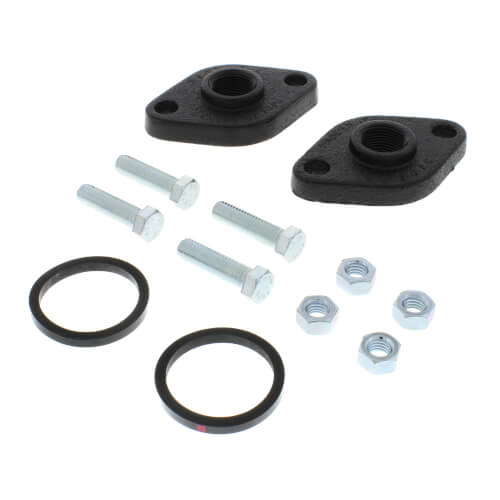

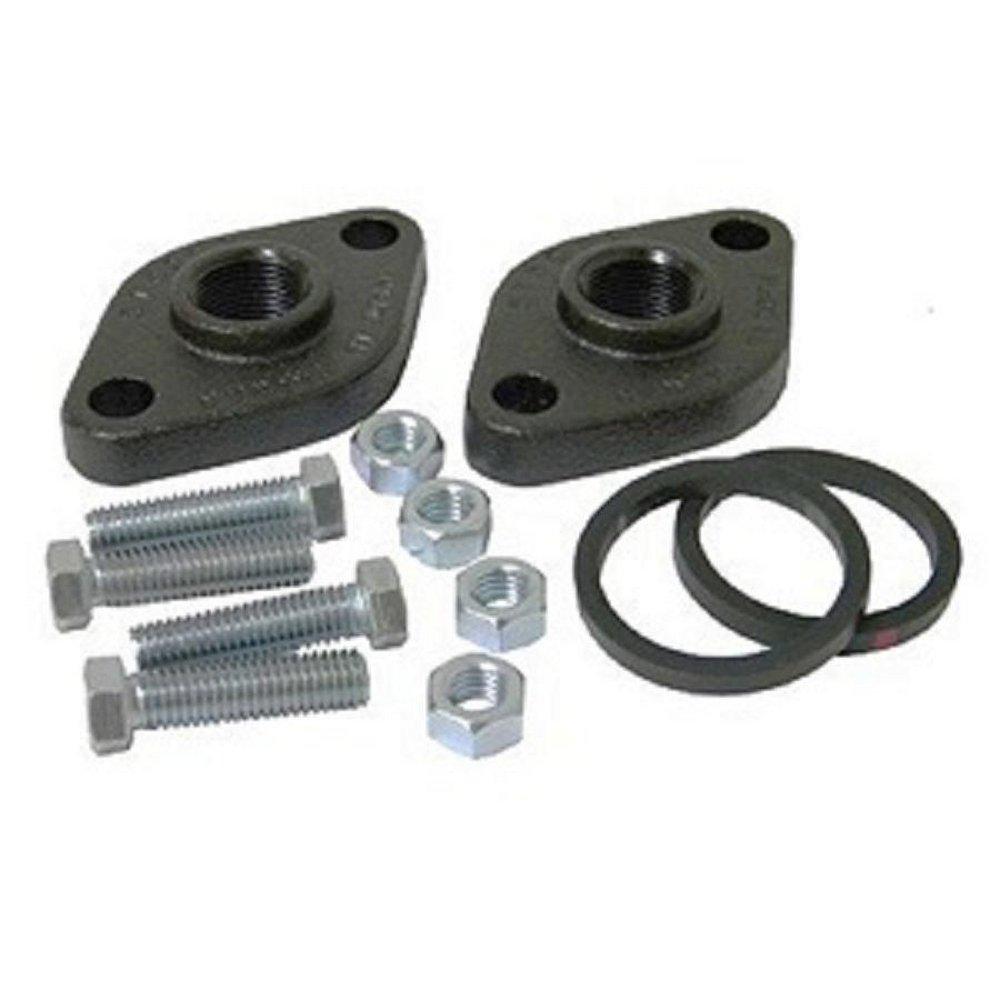

• Includes (2) flanges, (2) gaskets, and (4) nuts and bolts
• Constructed from durable cast iron
• Designed for 3/4 inch NPT connections

Product Highlights

The Grundfos 519601 flange set is essential for creating reliable connections in both residential and commercial plumbing applications. It is compatible with various circulator pumps and is ideal for non-potable water use.

Product Information

Standard Information

• Manufacturer: Grundfos Pumps
• UPC: 5700390260033

Technical Specifications

• Item: Flange Set
• Material: Cast Iron
• Pipe Size: 3/4 inch NPT
• Includes: (2) Flanges, (2) Gaskets, (4) Bolts with Nuts
• Dimensions: Length - 4-1/4 inches, Height - 2-3/4 inches

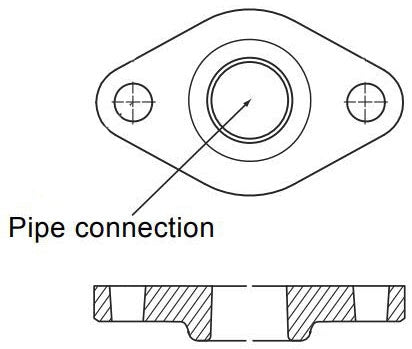

• Other Physical Dimensions: 1/2 inch bolt hole diameter, 3.13 inch bolt circle diameter, 3/4 inch length through hub, 1/2 inch thickness
