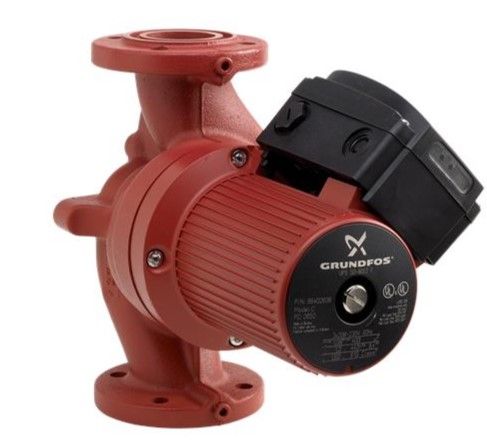

Grundfos 96402694 UPS32-40/4 1/3 HP 230v Circulating Pump

Product Description

The Grundfos UPS32-40/4 with MPN 96402694 is a cast iron circulator pump designed for hydronic heating in closed loop systems. This pump features a 1/3 HP, three-speed, 230v motor which operates in a single-phase. The wet-rotor pump includes flange gaskets, though flanges are available separately in 1-1/2 inches.

• Used in hydronic heating systems.
• Three-speed 230v motor.
• Includes flange gaskets.

Product Highlights

The Grundfos UPS32-40/4 pump is ideal for residential and commercial heating applications. Its design ensures long life and quiet operation. The canned rotor and lubricated pump bearings make maintenance minimal.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96402694
• Model: UPS32-40/4
• Category: Circulating Pump

Technical Specifications

• Grundfos Series: UPS Series
• Pump Construction: Cast Iron-CI
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection Size: 1-1/2 inches
• Pump Connection: Flanged
• Motor HP: 1/3 HP
• Motor RPM: 3-Speed
• Motor Voltage: 230V
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Max Temp: 230 degrees Fahrenheit
• Potable Water: No
• Flow Rate: 21.9 GPM
