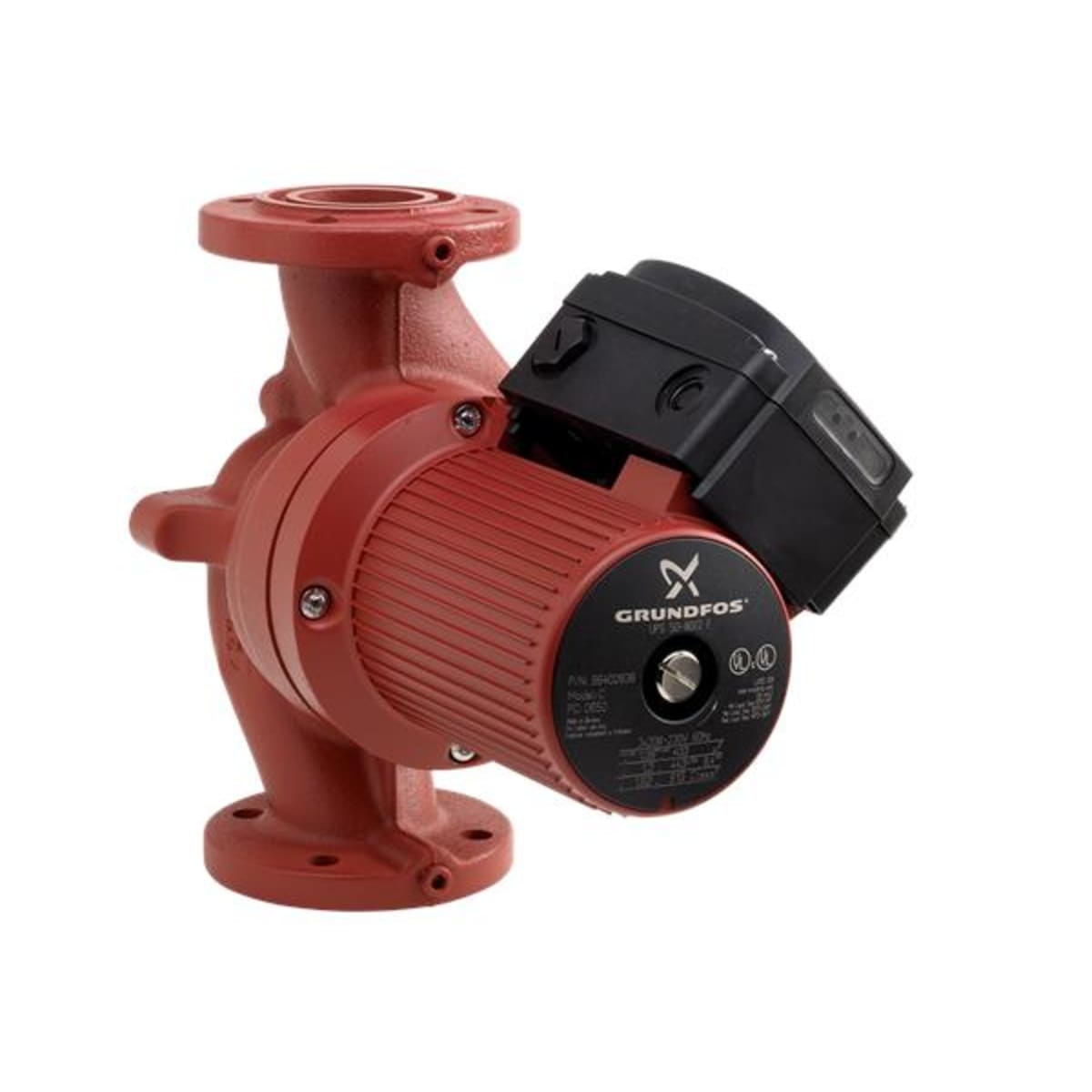

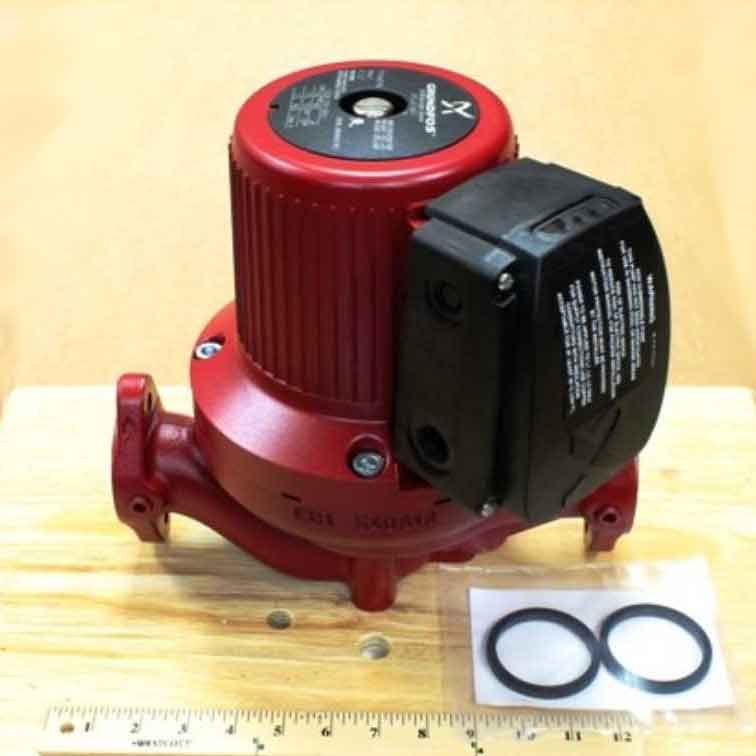

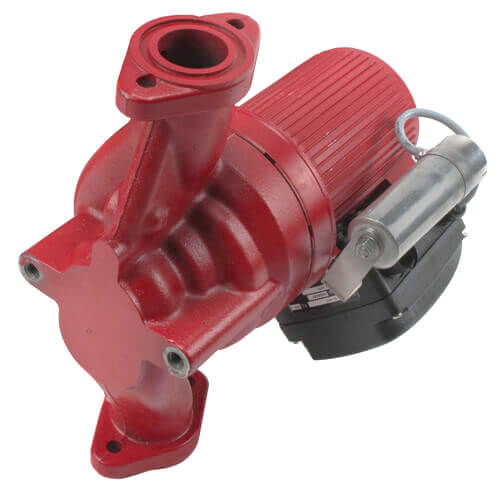

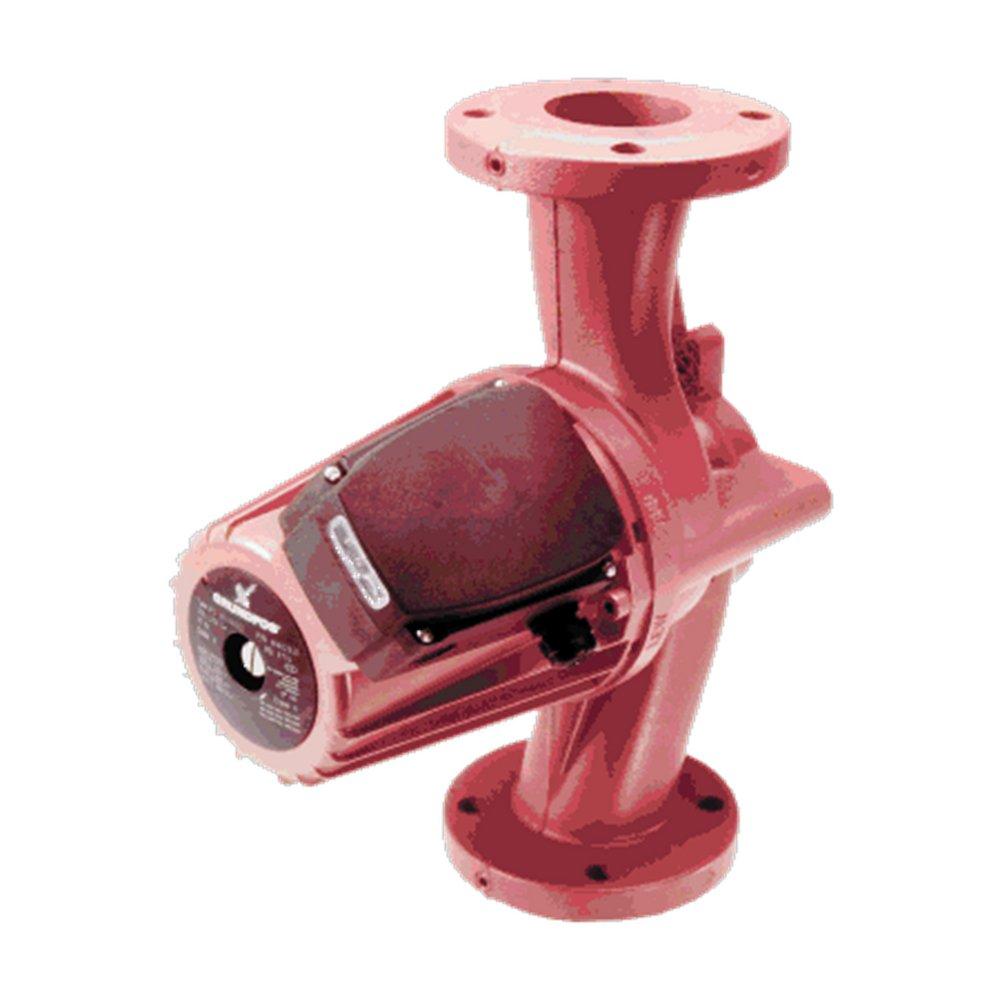

Grundfos 96402784 3/4 HP 208/230V Cast Iron Circulator Pump

Product Description

The Grundfos Cast Iron Circulator Pump, model 96402784, is designed for reliable liquid circulation in heating and cooling systems. This pump operates on three speeds and is powered by a three-phase motor at 208 to 230 volts. Ideal for residential and commercial applications, it helps maintain efficient heating and cooling.

• Quiet operation with built-in thermal overload protection
• Corrosion-resistant impeller improves durability
• Maintenance-free with a two-year parts warranty

Product Highlights

This pump is effective for hydronic heating and can also be used in closed-loop cooling systems.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96402784

Technical Specifications

• Power Rating: 3/4 HP
• Voltage Rating: 208 to 230 VAC
• Phase: 3 ph
• Frequency Rating: 60 Hz
• Maximum Head: 52.5 ft
• Maximum Pressure: 145 psi
• Motor Speed: 3450 rpm
• Impeller Type: 304 Stainless Steel
• Temperature Rating: 140 deg F
• Enclosure Type: IPX4D
• Motor Protection: Built-in thermal switch
