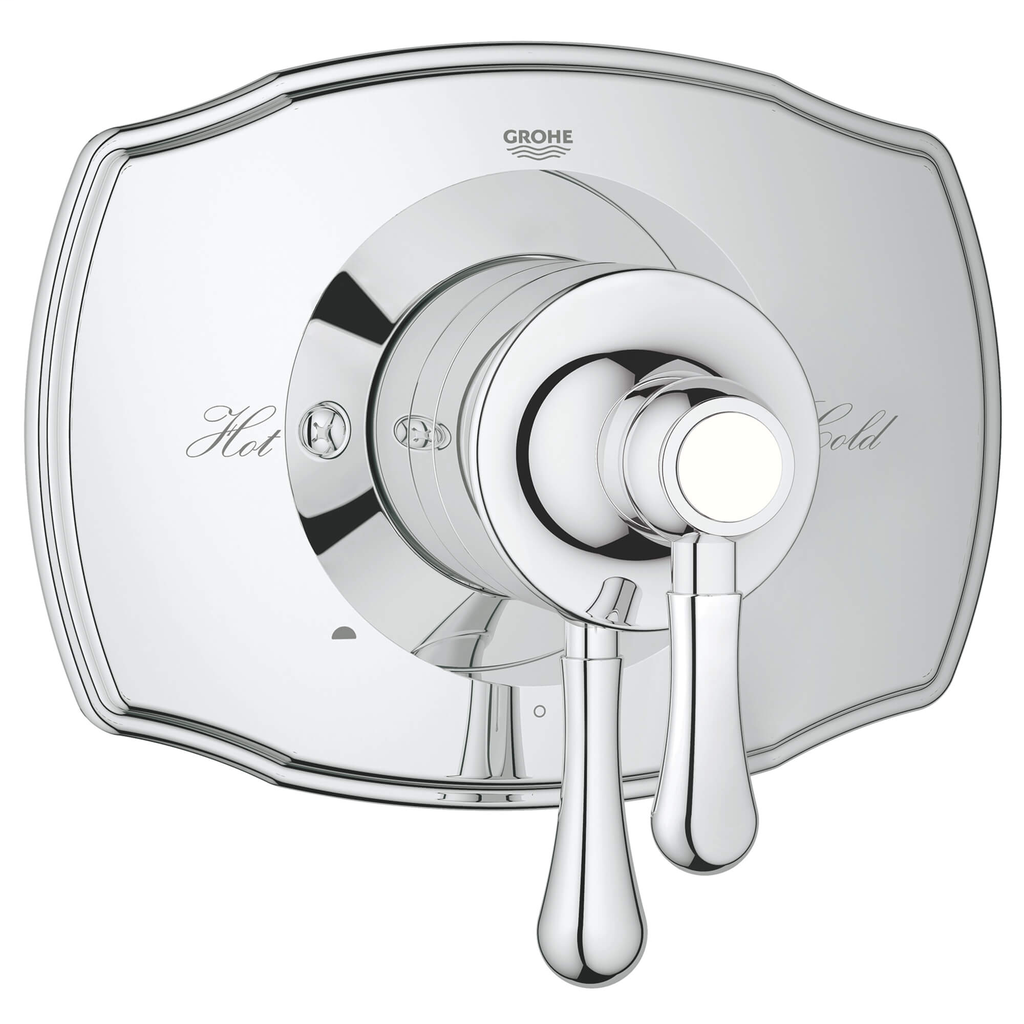

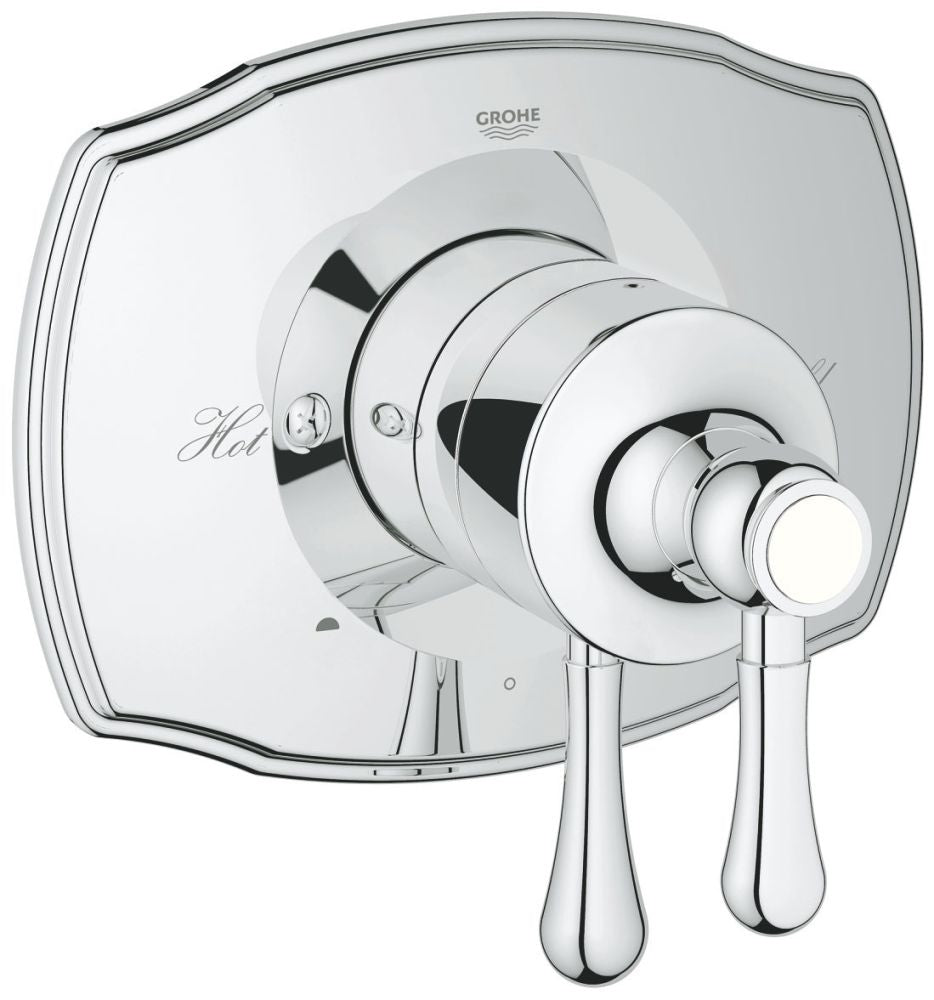

Grohe 19844000 GrohTherm 2000 Authentic Dual Function Trim with Control Module (7-1/2 in W x 4-7/8 to 6-1/16 in D x 6-3/4 in H)

Product Description

Grohe 19844000 is a GrohTherm 2000 Authentic dual-function pressure balance trim with an integrated volume control module for tub/shower installations. It includes two handles and a two-function selector to supply a non-diverter tub spout or two shower outlets, with trim dimensions of 7-1/2 in W x 4-7/8 to 6-1/16 in D x 6-3/4 in H and flow rates of 2.9 GPM (top) and 5.3 GPM (bottom) at 45 PSI.

• Dual-function pressure balance trim with integrated volume control module and two handles
• Flow rates: 2.9 GPM at 45 PSI (top outlet) and 5.3 GPM at 45 PSI (bottom outlet)
• Meets ADA, ASME A112.18.1/CSA B125.1, ICC/ANSI A117.1, cUPC, and Energy Policy Act standards

Product Highlights

Dual-function GrohTherm 2000 trim with integrated volume control, two-outlet selector, and specified flow rates for tub/shower applications.

Product Information

Standard Information

• Brand: GROHE
• Manufacturer Part Number: 19844000
• Country of Origin: Import

Technical Specifications

• Brand: GROHE
• Manufacturer Part Number: 19844000
• Model: GrohTherm 2000 Authentic
• Product Type: Dual function pressure balance trim with control module
• Number of Handles: 2
• Integrated Volume Control: Yes
• Diverter / Outlet Configuration: Two-function selector (supports non-diverter tub spout or two shower outlets)
• Flow Rate (Top Outlet): 2.9 GPM at 45 PSI
• Flow Rate (Bottom Outlet): 5.3 GPM at 45 PSI
• Trim Size / Dimensions: 7.5 in W x 4.875–6.0625 in D x 6.75 in H
• Applicable Standards / Certifications: ADA; ASME A112.18.1/CSA B125.1; ICC/ANSI A117.1; cUPC; Energy Policy Act
• Valve / Cartridge Type: 1222 pressure balanced
• Operation / Handle Type: 1 axis lever
• Mounting Type: Wall
• Material: Brass
• Finish: GROHE StarLight polished chrome
• Requires Rough-In Box: GrohFlex universal rough-in box (35 026 000) sold separately
• Application: For shower/tubs with non-diverter tub spout or for two shower outlet applications
• UPC: 5176900277
• Individual Item Weight: 5.0 lb
