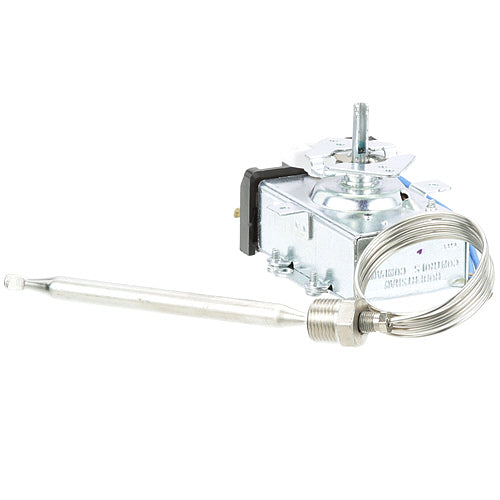

Thermostat - D1/D18 for Grindmaster L029C

Product Description

This item for Grindmaster L029C is a thermostat designed for D1 and D18 applications. It operates within a temperature range of one hundred to two hundred fifty degrees and features a bulb measuring three eighths inch by four and a half inches.

• Supports a maximum rating of ten amps at four hundred eighty volts per pole.
• Ideal for high current applications.
• Compatible with pilot light #38-1068.

Product Highlights

This thermostat includes multiple load ratings and is suitable for use in applications needing high power and reliability.

Product Information

Standard Information

• Type: D1/D18
• Temperature Range: 100-250 degrees

Technical Specifications

• Bulb Size: 3/8 x 4-1/2 inches
• Mounting: Front ears
• Current Rating: 10 Amp 480V per pole resistive load
• Dual Pole Rating: 21 Amp 480V
• 120/277V Rating: 30 Amp per pole
• Full Load Amp Rating: 7.2 at 120-277V
• Locked Rotor Amps: 42 at 120-277V
• Pilot Duty: 250VA at 120-277V
