Greenlee PDMM-20 Digital Pocket Multimeter 450 VAC/VDC 6 MOhm

Product Description

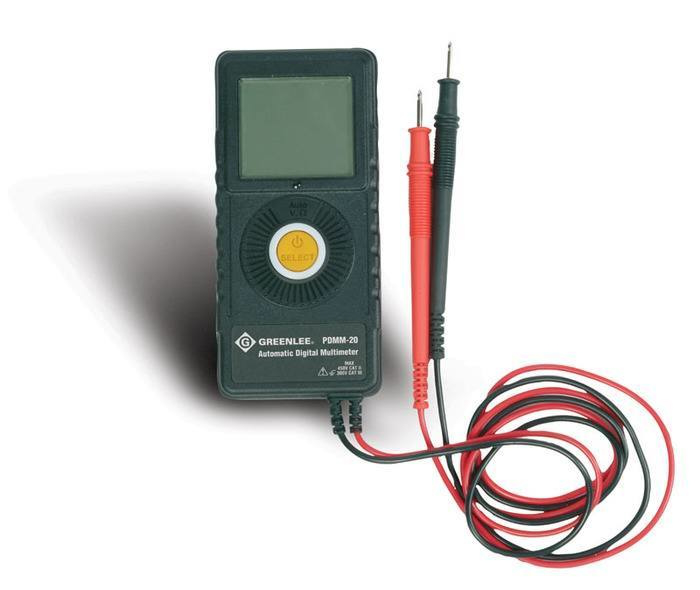

The Greenlee PDMM-20 is a digital pocket multimeter with capabilities for measuring voltage, current, resistance, and capacitance. This device functions effectively in both AC and DC environments up to 450 volts. It offers automatic ranging and auto-select mode for user convenience, making it suitable for quick measurements on the job.

• Auto-select mode for straightforward usage
• Low impedance to avoid incorrect voltage readings
• Includes a carrying case and a battery

Product Highlights

The multimeter includes a high-resolution LCD display, intelligent auto-off for battery conservation, and a low battery indicator to maintain performance.

Product Information

Standard Information

• Manufacturer: Greenlee
• Country of Origin: Taiwan

Technical Specifications

• Catalog Number: PDMM-20
• Battery Type: 3 V Battery (CR2032)
• Display Type: LCD
• Maximum AC Voltage Measurement: 450 V
• Maximum DC Voltage Measurement: 450 V
• Resistance Measurement: 6 MOhm
• Capacitance Measurement: 100 μF
• Safety Rating: CAT II 450 V; CAT III 300 V
• Functions Measured: AC Voltage; DC Voltage; Resistance; Capacitance; Frequency
