Greenlee DTAP10-32 Drill/Tap Bit 10-32 - Replacement MPN

Product Description

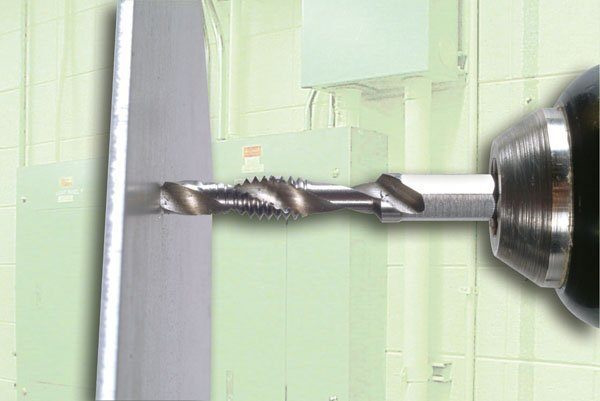

The Greenlee DTAP10-32 is a combination drill and tap bit designed for efficient metalworking. This bit measures one and one-quarter inches in drill length and caters to the #10-32 thread size. Constructed from high-speed steel, the tool offers durability and high performance for drilling and tapping operations.

• Completes drilling, tapping, and deburring in a single process.
• Back taper prevents thread damage from over-drilling.
• Hex shank design ensures a secure fit with power drills.

Product Highlights

This bit is optimized for tapping metal up to ten gauge and includes a quick-change adapter for seamless operation, suitable for both metric and standard kits.

Product Information

Standard Information

• Brand: Greenlee
• MPN: DTAP10-32

Technical Specifications

• Material: High-Speed Steel
• Drill Size: 1/8 in
• Shank Type: Hex
• Drill Length: 1-1/4 in
• Overall Length: 2-1/4 in
• Shank Diameter: 1/4 in
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Thread Size: #10-32 NF
• Class of Fit: 2B
• Measurement System: Imperial
