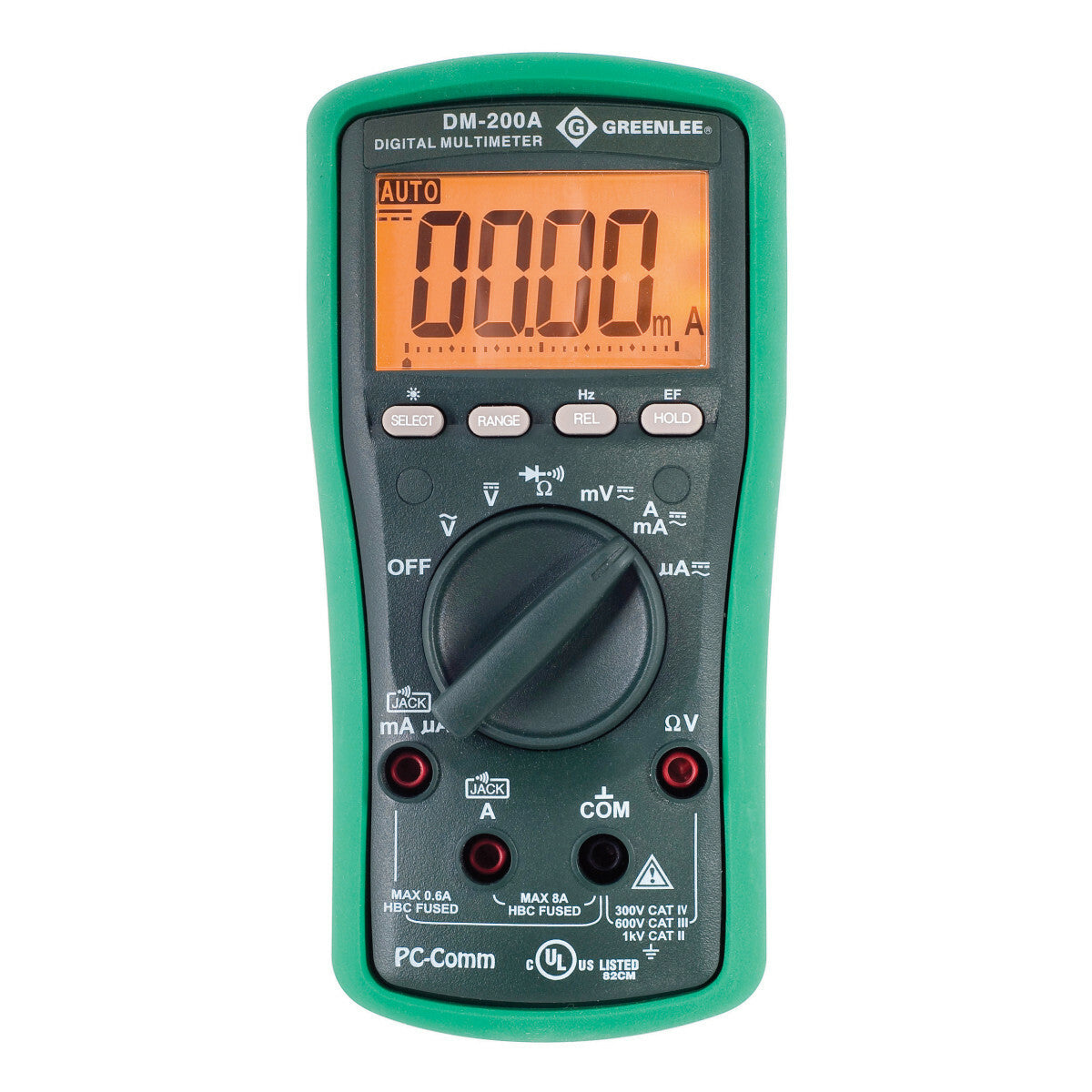

Greenlee DM-200A ESM Series Digital Multimeters 1000V AC/DC Replacement MPN

Product Description

The Greenlee DM-200A ESM Series digital multimeter offers essential measuring functions for professional use. This device measures voltage, current, resistance, and frequency. It is equipped with a backlit LCD display that supports a six thousand count reading. The multimeter features two voltage detection modes: non-contact and using a single test lead. The BeepJack technology alerts the user when test leads are incorrectly inserted in the current measurement terminals. Automatic and manual range selection facilitates ease of use, while the data hold feature helps capture and analyze measurements.

• Measures voltage, current, resistance, frequency
• Tests continuity and diodes
• Backlit LCD display with 6000 count

Product Highlights

This multimeter excels in safety with a CAT IV rating up to three hundred volts, providing reliable performance in various environments. It operates on two one point five volt AAA batteries and has a temperature rating from negative fifty-eight to one thousand eight hundred thirty-two degrees Fahrenheit. The device is also compliant with CE regulations, ensuring it meets industry standards.

Product Information

Standard Information

• Catalog Number: DM-200A
• Manufacturer: Greenlee

Technical Specifications

• Measuring Range: 60 mV to 1000 VAC/VDC, 600 mA to 10 A
• Resistance: 600 Ohm to 60 MOhm
• Capacitance: 60/600 nF, 6/60/600/3000 uF
• Safety Rating: CAT IV 300 VAC, CAT III 600 VAC, CAT II 1000 VAC
• Temperature Rating: -58 to 1832 degrees Fahrenheit
• Battery Type: (2) 1.5 V AAA
• Display Type: Backlit LCD with 6000 count
• Standards: cULus Listed, CE Certified
