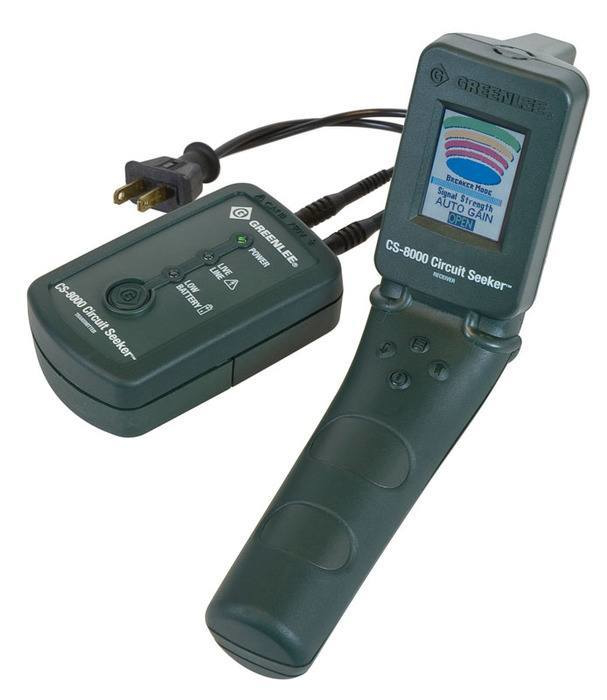

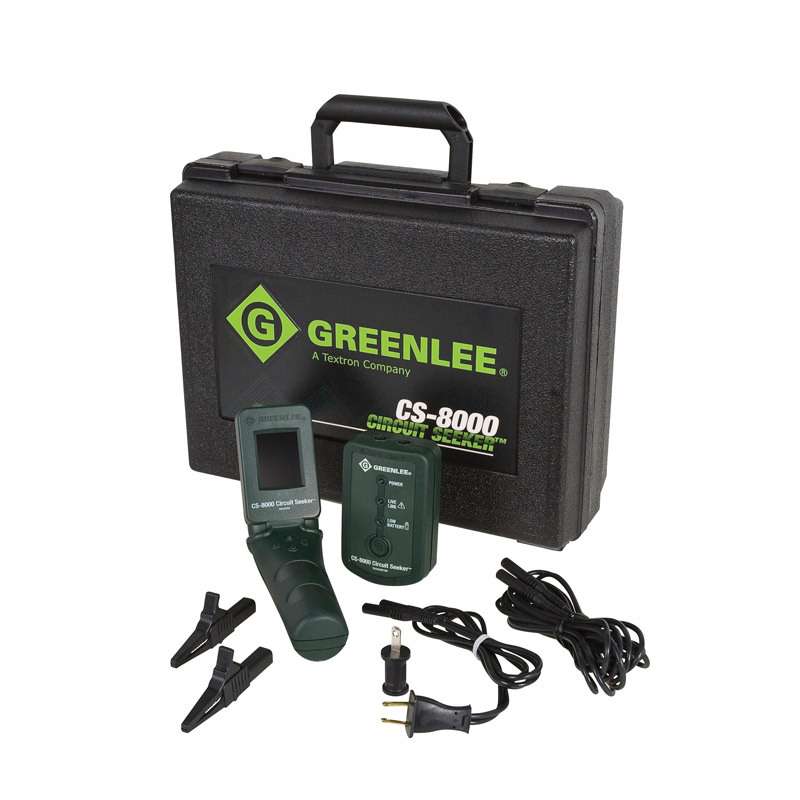

Greenlee CS-8000 Circuit Seeker Circuit Tracer

Product Description

The Greenlee CS-8000 is a circuit seeker. It features advanced patented non-directional sensing technology allowing for accurate tracing and locating. The ergonomic receiver is equipped with a full-color graphical LCD for clear information display. The device provides graphics and audible signals for easy tracing feedback. It effectively traces concealed wiring, locates junction boxes, and identifies breakers in live or open circuits. It can locate blown fuses and identify shorts or breaks in conductors.

• Supports user-selectable automatic or manual gain control for ease of use.
• Can function on GFCI protected circuits.
• Includes an automatic backlight on the receiver to maximize battery life.

Product Highlights

This device supports transmitter-to-receiver distances up to four miles for closed circuit tracing and comes with a lifetime limited warranty.

Product Information

Standard Information

• Brand: Greenlee
• Model Number: CS-8000

Technical Specifications

• Weight: 4.3 lb
• Voltage Capacity: 0 - 750V AC/DC
• Display Type: Full-Color Graphical LCD
• Operating Frequency: 15.15 kHz
• Applications: For use on GFCI protected circuits
• Country of Origin: USA
