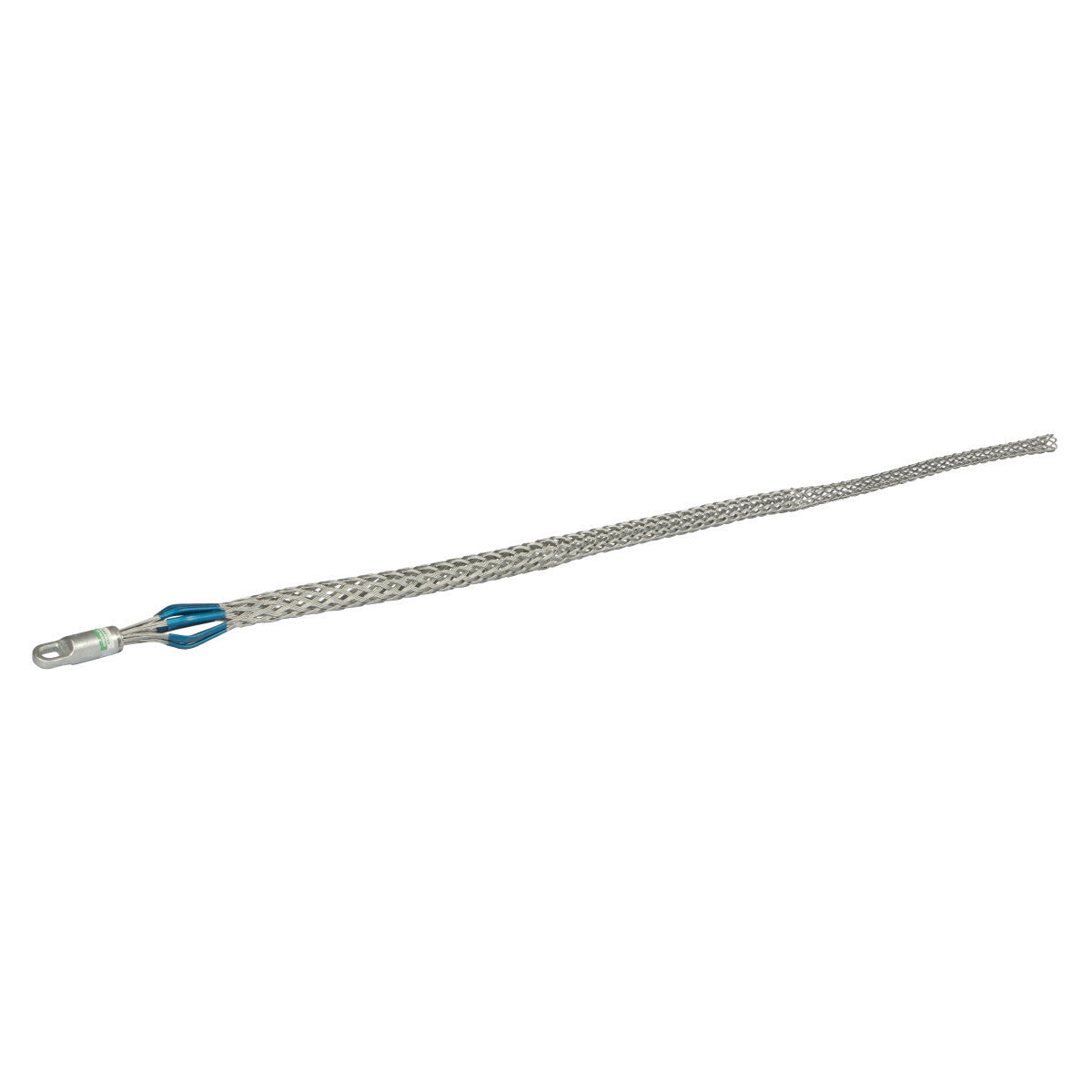

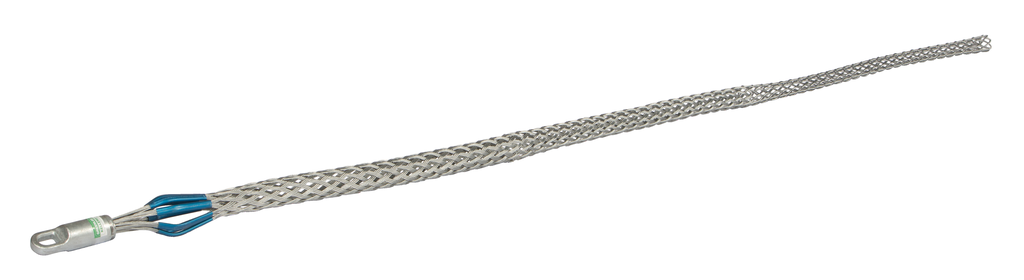

Greenlee 30486 70 Mesh 1.75 to 2.24 9600 lb Dark Blue Basket Style Rope Pulling Grip

Product Description

The Greenlee 30486 is a basket-type pulling grip designed to handle cable diameters from one point seventy-five inches to two point twenty-four inches. It can pull overhead transmission lines, bare or insulated conductors, and wire rope for heavy-duty, long-distance pulls.

• Multiple strength options with a rotating forged eye
• Constructed with triple, double, and single weave galvanized steel mesh
• Color coded for easy size identification

Product Highlights

This pulling grip is suitable for high-capacity jobs, rated up to nine thousand six hundred pounds. It features a forged steel swivel eye for effective usage.

Product Information

Standard Information

• Catalog Number: 30486
• Manufacturer: Greenlee

Technical Specifications

• Type: Basket-Type Grip with Rotating Forged Eye
• Cable Size: 1.75 - 2.24 inches
• Load Capacity: 9600 lb
• Material: Galvanized Steel
• Mesh Length: 70 inches
• Eye Diameter: 1-7/8 inches
• Eye Length: 10 inches
• Country of Origin: United States
