Greenheck SP-B80-QD Bathroom Exhaust Fan 4.5 W (46-94 CFM) SP-B80

GREENHECK
Brand: GREENHECK
SKU: SP-B80-QD
Availability: In Stock

Ships same day if ordered by 12 pm
$296.57
$296.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

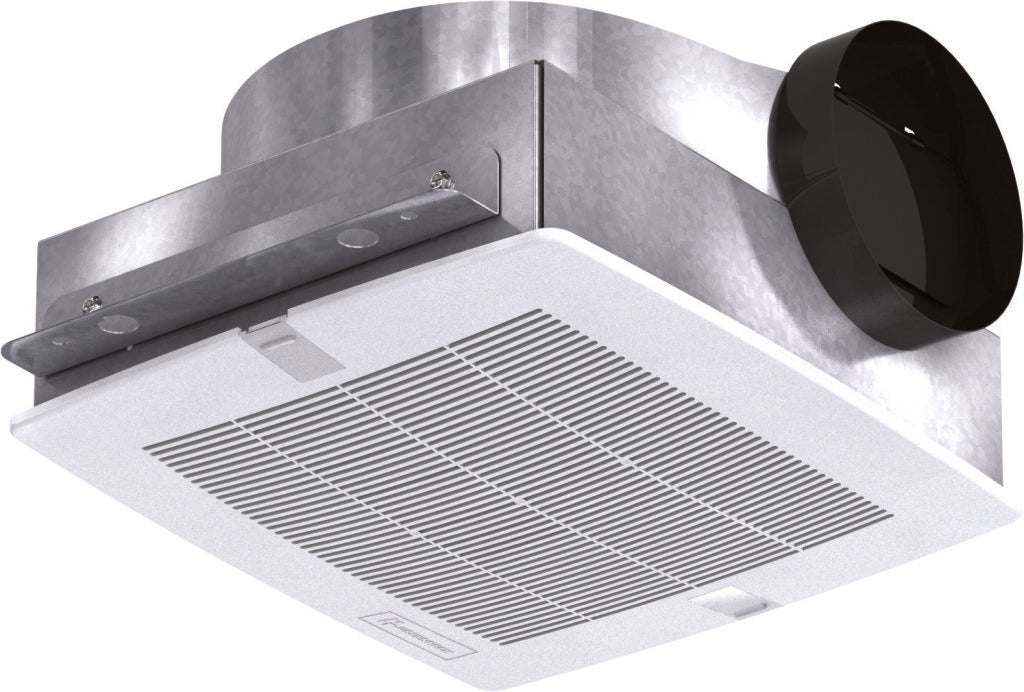

The Greenheck SP-B80-QD is an ENERGY STAR certified low-profile bathroom exhaust fan providing 46-94 CFM for residential, multi-family, and hotel ventilation. It operates on 115 V, 60 Hz single-phase power and uses a direct-drive PSC motor with a centrifugal polypropylene impeller. The unit includes a round 6 in outlet, integral backdraft damper, speed control capability, and low sound performance certified to AMCA standards.

  • Airflow 46-94 CFM with AMCA sound and air performance certification; low sound levels (example: 94 CFM @ 0 in. wg, 0.8 sones).
  • Electrical: 115 V, 60 Hz, single phase; typical operating power 4.5 W (18.6 W max in performance table); direct-drive PSC motor, RPM 720–900.

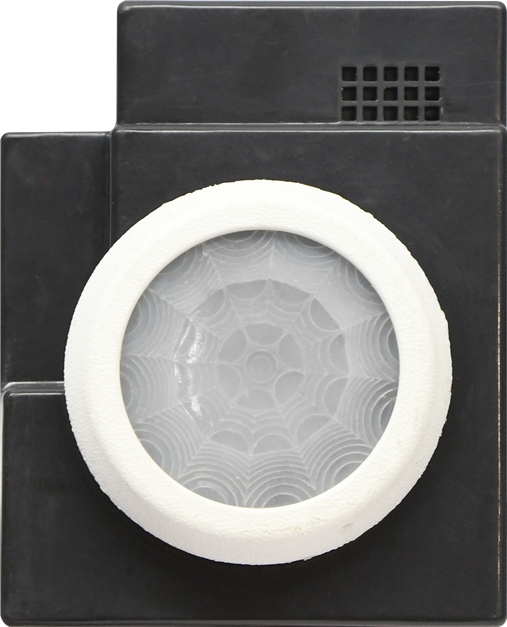

  • Low-profile galvanized steel housing for height-restricted areas, round 6 in outlet, integral backdraft damper, speed controllable; optional motion or motion/humidity sensor grilles.

Product Highlights

ENERGY STAR low-profile bathroom exhaust fan, 46–94 CFM, 115 V, 6 in outlet, integral backdraft damper

Product Information

Standard Information

  • Brand: GREENHECK
  • Manufacturer Part Number: SP-B80-QD
Technical Specifications
Brand
GREENHECK
Model
SP-B80
MPN
SP-B80-QD
Product type
Bathroom exhaust fan / Ceiling exhaust fan
Airflow
46-94 CFM
Input Voltage
115 V
Frequency
60 Hz
Phase
Single phase (1Ph)
Power Consumption
4.5 W (operating); 18.6 W (max, per performance table)
Motor Type
PSC (Permanent Split Capacitor)
Drive Type
Direct drive
Impeller Type
Centrifugal wheel
Impeller Material
Polypropylene
RPM
900 (max), 720 (min)
Outlet Size
6 in round
Mounting Position
Horizontal
Mounting Type
Ceiling/ceiling-mounted application
Housing Material
Galvanized steel
Backdraft Damper
Integral backdraft damper included
Speed Controllable
Yes
Thermal Protection
AutoOverload
Motor Insulation
Class B
Service Factor
1
Nominal Efficiency
28.5
Performance (CFM vs Static Pressure)
94 CFM @ 0 in. wg (0.8 sones); 77 CFM @ 0.125 in. wg (0.9 sones); 62 CFM @ 0.25 in. wg (1.3 sones); 46 CFM @ 0.375 in. wg (2 sones)
Certifications
ENERGY STAR; AMCA Air & Sound; UL/cUL 507
Applications
Residential, multi-family, hotel; bathroom exhaust and clean-air ventilation
Includes
Backdraft damper; mounting brackets; designer grille (optional motion/humidity sensor grilles available)
