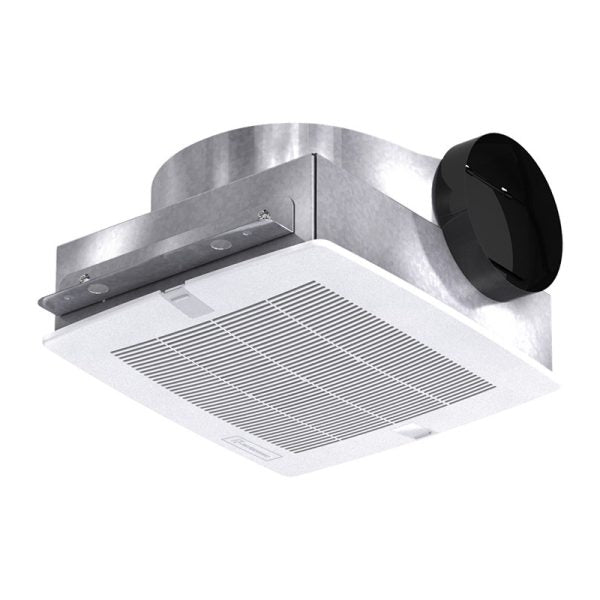

Greenheck SP-B110-115V Low Profile Bathroom Exhaust Fan

Product Description

The Greenheck SP-B110-115V is a bathroom exhaust fan optimized for low sound levels. This unit features a compact design suitable for areas with limited ceiling height. It effectively removes indoor exhaust gases, fumes, and odors. The fan employs a centrifugal wheel to facilitate air movement and includes a backdraft damper to block unwanted airflow.

• Uses a centrifugal wheel for effective air movement
• Equipped with a backdraft damper
• Designed for horizontal ceiling installation

Product Highlights

The SP-B110-115V is a reliable choice for bathrooms and similar spaces, ensuring efficient ventilation.

Product Information

Standard Information

• Brand: Greenheck
• Part Number: SP-B110

Technical Specifications

• Voltage: 115
• Phase: 1
• Hertz: 60
• CFM Range: 50-133
• RPM: 950
• Max. Operating Amps: 1.14
• Watts: 8
• Motor Insulation: B
• Nominal Efficiency: 12
• Service Factor: 1
• Drive Type: Direct Drive
• Impeller Type: Centrifugal Wheel
• Impeller Material: Polypropylene
• Housing Material: Galvanized Steel
• Mounting Location: Ceiling
• Mounting Position: Horizontal
• Thermal Protection: Auto
• Includes: Backdraft damper, Mounting brackets
• Warranty: 3 Years
