Greenheck 329392 Motor S55PRF-8612 0.5 HP (1 Phase) S55PRF-8612

Product Description

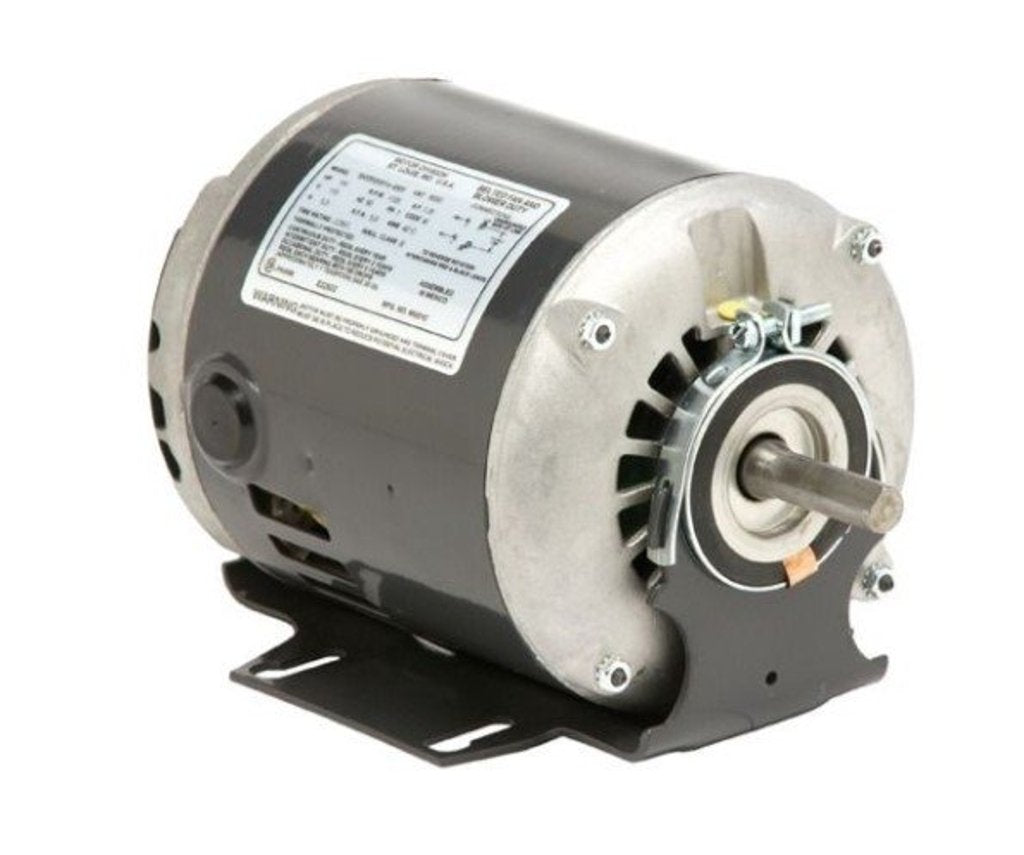

The Greenheck 329392 is a 0.5 HP NEMA motor (model S55PRF-8612) intended for use as a replacement motor in compatible Greenheck ventilation and HVAC equipment. It operates at 115 V, 60 Hz and produces 1800 RPM with a full load current of 8.6 A. The motor has an open drip proof enclosure, rolled steel housing, resilient base, 0.5 inch shaft, insulation class B and a 48 frame size. Manufactured in Mexico.

• 0.5 HP, 1800 RPM; 115 V, 60 Hz single-phase motor with 8.6 A full load current
• Open drip proof enclosure with rolled steel housing and resilient base
• 0.5 in shaft diameter; frame size 48; insulation class B; weight 23 lbs

Product Highlights

0.5 HP single-phase NEMA motor, 1800 RPM, 0.5 in shaft, open drip proof

Product Information

Standard Information

• Brand: GREENHECK
• Manufacturer Part Number: 329392
• Country of Origin: Mexico

Technical Specifications

• Brand: Greenheck
• Manufacturer: Nidec Motor Corp
• MPN: 329392
• Model: S55PRF-8612
• Power: 0.5 HP
• Speed: 1800 RPM
• Input Voltage: 115 V
• Frequency: 60 Hz
• Phase: Single-phase
• Full Load Current: 8.6 A
• Shaft Diameter: 0.5 in
• Weight: 23 lbs
• Housing Material: Rolled steel
• Enclosure Type: Open drip proof
• Base Type: Resilient base
• Frame Size: 48
• Insulation Class: B
• Motor Type: NEMA
• Explosion Proof: No
• Country of Origin: Mexico
