Greenheck 1043691 Motor 35E5455K919G1 0.75 HP (56 Frame) 35E5455K919G1

Product Description

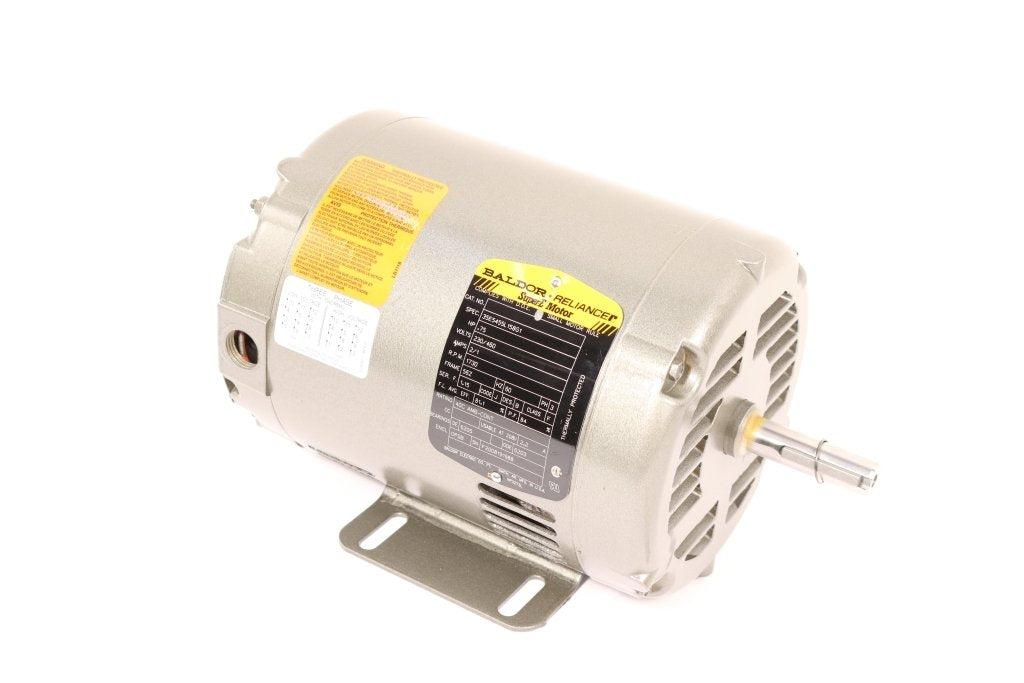

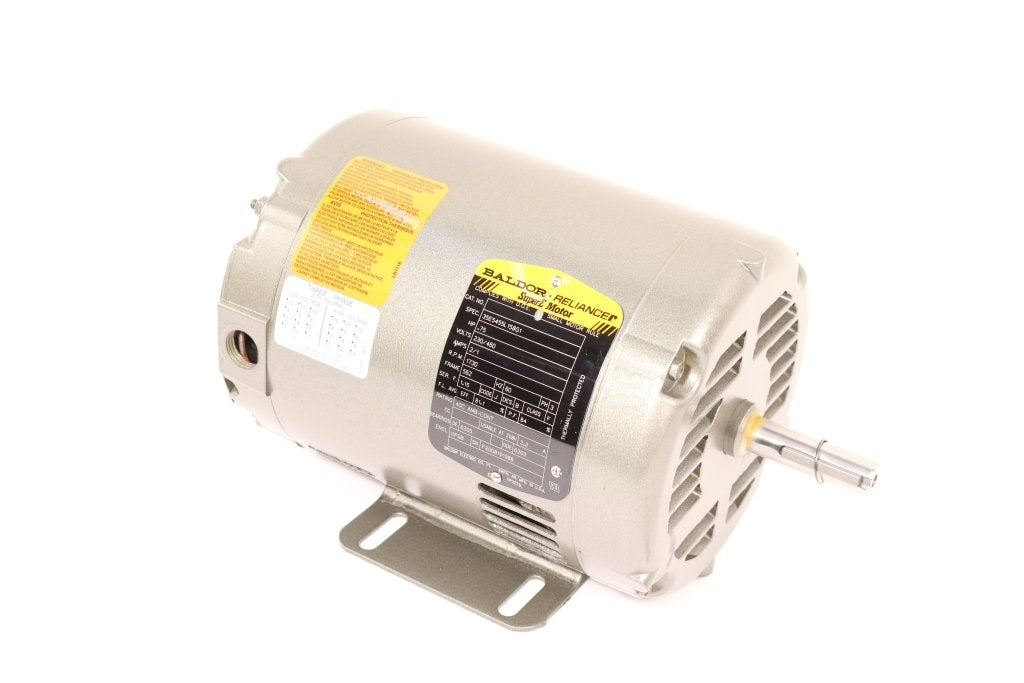

Greenheck 1043691 is a NEMA open drip proof three-phase motor (model 35E5455K919G1) rated 0.75 HP with a nominal speed of 1800 RPM. It has a rolled steel rigid base housing, F class insulation, and automatic overload thermal protection. The motor supports 3-phase operation with voltage options of 460 V, 208 V, or 230 V and the corresponding full load amp ratings for each voltage.

• 0.75 HP, 1800 RPM, 3-phase NEMA motor; frame size 56; shaft diameter 0.625 in
• Open drip proof enclosure with F class insulation and automatic overload thermal protection
• Voltage options: 460 V (1 A), 230 V (2 A), 208 V (2.2 A); rigid base rolled steel housing; weight 35 lbs

Product Highlights

NEMA ODP three-phase replacement motor with 56 frame, rigid base, F class insulation, and thermal overload protection.

Product Information

Standard Information

• Brand: GREENHECK
• Manufacturer Part Number: 1043691
• Country of Origin: US

Technical Specifications

• Brand: GREENHECK
• Manufacturer Part Number: 1043691
• Model Number: 35E5455K919G1
• Power: 0.75 HP
• Speed: 1800 RPM
• Phase: 3
• Input Voltage: 460 V, 60 Hz, 3 phase; 208 V, 60 Hz, 3 phase; 230 V, 60 Hz, 3 phase
• Full Load Amps (460V): 1 A
• Full Load Amps (230V): 2 A
• Full Load Amps (208V): 2.2 A
• Enclosure: Open drip proof
• Insulation Class: F
• Thermal Protection: Automatic overload
• Frame Size: 56
• Shaft Diameter: 0.625 in
• Weight: 35 lbs
• Housing Material: Rolled Steel
• Base Type: Rigid Base
• Motor Type: NEMA
• Mounting Type: Rigid base
• Country of Origin: US
• Explosion Proof: No
