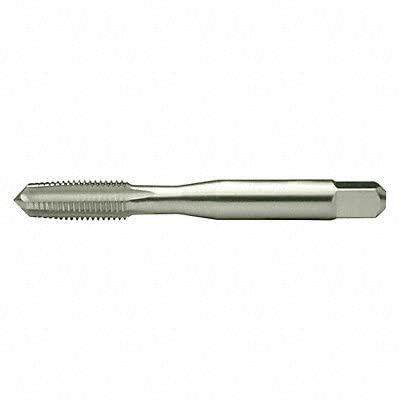

Greenfield Threading 306444 Bright Taper Straight Flute Hand Tap 1/2-20 UNF

Product Description

The Greenfield Threading 306444 is a straight flute hand tap designed for creating threads in various materials. This tool features a taper chamfer and is suitable for a thread size of one-half inch by twenty threads per inch. It is constructed from high-speed steel with a bright finish, ensuring durability and smooth operation.

• Overall length is two and three-eighths inches.
• Number of flutes: four, enabling efficient chip removal.
• Right-hand thread type for common tapping applications.

Product Highlights

This hand tap is ideal for use with materials such as aluminum, brass, bronze, and cast iron. Its design supports precise threading and is compatible with standard tapping techniques.

Product Information

Standard Information

• Manufacturer: Greenfield Threading
• Material: High Speed Steel

Technical Specifications

• Tap Size: 1/2-20 UNF
• Overall Length: 2-3/8 inches
• Shank Diameter: 0.367 inches
• Thread Length: 15/16 inches
• Pitch Diameter Limit: H3
• Classification of Fit: 2B
• Number of Flutes: 4
• Thread Direction: Right Hand
