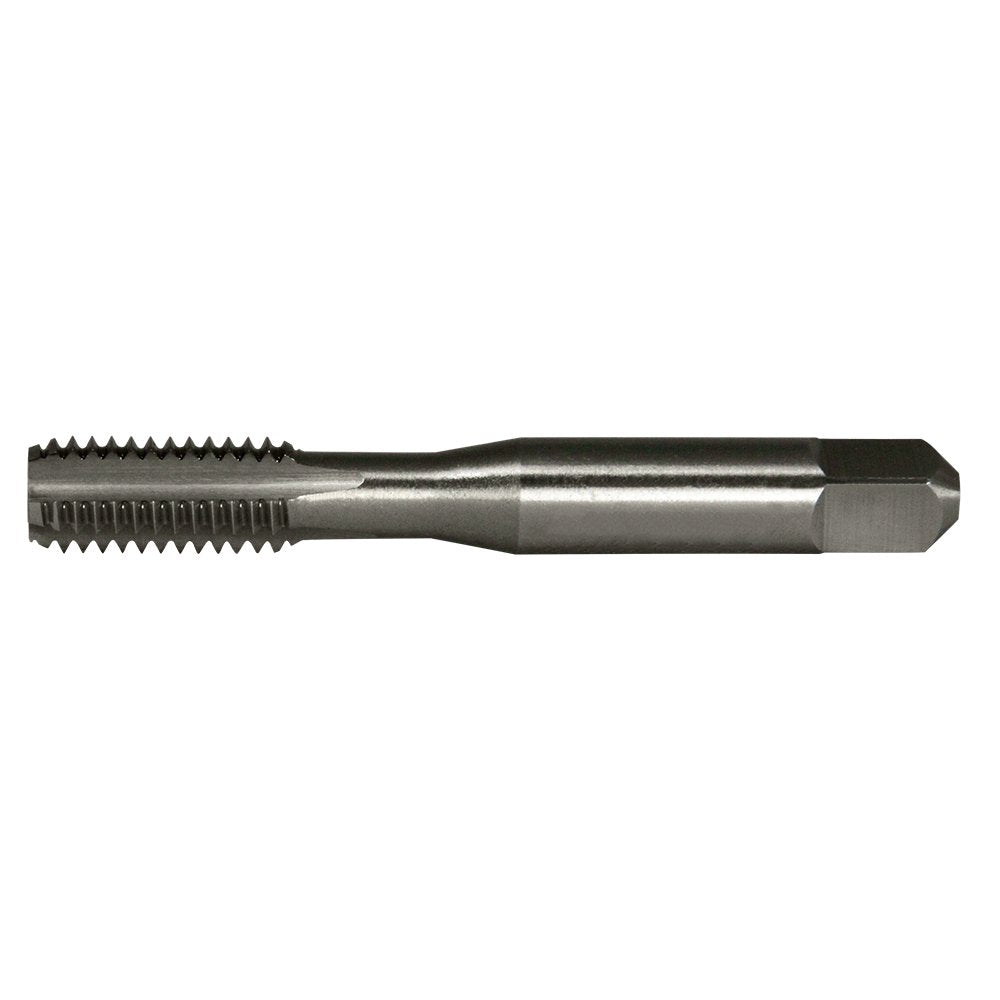

Greenfield Threading 305057 GT/VTD 1/4-20NC HTGP H2 4F GP Bottom Hand Tap

Product Description

The Greenfield Threading 305057 GT/VTD 1/4-20NC HTGP H2 4F GP Bottom Hand Tap is ideal for threading applications. It is made from high speed steel and has a bright finish.

• Tap Thread Size: 1/4 inch-20
• Overall Length: 2.5 inches
• Material: High Speed Steel

Product Highlights

This bottom hand tap is perfect for creating threads by hand. Designed for durability, it performs well on various materials such as aluminum, brass, and steel.

Product Information

Standard Information

• Model: 305057
• Brand: Greenfield Threading

Technical Specifications

• Tap Thread Size: 1/4-20
• Overall Length: 2.5 inches
• Material: High Speed Steel
• Finish: Bright
• Thread Length: 5/8 inches
• Thread Limit: H2
• Number of Flutes: 4
• Tap Chamfer: Bottoming
• Thread Type: UNC
• Class of Fit: 2B
• Shank Diameter: 0.255 inches
• Shank Length: 1.5 inches
• Primary Material Application: Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
• Measurement System: Fractional Inch
• Spiral Direction: Neutral
• Thread Direction: Right Hand
