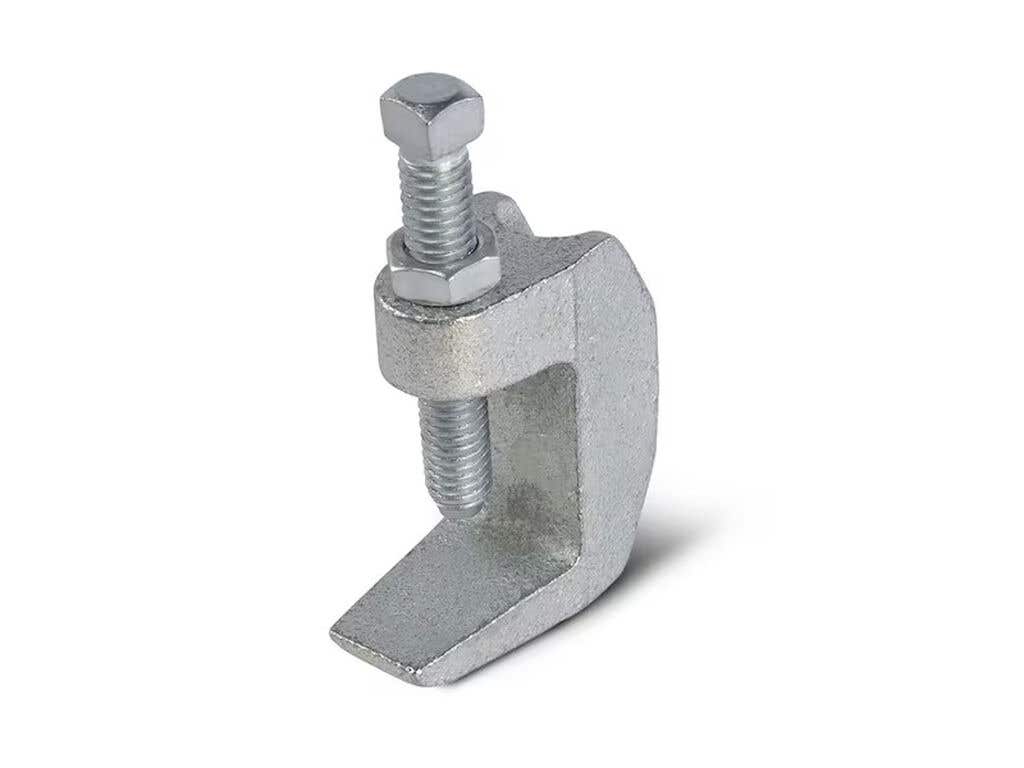

Greenfield 826-3/8 Top Beam Clamp 3/8 inch

Product Description

The Greenfield 826-3/8 Top Beam Clamp is a support fitting for mechanical, electrical, and piping installations requiring threaded rod suspension. Designed for 3/8-inch threaded rod, this clamp attaches to the top or bottom flange of a steel beam, providing a load-bearing connection point. Constructed from malleable iron with an electro-galvanized finish, it offers tensile strength and corrosion resistance.

• Professional-grade support fitting
• Engineered for mechanical, electrical, and piping installations
• Requires threaded rod suspension from structural beams or flanges

Product Highlights

Malleable iron, 3/8-inch threaded rod support fitting designed for secure attachment to structural beam flanges.

Product Information

Standard Information

• Brand: GREENFIELD
• Manufacturer Part Number: 826-3/8
• Country of Origin: United States

Technical Specifications

• MPN: 826-3/8
• Item Type: Pipe Clamps
• Product Family: Clamps, Hangers, Struts & Fasteners
• Length (inches): 1.7
• Width (inches): 2.1
• Height (inches): 0.9
• Nominal Rod Size: 3/8 in (9.5 mm)
• Mounting Type: Attaches to top or bottom flange of structural beams or bars
• Material: Malleable iron
• Finish: Electro-galvanized (also available in plain finish)
• Corrosion Resistance: Galvanized coating provides protection in standard indoor and dry industrial environments
• Load Rating: Rated for standard suspended system loads (verify with applicable building code and manufacturer chart)
• Configuration: Clamp body with threaded connection point for 3/8-inch rod
• Attachment Method: Tightens to flange with integrated setscrew mechanism
• Application: Suspension of conduit, piping, ductwork, and mechanical systems
• Operating Environment: Suitable for indoor, dry, or mildly corrosive locations
• Country of Manufacture: United States
• ADA Compliance: No
