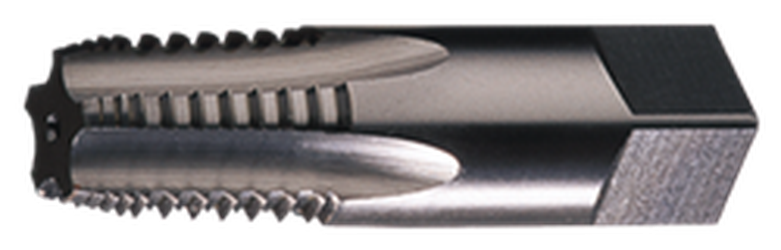

Greenfield 385813 Vermont 3/8NPTF Interrupted Taper Pipe Tap HSS/TIN

Product Description

The Greenfield 385813 Vermont 3/8NPTF Interrupted Taper Pipe Tap is designed for precision threading in various applications. Made from high-speed steel and coated with TiN for enhanced durability, this tool is suitable for producing internal threads in pipes.

• Material: High-speed steel with TiN coating
• Flute design: 4 straight flutes for efficient chip removal
• Size: 3/8 - 18 for standard NPT/NPTF threads

Product Highlights

This pipe tap features a modified bottoming chamfer for enhanced threading performance.

Product Information

Standard Information

• Brand: Greenfield
• Thickness: 0.7000 inches (17.780 mm)

Technical Specifications

• Material: High Speed
• Coating/Finish: TiN
• Number of Flutes: 4
• Size: 3/8 - 18
• Shank Size: 0.7000 inches
• Overall Length: 2 9/16 inches
• SQ. Size: 0.5310 inches
• Thread Length: 1 1/16 inches
• Point Type: Standard
• Flute Type: Straight
• Chamfer: Modified Bottoming
• Direction: Right Hand
• Coolant Hole: No
