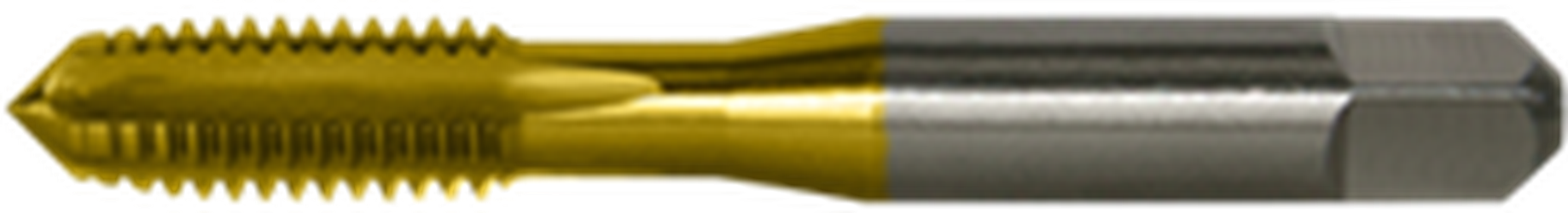

Greenfield 305517 Vermont Tin 5/16-24 Taper Hand Tap

Product Description

The Greenfield 305517 Vermont Tin 5/16-24 Taper Hand Tap is designed for creating precise threads in various materials. This hand tap is suitable for tapping holes with a fine thread pitch of 5/16 to 24. The tap is made from high-speed steel with a Titanium Nitride (TiN) coating for improved durability.

• Length: 2 23/32 inches
• Flute Type: Straight with 4 flutes
• Right-hand direction for easy cutting

Product Highlights

This hand tap is ideal for applications in metalworking and machining where precision threading is necessary.

Product Information

Standard Information

• Brand: Greenfield
• Material: High-Speed Steel

Technical Specifications

• Coating/Finish: TiN
• # of Flutes: 4
• Size: 5/16 - 24
• Shank Size: 0.3180 inches
• Overall Length: 2 23/32 inches
• SQ. Size: 0.2380 inches
• Thread Length: 1 1/8 inches
• Point Type: Standard
• Flute Type: Straight
• Limit: H3
• Chamfer: Taper
• Direction: Right Hand
• Coolant Hole: No
