Greenfield 305087 VER 1/4-20 H3 4F BOTTOM TAP HSS/TIN

Product Description

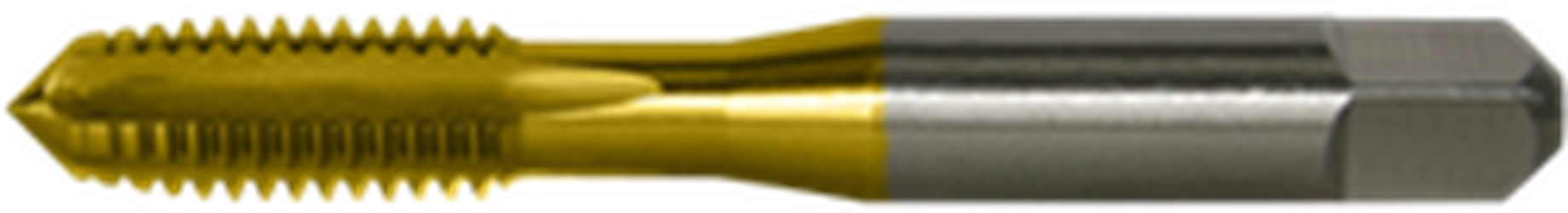

The Greenfield 305087 VER 1/4-20 H3 4F Bottom Tap is made from high-speed steel with a titanium nitride coating. It is designed to create threads in materials with a size specification of one quarter by twenty threads per inch. This tap has four flutes which enhance chip removal during the threading process. The overall length of the tap is two and a half inches, allowing for deep threading applications.

• Material: High Speed Steel with Titanium Nitride Coating
• Size: 1/4-20
• Number of Flutes: 4

Product Highlights

This bottom tap is engineered for right-hand threading and is ideal for precision applications in various industries. It features a bottoming chamfer for threading to a definite length.

Product Information

Standard Information

• Brand: Greenfield
• MPN: 305087

Technical Specifications

• Material: High Speed Steel
• Coating/Finish: TiN
• Overall Length: 2.5 inches (63.500 mm)
• Shank Size: 0.2550 inches
• Square Size: 0.1910 inches
• Thread Length: 1 inch (25.400 mm)
• Point Type: Standard
• Flute Type: Straight
• Limit: H3
• Chamfer: Bottoming
• Direction: Right Hand
• Coolant Hole: No
