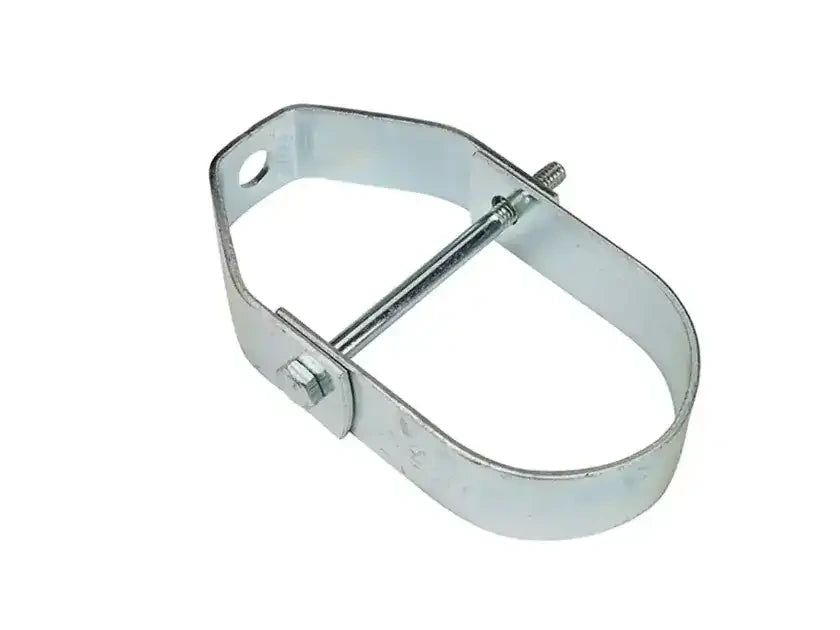

Greenfield 304-1/2 Galvanized Clevis Hanger 1/2 Inch 250 Lb

Product Description

The GREENFIELD 304-1/2 is a galvanized clevis hanger designed to support 1/2 inch pipe in plumbing and mechanical piping systems. It accepts a 3/8 inch threaded rod and carries a rated load capacity of 250 pounds, making it suitable for standard residential and light commercial pipe support applications. The compact profile measures 1.75 inches in length, 1.75 inches in width, and 1.05 inches in height, allowing installation in confined ceiling and wall spaces where clearance is limited. Galvanized construction provides corrosion resistance in typical indoor plumbing environments. Licensed plumbers and mechanical contractors are the primary installers of this fitting.

The 304-1/2 clevis hanger is used to suspend 1/2 inch pipe from overhead structure in plumbing, HVAC, and general mechanical piping installations. Its compact height makes it well suited for tight plenum spaces, crawlspaces, and mechanical rooms where vertical clearance is restricted. The 250 lb load capacity meets the demands of standard water supply and drain piping support applications in both residential and light commercial construction.

Key Features

• Rated for 1/2 inch pipe with 250 lb load capacity
• Accepts 3/8 inch threaded hanger rod
• Galvanized finish for corrosion resistance
• Compact 1.05 inch height fits tight installation spaces
• 1.75 inch by 1.75 inch footprint for consistent pipe alignment

Compatibility

Designed as an OEM-style replacement or new-installation clevis hanger for 1/2 inch pipe support applications using 3/8 inch threaded rod in plumbing and mechanical systems.

Installation Notes

Installation is performed by licensed plumbers or mechanical contractors in accordance with applicable IPC and local mechanical code requirements. Shut off the water supply and depressurize the line before positioning hangers on existing piping. Ensure the threaded rod and structural anchor are rated to handle the combined pipe, fluid, and hanger load before tightening. Follow code-specified hanger spacing intervals for the pipe material and diameter being supported.
