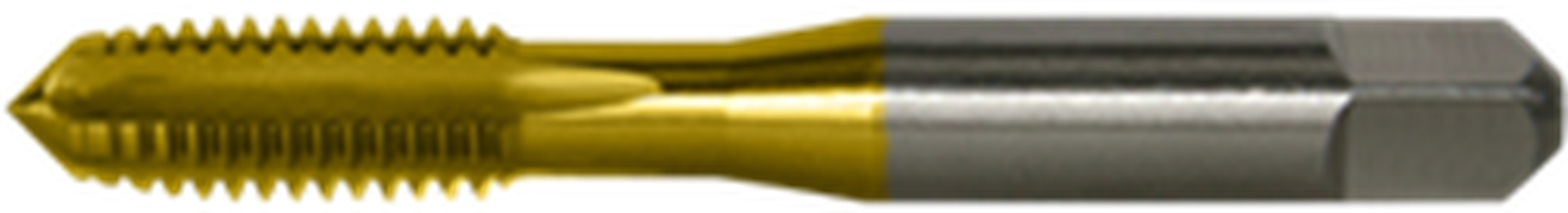

Greenfield 301078 Vermont Tin #5-40 Bottom Hand Tap

Product Description

The Greenfield 301078 Vermont Tin #5-40 Bottom Hand Tap is designed for threading and tapping applications. This tool is manufactured from high-speed steel and coated with titanium nitride for enhanced durability. It features a standard point type and a straight flute design, making it suitable for a variety of materials.

• Material: High-Speed Steel
• Overall Length: One and fifteen-sixteenths inches
• Flute Type: Straight with three flutes

Product Highlights

The Vermont Tin tap is ideal for creating internal threads in holes of size #5-40. Its bottoming chamfer allows for full thread engagement in through holes, maximizing efficiency in your projects.

Product Information

Standard Information

• Brand: Greenfield
• Material: High Speed

Technical Specifications

• Size: #5 - 40
• Shank Size: 0.1410 inches
• Overall Length: 1 15/16 inches
• SQ. Size: 0.1100 inches
• Thread Length: 5/8 inches (15.875 mm)
• Point Type: Standard
• Flute Type: Straight
• Limit: H2
• Chamfer: Bottoming
• Direction: Right Hand
• Coolant Hole: No
