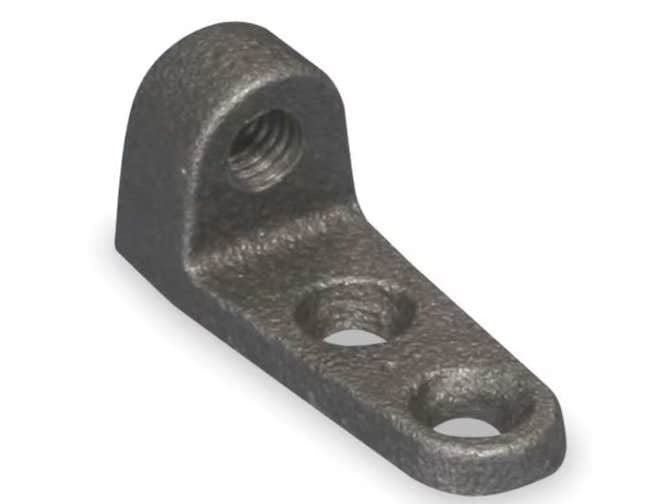

Greenfield 191-3/8 Iron Side Beam Connector 250 Lbs

Product Description

The GREENFIELD 191-3/8 is a 3/8-inch iron side beam connector rated for 250 pounds of load capacity. It is designed to attach hanger rods to the side flange of structural steel beams, enabling secure, vertical load transfer in piping support assemblies. With compact dimensions of 0.8 inches in length, 2.15 inches in width, and 1 inch in height, this connector fits into tight installation spaces while maintaining structural integrity. It is suited for use by licensed plumbers, pipefitters, and mechanical contractors working in commercial and industrial environments where dependable pipe hanger support is required.

This side beam connector is used in commercial and industrial piping systems where hanger rods must be anchored to the side of steel beams rather than the bottom flange. Typical applications include HVAC piping, process piping, and mechanical system installations in steel-framed structures. It is a standard component in pipe hanger assemblies where overhead clearance or beam geometry makes bottom-flange attachment impractical. The 191-3/8 provides a stable, code-appropriate connection point for 3/8-inch hanger rod installations.

Key Features

• 250-pound load capacity suitable for commercial and industrial piping support
• Attaches hanger rods to the side of structural steel beams
• Compact profile: 0.8 inches long, 2.15 inches wide, 1 inch tall
• Iron construction for durability in demanding mechanical environments
• Designed for 3/8-inch hanger rod applications

Compatibility

Designed as an OEM-style replacement and standard-fit connector for 3/8-inch hanger rod assemblies in commercial and industrial piping support systems mounted to structural steel beams.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters as part of a pipe hanger assembly. Ensure the steel beam flange is clean and free of debris before attaching the connector. Follow applicable mechanical codes, including ASME B31 and local building code requirements, for pipe support spacing and load ratings. Do not exceed the rated 250-pound load capacity of this connector.
