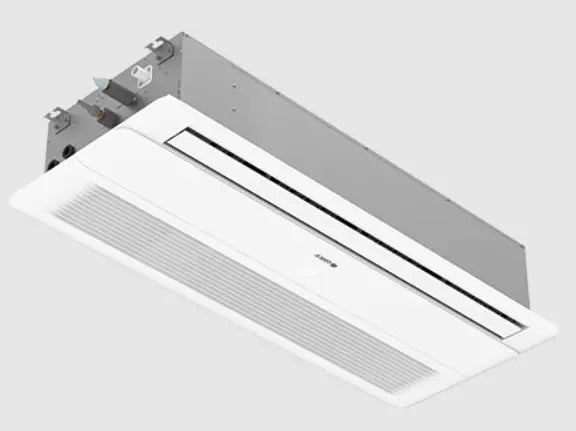

Gree OWC18HP230V1R32AH One Way Ceiling Cassette Indoor Unit 18000 Btu/h R32 230V Mini Split Air Handler

Product Description

The GREE OWC18HP230V1R32AH is an 18,000 BTU/h one-way ceiling cassette indoor unit designed for ductless mini-split systems operating on R32 refrigerant at 230 volts. This unit delivers directional airflow through a single discharge louver with swing louver control, making it well suited for narrow or elongated spaces where targeted conditioning is required. An internal condensate drain pump with a sentry float switch manages moisture removal without requiring a gravity drain. DC inverter-driven operation and copper tube and aluminum fin coil construction are standard. Licensed HVAC technicians install this unit as part of a complete mini-split system paired with a compatible outdoor unit.

The OWC18HP230V1R32AH is designed for residential and light commercial applications where ceiling-mounted, concealed air distribution is preferred. It is compatible with GREE Multi21 R32 multi-zone outdoor units and GREE All Match single-zone outdoor units. The unit is rated under AHRI Certificate 215417456 (Vireo R32), 215417449 (Envo R32), and 215416022 (Sapphire R32), confirming performance validation across multiple matched system configurations. Typical installs include offices, retail corridors, hotel rooms, and residential spaces with finished ceilings.

Key Features

• 18,000 BTU/h capacity with DC inverter technology for variable-speed operation
• R32 refrigerant with integrated refrigerant sensor for leak detection
• Internal condensate drain pump with sentry float switch for reliable moisture management
• Single-direction swing louver for targeted, directional airflow delivery
• Blue-coated aluminum fin with 500-hour salt spray test rating for corrosion resistance
• Wireless remote with LCD display and XE72-44/E wired controller both included
• Low ambient cooling and heating capability

Compatibility

Compatible with GREE Multi21 R32 multi-zone outdoor units and GREE All Match single-zone outdoor units. AHRI-certified performance is validated under certificate numbers 215417456, 215417449, and 215416022 for matched Vireo R32, Envo R32, and Sapphire R32 system configurations respectively.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification, as this system uses R32 refrigerant, which is classified as mildly flammable (A2L). Power to the indoor and outdoor units must be disconnected at the breaker before any service work begins. Ceiling structural support must be verified before mounting the cassette chassis, and all refrigerant line connections, electrical wiring, and condensate drain must be confirmed per local mechanical and electrical codes before commissioning.

Technical Specifications

• Capacity: 18,000 BTU/h
• Voltage: 230 volts
• Refrigerant: R32
• Unit Type: One-Way Ceiling Cassette Indoor Unit
• Coil Construction: Copper tube / Aluminum fin
• Fin Coating: Blue colored fin, 500-hour salt spray tested
• Condensate Management: Internal drain pump with sentry float switch
• Controls Included: Wireless remote with LCD display, XE72-44/E wired controller
• AHRI Certificates: 215417456, 215417449, 215416022

Standard Information

• Brand: GREE
• Manufacturer Part Number: OWC18HP230V1R32AH
