Gree OWC09HP230V1R32AH One Way Ceiling Cassette Mini Split Indoor Unit 9000 Btu/h R32 230V

Product Description

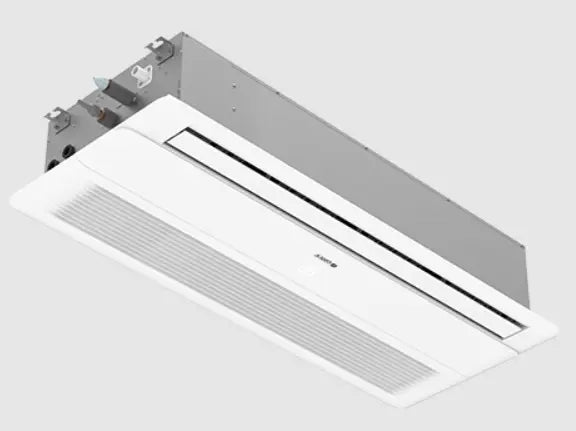

The GREE OWC09HP230V1R32AH is a 9,000 BTU/H one-way ceiling cassette indoor unit designed for ductless mini split systems operating on R32 refrigerant at 208-230 volts. It delivers directional airflow in a single discharge direction, making it well suited for narrow or elongated spaces where 360-degree distribution is not required. The unit features a high-efficiency DC inverter-compatible design, an integrated condensate drain pump with a sentry float switch, and a blue-colored aluminum fin coil rated for 500 hours of salt spray exposure. A wireless remote with LCD display and a wired XE72-44/E controller are included. Licensed HVAC technicians perform the installation as part of a complete ductless split system.

The OWC09HP230V1R32AH is intended for residential and light commercial applications where ceiling-flush installation is required and conditioned airflow must be directed in one primary direction. Typical scenarios include small retail spaces, server rooms, narrow commercial corridors, and residential additions. The unit is designed to pair with compatible GREE multi or single-zone outdoor condensers using R32 refrigerant. Low ambient cooling and heating operation extends usable range across a wide range of outdoor temperatures.

Key Features

• 9,000 BTU/H one-way cassette configuration for directional airflow in narrow or single-exposure spaces
• R32 refrigerant with integrated refrigerant sensor for enhanced safety
• Internal condensate drain pump with sentry float switch eliminates need for gravity drain in most ceiling installations
• Blue-colored aluminum fin coil rated for 500 hours salt spray testing for corrosion resistance
• Copper tube and aluminum fin coil construction on both indoor and outdoor units
• Wireless remote with LCD display and XE72-44/E wired controller included in the box
• Multiple fan speeds with swing louver control for airflow adjustment

Compatibility

The OWC09HP230V1R32AH is a GREE All Match one-way cassette indoor unit rated for use with compatible GREE R32 multi-zone outdoor condensers. Verify outdoor unit compatibility using GREE system documentation before pairing. AHRI Certificate 215413814 is associated with the Vireo R32 system, 215413809 with the Envo R32 system, and 215415551 with the Sapphire R32 system per available submittal data.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle R32 refrigerant, as R32 is a mildly flammable A2L refrigerant subject to specific handling requirements under applicable mechanical and refrigerant codes. Power to the system must be disconnected at the disconnect and circuit breaker before any service work begins. Verify that ceiling framing can support the cassette weight and that condensate drain pump routing meets local plumbing code requirements. Follow GREE submittal documentation and local jurisdiction requirements for refrigerant line sizing, electrical supply, and equipment clearances.

Technical Specifications

• Cooling and Heating Capacity: 9,000 BTU/H
• Power Supply: 208-230 volts
• Refrigerant: R32
• Unit Type: One-Way Ceiling Cassette Indoor Unit
• Coil Construction: Copper tube, aluminum fin
• Fin Coating: Blue colored, 500 hours salt spray tested
• Condensate Drain: Internal pump with sentry float switch
• Controls Included: YBE1FB5F wireless remote with LCD display, XE72-44/E wired controller
• AHRI Certificates: 215413814, 215413809, 215415551

Standard Information

• Brand: GREE
• Manufacturer Part Number: OWC09HP230V1R32AH
