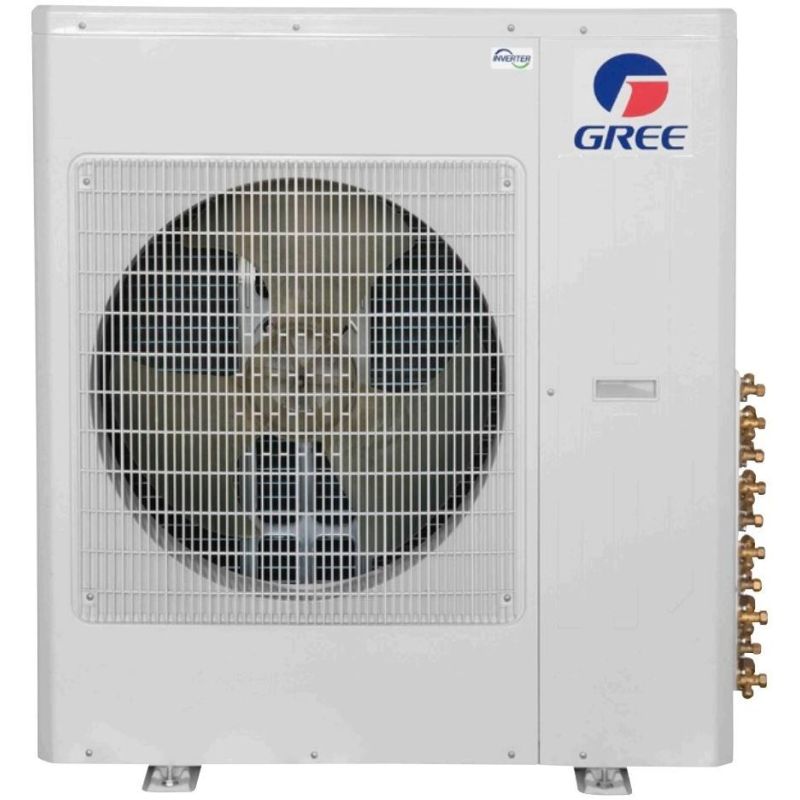

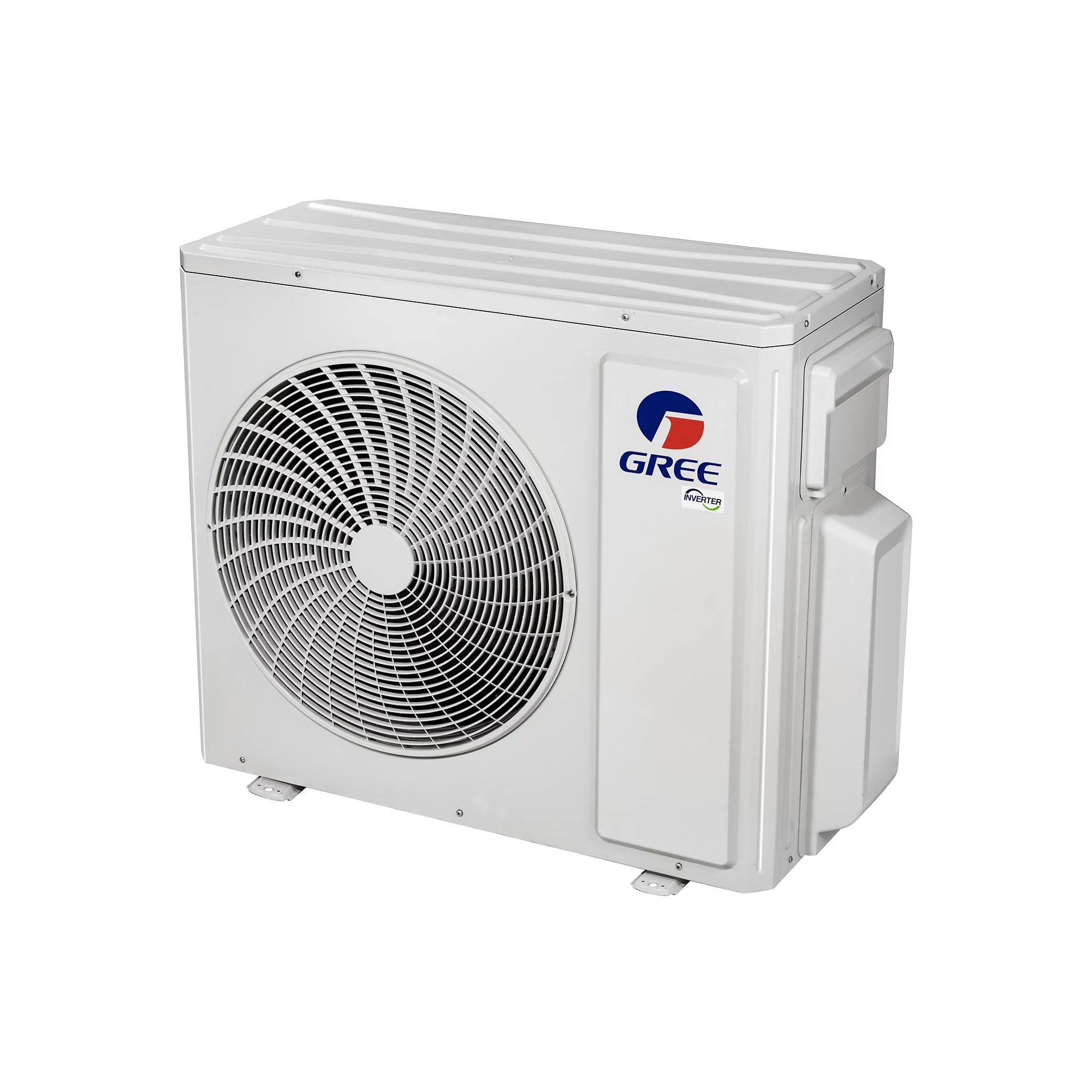

Gree MULTI36HP230V1EO Multi Ductless Mini-Split Outdoor Unit 36,000 BTU/h 208-230V/60Hz

Product Description

The Gree MULTI36HP230V1EO is a 36,000 BTU/h Multi Ductless Mini-Split Outdoor Unit designed for efficient climate control. This 3-ton heat pump operates on 208-230V/60Hz single-phase power, offering a SEER of 21 and utilizing R-410A refrigerant. It supports 1-5 HVAC zones, making it suitable for various multi-zone applications. The unit provides both cooling and heating capabilities with a cooling capacity of 36,000 BTU/h and heating capacity of 36,000 BTU/h.

• 36,000 BTU/h cooling and heating capacity for effective climate control.
• High efficiency with a SEER of 21 and R-410A refrigerant.
• Supports 1-5 HVAC zones, ideal for multi-room installations.

Product Highlights

Features advanced G-10 inverter technology for stable, energy-efficient operation and low noise levels. AHRI certified for outdoor use.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: MULTI36HP230V1EO
• Country of Origin: CHN

Technical Specifications

• AHRI Usage: Outdoor
• AHRI Certificate Number: 210278980 & 210278979
• CFM: 3413
• Compressor Type: Rotary
• Cooling Capacity: 36000 BTU/h
• Cooling Rated Capacity: 36000 BTU/h
• Country of Origin: China
• EER: 12
• EER2: 11-12
• Energy Star Rated: No
• Equipment Type: Heat Pump
• ETL Listed: Yes
• Frequency: 60 Hz
• Heating Capacity: 36000 BTU/h
• Heating Capacity at 5°F: 32400 BTU/h
• Height: 32.214 inches
• High Heat Heat Pump: No
• HSPF2: 10
• Length: 39.78 inches
• Liquid Line Fitting Type: Flare
• Liquid Line Size: 1/4 inch OD
• Maximum Breaker Size: 35 Amps
• Maximum Overcurrent Protection: 45 Amps
• Maximum Piping Height: 82 ft
• Maximum Piping Length: 263 ft
• Minimum Breaker Size: 23 Amps
• Minimum/Maximum Outdoor Temperature for Cooling: 0°F to 118°F
• Minimum/Maximum Outdoor Temperature for Heating: -5°F to 75°F
• Number of HVAC Zones: 1-5
• Phase: Single
• Product Family: MULTI 21+ Gen2
• Product Features: Hyper Heat
• Prop 65 Warning: Yes
• Refrigerant Charge: 3.7 lbs
• Refrigerant Pre-charge Length: 131 ft
• Refrigerant Type: R-410A
• SEER: 21
• SEER2: 16-21
• Sound Pressure Level: 61 dB(A)
• Stage: Single
• Suction Line Fitting Type: Flare
• Suction Line Size: 3/8 inch OD
• Tonnage: 3 Ton
• UL Listed: No
• Voltage: 230 VAC
• Weight: 171.6 lbs
• Width: 16.653 inches
