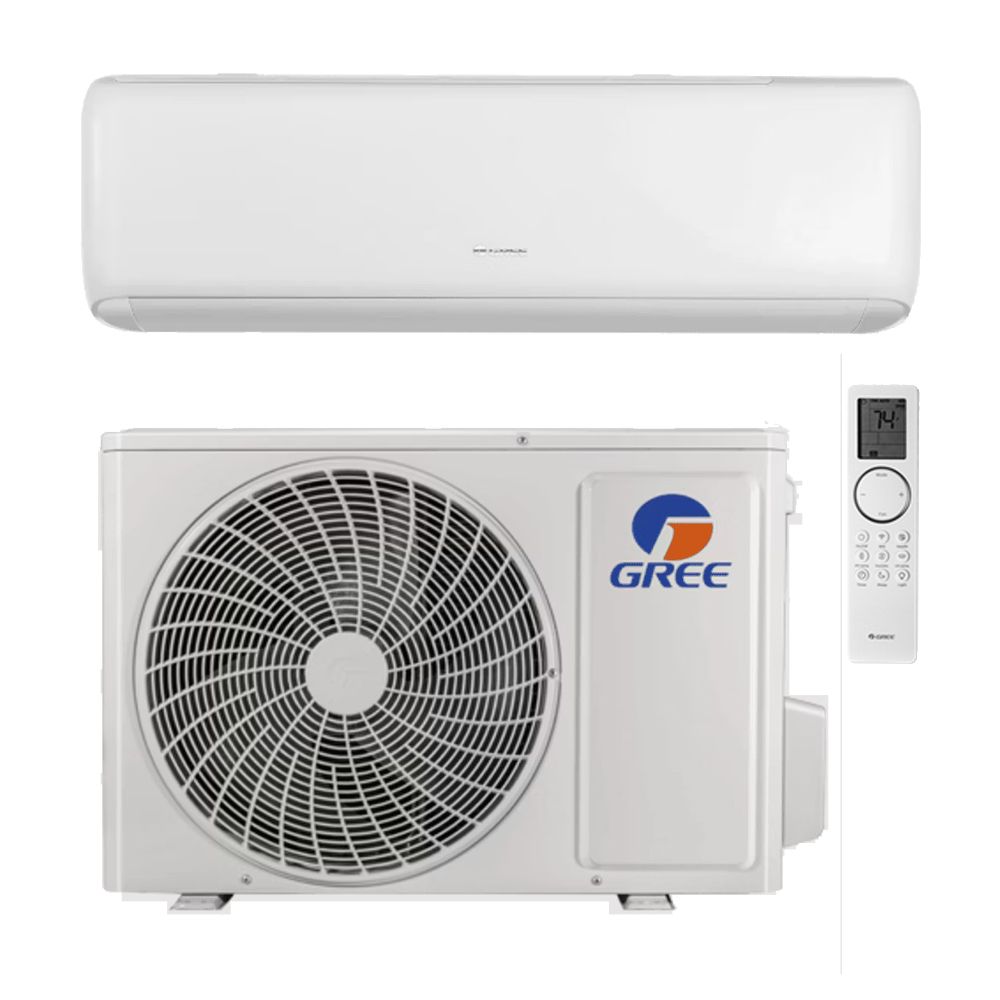

GREE Livo VIR18HP230V1R32AH VIR18HP230V1R32AO - Indoor/Outdoor Inverter Mini Split Heat Pump System w Remote - 18k BTU - 230V-SEER 24.5 -R32

Product Description

The GREE VIR18HP230V1R32AH is a wall-mounted mini-split air handler that provides efficient climate control. It has both cooling and heating capabilities, making it ideal for various environments. This model uses R32 refrigerant and is equipped with a variable speed compressor for better temperature management.

• Cooling capacity of 18,000 BTU per hour
• Heating capacity of 18,000 BTU per hour
• Operates on 208/230V single-phase power

Product Highlights

The GREE mini-split system is designed for both residential and light commercial use. Its variable speed operation enhances comfort levels while being energy efficient.

Product Information

Standard Information

• Brand: Gree
• MPN: VIR18HP230V1R32AH

Technical Specifications

• Mini Split Type: Wall Mounted
• Zone Compatibility: Single Zone
• Refrigerant: R32
• Voltage: 208/230V
• Electrical Phase(s): 1-Phase
• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 18,000 BTU/h
• SEER2: Up to 24.5
• EER2: Up to 13.7
• HSPF2: 9
• Cooling Operating Range: -20°F to 122°F
• Heating Operating Range: -22°F to 86°F
• Sound Pressure Level: 27 - 59 dB(A)
• Air Flow: 324 - 589 CFM
• Dehumidification: 3.80 pt/hr
• Indoor Unit Dimensions: 38.56 inches (W) x 12.25 inches (H) x 8.70 inches (D)
• Outdoor Unit Dimensions: 37.73 inches (W) x 25.98 inches (H) x 15.83 inches (D)
• Net Weight: 28.7 lbs
• Suction Valve Size: 1/2 inches
• Liquid Valve Size: 1/4 inches
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years

Product Description

The GREE VIR18HP230V1R32AO is a single-zone mini-split system intended for efficient heating and cooling. This system uses R32 refrigerant for better environmental performance. The variable speed compressor allows for precise temperature management, making it ideal for a single-zone application.

• Utilizes R32 refrigerant for eco-friendly performance.
• Includes multiple fan speeds and auto-clean functionality.
• Automatic voltage adaptation enhances reliability.

Product Highlights

Well suited for various indoor climate control needs, this system effectively maintains comfortable temperatures year-round.

Product Information

Standard Information

• Brand: GREE
• Model Number: VIR18HP230V1R32AO

Technical Specifications

• Type: Heat Pump
• Zones: 1
• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 18,000 BTU/h
• SEER2: 24.5
• EER2: Up to 13.7
• HSPF2: Up to 9
• Input Voltage: 208/230V
• Sound Pressure Level: 59 dB(A)
• Outdoor Unit Height: 25.63 inches
• Outdoor Unit Width: 37.72 inches
• Outdoor Unit Depth: 15.84 inches
• Indoor Unit Height: 12.25 inches
• Indoor Unit Width: 38.66 inches
• Indoor Unit Depth: 8.71 inches
• Parts Warranty: 5 years
• Compressor Warranty: 7 years
• Net Weight: 94.8 lbs
