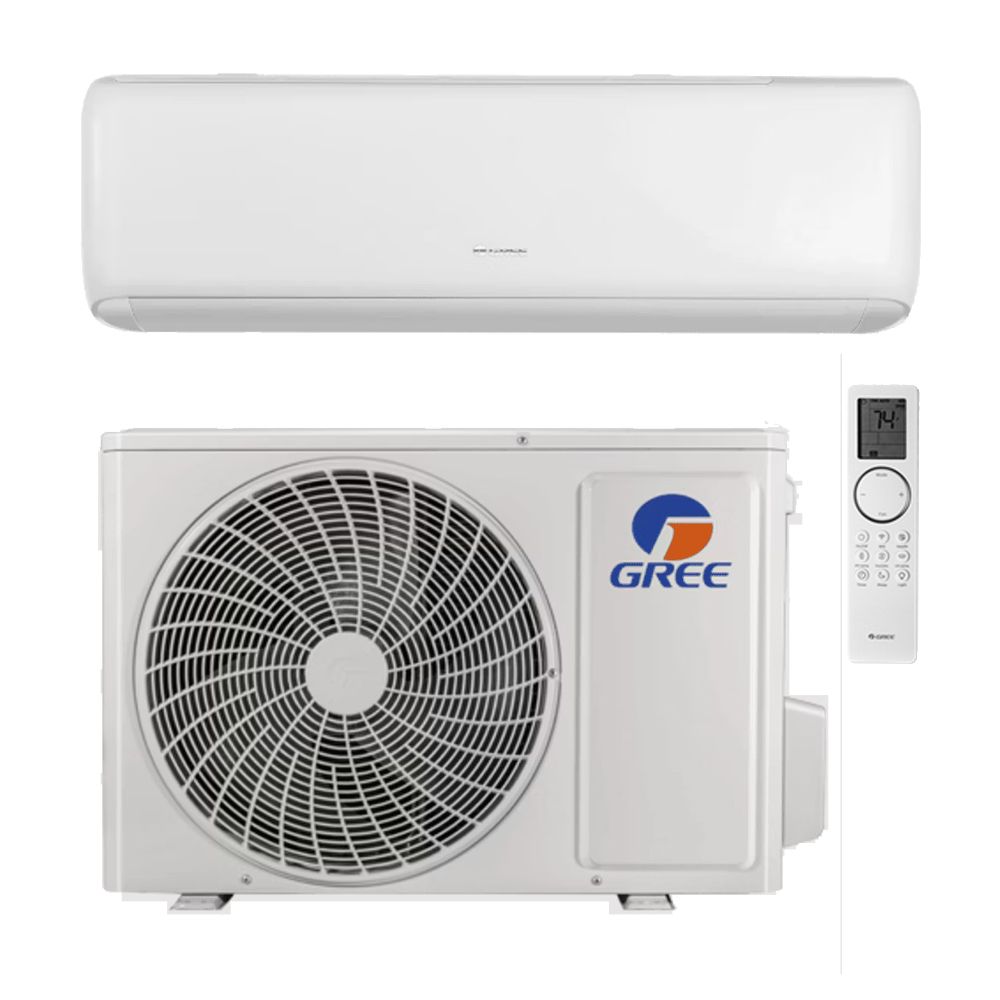

GREE Livo SAP18HP230V1R32AH SAP18HP230V1R32AO - Indoor/Outdoor Inverter Mini Split Heat Pump System w Remote - 18k BTU - 230V-SEER 27.5 -R32

Product Description

The GREE SAPPHIRE SAP18HP230V1R32AH is a single-zone air handler that is mounted on the wall. It is built for controlling climate in residential and light commercial spaces. This unit employs R32 refrigerant along with inverter technology for energy-efficient performance. It supports both cooling and heating operations, making it suitable for various climate conditions.

• Wall-mounted design for single-zone climate control.
• Utilizes R32 refrigerant and advanced inverter technology.
• Includes multiple fan speeds and Wi-Fi compatibility for convenience.

Product Highlights

Designed for quiet operation, this unit allows precise temperature management and easy adjustments via Wi-Fi.

Product Information

Standard Information

• Brand: Gree
• Manufacturer Part Number: SAP18HP230V1R32AH

Technical Specifications

• BTU/Tonnage: 18,000 BTU/1.5 Ton
• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 18,000 BTU/h
• Input Voltage: 208/230V
• Refrigerant: R32
• Mount Type: Wall
• Zone Compatibility: Single Zone
• SEER2: Up to 30.0
• EER2: Up to 16.8
• HSPF2: Up to 11.2
• Cooling Operating Range: -22°F to 86°F
• Heating Operating Range: -20°F to 122°F
• Decibel Rating: 49 dBA
• Air Flow (Min-Max): 471 - 736 CFM
• Dehumidification: 3.80 pt/hr
• Width: 43.56 inches
• Height: 13.52 inches
• Depth: 10.18 inches
• Weight: 45.2 lbs
• Maximum Line Length: 131 FT
• Listings: AHRI, EnergyStar, ETL

Product Description

The GREE - SAPPHIRE SAP18HP230V1R32AO is an outdoor mini-split heat pump condenser suited for single-zone applications. This unit operates using R32 refrigerant and employs high-efficiency DC inverter technology to efficiently provide heating and cooling.

• Utilizes R32 refrigerant for both cooling and heating.
• Features auto-clean function, multiple fan speeds, and self-diagnosis capabilities.
• Compatible with Gree indoor units for enhanced system integration.

Product Highlights

This heat pump is designed to ensure optimal performance in various temperatures while maintaining energy efficiency standards.

Product Information

Standard Information

• Brand: Gree
• Manufacturer Part Number: SAP18HP230V1R32AO

Technical Specifications

• Cooling Capacity (BTU): 18000
• Heating Capacity (BTU): 18600
• Refrigerant: R32
• SEER2: 27.5
• EER2: 14.3
• HSPF2: 10
• Input Voltage: 208/230V
• Decibel Rating: 59 dBA
• Compressor Type: Twin Rotary
• Liquid Line: 1/4 inches
• Suction Line: 5/8 inches
• Maximum Line Length: 131 feet
• Cooling Range: -22°F to 86°F
• Heating Range: -20°F to 122°F
• Mount Type: Wall
• Width: 37.23 inches
• Height: 25.66 inches
• Depth: 15.56 inches
• Weight: 94.8 lbs
• Listings: AHRI, EnergyStar, ETL
