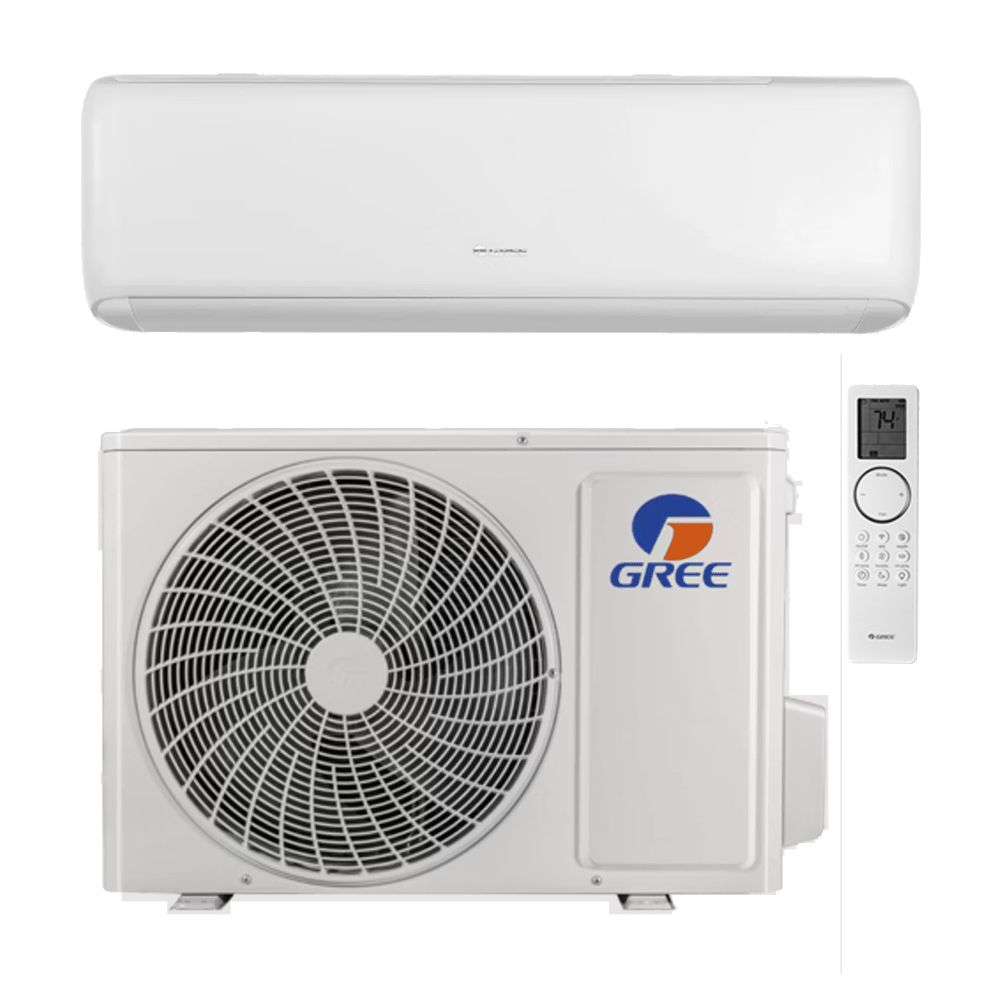

GREE Livo SAP12HP230V1R32AH SAP12HP230V1R32AO - Indoor/Outdoor Inverter Mini Split Heat Pump System w Remote - 12k BTU - 230V-SEER 27 -R32

Product Description

The GREE Sapphire R32 Single-Zone Mini-Split System (SAP12HP230V1R32AH) is a solution for heating and cooling in residential and light commercial spaces. This wall-mounted unit operates effectively for both cooling and heating needs. It features R32 refrigerant and uses inverter technology to maintain optimal temperature.

• Provides both cooling and heating
• Engineered for single-zone applications
• Includes an auto-clean function

Product Highlights

This mini-split system is ideal for precise climate control in small areas. It efficiently cools and heats within a wide temperature range.

Product Information

Standard Information

• Brand: Gree
• Model Number: SAP12HP230V1R32AH

Technical Specifications

• Application: Heating, Cooling
• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• Cooling/Heating Capacity: 15,354/17,060 BTU
• Refrigerant: R32
• Input Voltage: 230V
• SEER2: Up to 28
• EER2: Up to 15.2
• HSPF2: 10
• Cooling Operating Range: -20°F to 122°F
• Heating Operating Range: -22°F to 86°F
• Decibel Level: 43 dBA
• BTU/Tonnage: 12,000 BTU/1 Ton
• Mini Split Type: Wall Mounted
• Zone Compatibility: Single Zone
• Height: 13.43 inches
• Width: 38.19 inches
• Depth: 10.18 inches
• Weight: 38.60 lbs
• Mounting Type: Wall
• Zone Capacity: 1
• Listings: AHRI, EnergyStar, ETL
• Energy Star Rated: Yes
• Max Airflow (CFM): 565
• Min Airflow (CFM): 353
• Liquid Line: 1/4 inches
• Suction Line: 1/2 inches
• Dehumidification (Pts/Hr): 2.96

Product Description

The GREE - SAPPHIRE SAP12HP230V1R32AO is a mini-split heat pump condenser made for single-zone use. This unit offers cooling and heating capacities of twelve thousand BTU and twelve thousand two hundred BTU respectively. It uses R32 refrigerant and operates on two hundred eight to two hundred thirty volts.

• Cools and heats single zones.
• Utilizes R32 refrigerant.
• Operates quietly at fifty-five decibels.

Product Highlights

This unit is designed for wall mounting and features a twin rotary compressor. It is listed with AHRI, EnergyStar, and ETL.

Product Information

Standard Information

• Brand: Gree
• Manufacturer Part Number: SAP12HP230V1R32AO

Technical Specifications

• Cooling Capacity: 12000 BTU
• Heating Capacity: 12200 BTU
• Voltage: 208/230V
• Mount Type: Wall
• Zone Capacity: 1
• Decibel Level (dBA): 55
• Refrigerant: R32
• SEER2: 30.5
• Compressor Type: Twin Rotary
• Liquid Line: 1/4
• Suction Line: 1/2
• Electrical: 208-230V | 60 HZ | 1 Phase
• BTU/Tonnage: 12000 BTU/1 Ton
• Height: 21.23 inches
• Width: 34.16 inches
• Depth: 14.56 inches
• Efficiency: 27 SEER
• Cooling Range: -22°F - 86°F
• Heating Range: -20°F - 122°F
• Maximum Line Length: 131 FT.
• EER2: 15.2
• HSPF2: 10
• Weight: 84.90 lbs
• Refrigerant Type: R-32
