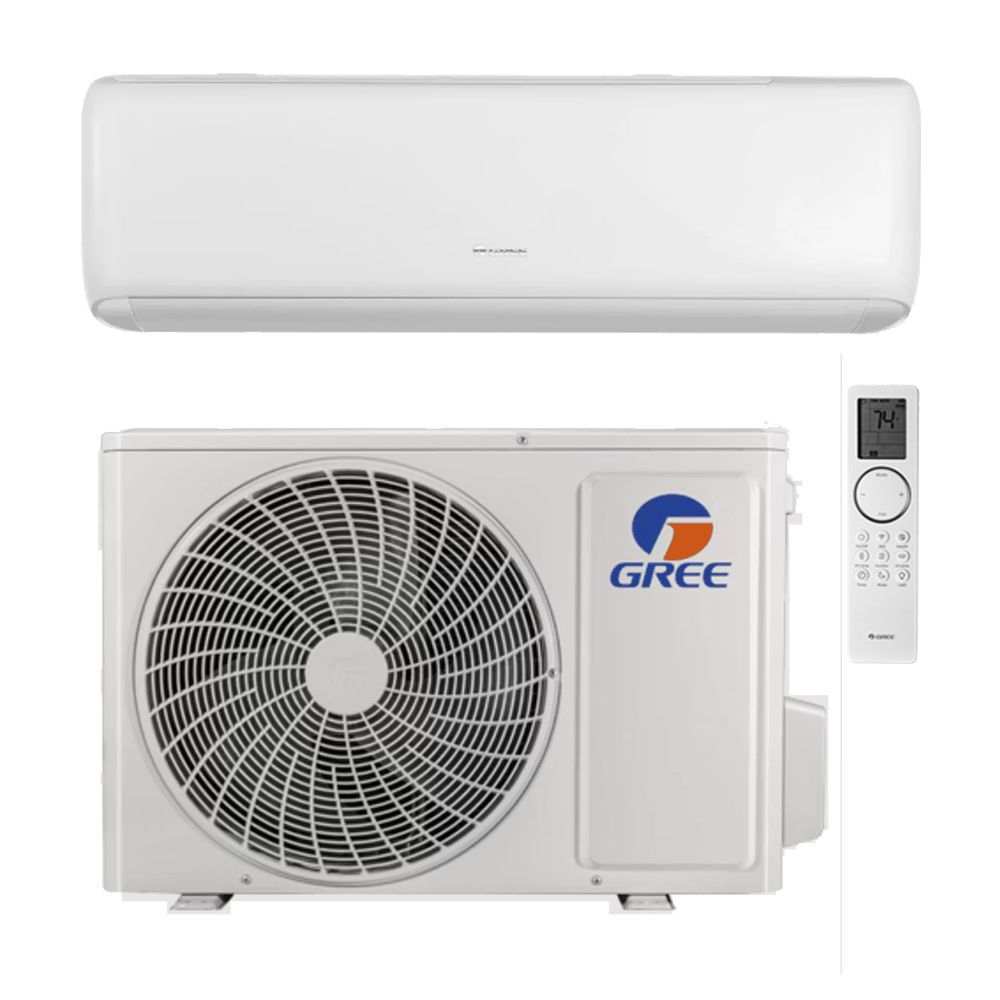

GREE Livo LIV36HP230V1R32AH LIV36HP230V1R32AO - Indoor/Outdoor Inverter Mini Split Heat Pump System w Remote - 36k BTU - 230V-SEER 21 -R32

Product Description

The GREE LIV36HP230V1R32AH is a mini-split air handler designed for single-zone applications. This model provides both cooling and heating, making it versatile for varying climate needs. It utilizes R32 refrigerant and features inverter technology for effective temperature control. The unit is wall-mounted, ensuring it seamlessly fits into any space.

• Energy-efficient with multiple fan speeds
• Auto-clean function for low maintenance
• Quiet operation ideal for indoor use

Product Highlights

This air handler is suitable for residential or light commercial environments, adapting to both cooling and heating needs.

Product Information

Standard Information

• Brand: Gree
• MPN: LIV36HP230V1R32AH

Technical Specifications

• Application: Single or Multi-Zone Indoor Wall Mount
• Cooling Capacity: 36,000 BTU/h
• Heating Capacity: 36,000 BTU/h
• SEER2: 21.0
• EER2: Up to 10.6
• HSPF2: 8.5
• Refrigerant Type: R32
• Input Voltage: 208/230V
• Decibel Level (dB): 52
• Cooling Temperature Range: 0 - 118 °F
• Heating Temperature Range: -13 - 75 °F
• Unit Dimension: 42-7/16 x 13-7/64 x 9-11/16 inches
• Weight (Net): 34.2 lbs
• Parts Warranty: 5 years
• Compressor Warranty: 7 years

Product Description

The GREE LIV36HP230V1R32AO is a single-zone mini-split heat pump system. This system is designed for both heating and cooling functions. It uses R32 refrigerant and inverter technology for efficient energy usage and accurate temperature management. It is perfect for single-zone settings and operates quietly. Equipped with a variable speed compressor, it maintains comfort across a wide range of temperatures.

• Equipped with R32 refrigerant.
• Features inverter technology for precise temperature control.
• Designed for quiet single-zone applications.

Product Highlights

This mini-split heat pump ensures efficient performance with lower energy costs. It is effective for heating and cooling in various environments.

Product Information

Standard Information

• Brand: GREE Comfort
• Application: Single-Zone Outdoor Unit

Technical Specifications

• Cooling Capacity: 37500 BTU
• Heating Capacity: 34000 BTU/h
• SEER2: 21
• EER2: 10.6
• HSPF2: 8.5
• COP: 1.8
• Input Voltage: 208/230V
• Electrical Phase(s): 1-Phase
• Frequency: 60 Hz
• Amp(s): 25
• System Rated Current Cooling: 20
• System Rated Current Heating: 20
• System MCA: 23
• System MOCP: 35
• Refrigerant Type: R32
• Refrigerant Charge: 56.4 oz
• Sound Pressure Level: 62 dB(A)
• Cooling Temperature Range: 0 - 118 °F
• Heating Temperature Range: -13 - 75 °F
• Liquid Line Size: 1/4
• Suction Line Size: 5/8
• Maximum Line Length: 131 FT
• Coil Type: Aluminum Fin-Copper Tube
• Mount Type: Condenser
• Dimensions: 39-3/8 x 29-3/8 x 15-13/16 inches
• Weight: 122.4 lbs
