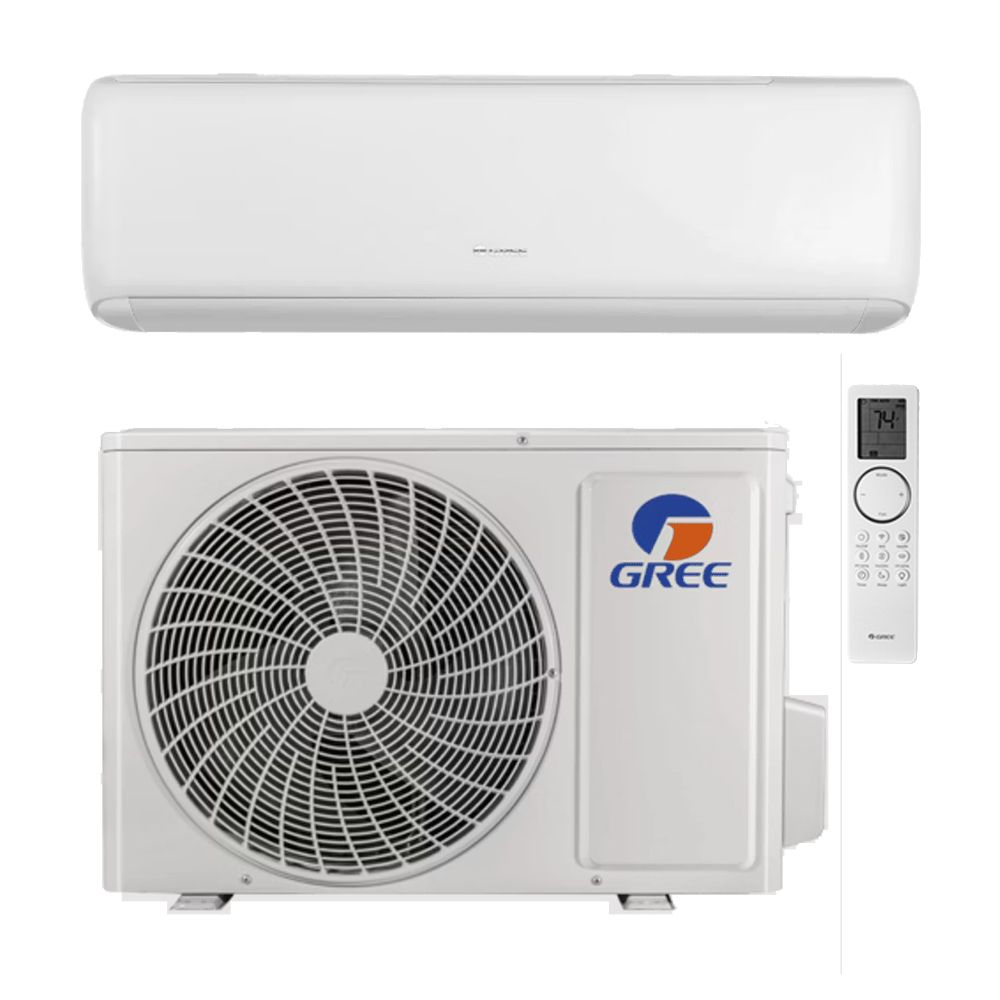

GREE Livo LIV24HP230V1R32AH LIV24HP230V1R32AO - Indoor/Outdoor Inverter Mini Split Heat Pump System w Remote - 24k BTU - 230V-SEER 19 -R32

Product Description

The GREE LIV24HP230V1R32AH is a mini-split heat pump designed for single-zone indoor use. This unit uses R32 refrigerant and advanced inverter technology to manage temperature effectively. It provides both cooling and heating options, making it ideal for year-round comfort.

• Equipped with multiple fan speeds and an auto-clean feature.
• Operates quietly for minimal disruption.
• Includes I-Feel function and self-diagnosis for user convenience.

Product Highlights

This system is suitable for cooling and heating within specified temperature ranges, making it versatile for different climates.

Product Information

Standard Information

• Brand: GREE Comfort
• Application: Single Zone Indoor Wall Mount

Technical Specifications

• Cooling Capacity: 26,270 BTU/hr
• Heating Capacity: 26,600 BTU/hr
• SEER2 Rating: 19.0
• EER2 Rating: 11.9
• HSPF2 Rating: 8.5
• COP: 1.75
• Cooling Temperature Range: 0 - 118 °F
• Heating Temperature Range: -13 - 75 °F
• Refrigerant Type: R32
• Sound Pressure Level: 36 - 51 dB(A)
• Dimensions: 42-7/16 x 13-7/64 x 9-11/16 inches
• Input Voltage: 208/230V
• System MCA: 15
• Weight (Net / Gross): 33.1 / 39.7 lbs
• Air Flow: 412 - 677 CFM
• Dehumidification: 5.28 pt/hr
• Parts Warranty: 5 years
• Compressor Warranty: 7 years

Product Description

The GREE LIVO R32 model LIV24HP230V1R32AO is a mini-split heat pump tailored for single-zone environments. This unit delivers efficient heating and cooling using R32 refrigerant. The outdoor unit is engineered with a variable speed compressor for optimal performance and quiet operation throughout its specified range.

• Offers heating and cooling in one unit.
• Specifically designed for single-zone settings.
• Incorporates durable construction with copper tubing and aluminum fins.

Product Highlights

This heat pump efficiently operates in a wide range of temperatures, maintaining comfort regardless of outdoor conditions.

Product Information

Standard Information

• Manufacturer: Gree
• Manufacturer Part Number: LIV24HP230V1R32AO

Technical Specifications

• Series: LIVO
• Cooling Capacity: 24,000 BTU/h
• Heating Capacity: 24,000 BTU/h
• SEER2: Up to 19
• EER2: Up to 11.9
• HSPF2: Up to 8.5
• Refrigerant: R32
• Cooling Operating Range: 0 °F to 118 °F
• Heating Operating Range: -13 °F to 75 °F
• Voltage: 208/230V
• Electrical: 208-230V | 60 HZ | 1 Phase
• Amp(s): 15
• Sound Pressure Level: 58 dB(A)
• Compressor Type: Rotary
• Liquid Line: 1/4
• Suction Line: 1/2
• Zone Capacity: 1
• Mount Type: Condenser
• Dimensions: 37.32 W x 25.34 H x 9.16 D
• Weight: 103.6 lbs
• Net Weight: 93.7 lbs
• Listings: AHRI, ETL
• AHRI Certificate #: 214779349
