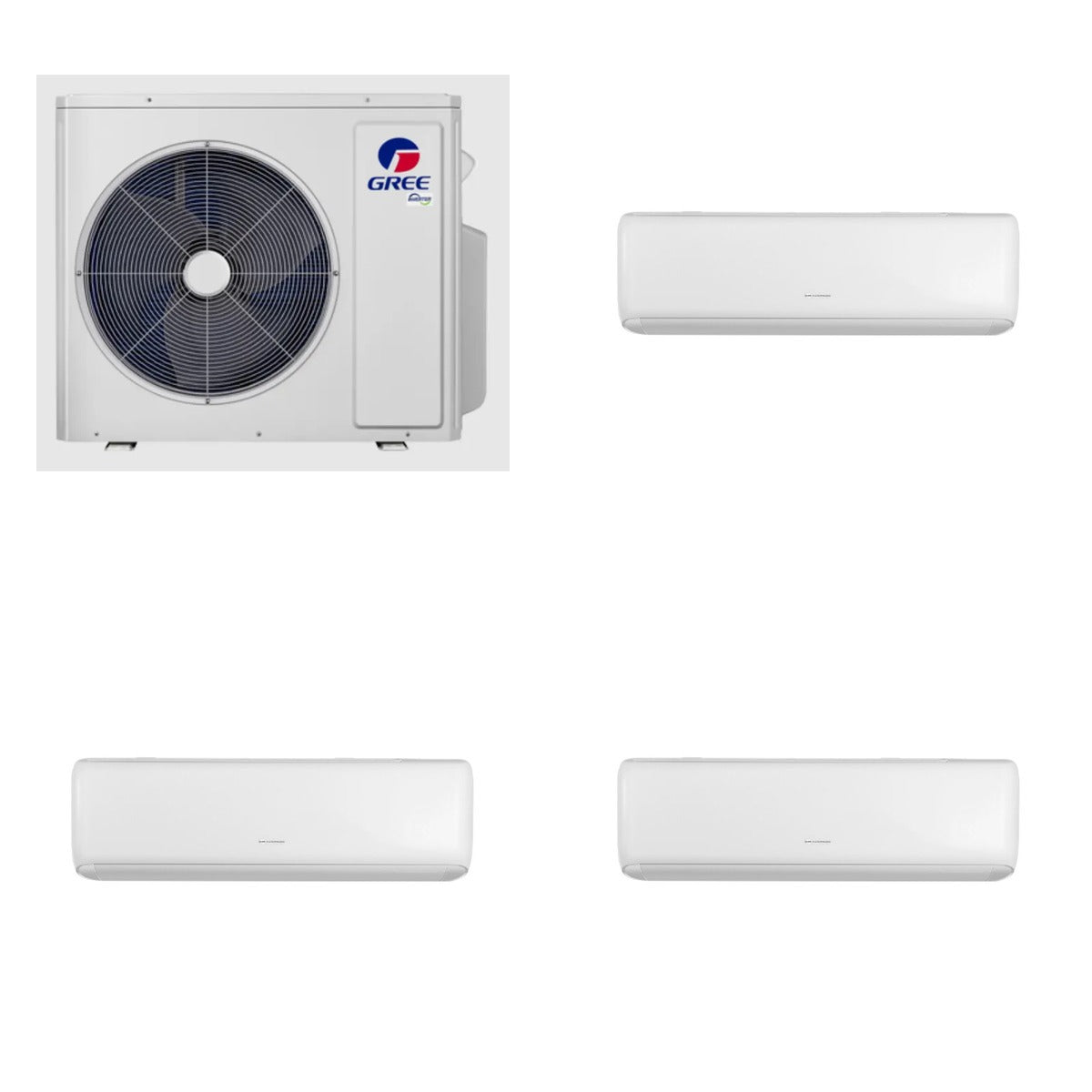

GREE Livo 36000 BTU R-32 21 SEER2 3-Zone Ductless Mini Split Heat Pump System - 9K+9K+12K

Description

This bundle includes a powerful GREE Multi21+ R32 Mini-Split Heat Pump Condenser along with two versatile single zone air handlers. The GREE MUL36HP230V1R32AO condenser provides efficient heating and cooling for up to four indoor zones, making it a perfect match for the GREE LIV09HP230V1R32AH and LIV12HP230V1R32AH air handlers. Designed for optimal performance, this combination is ideal for both residential and commercial applications, ensuring comfort and energy efficiency in any setting.

What's Included

• GREE MUL36HP230V1R32AO - 36K BTU Multi21+ R32 Mini-Split Heat Pump Condenser (Qty x1)
• GREE LIV09HP230V1R32AH - Livo R32 Single Zone Mini-Split Air Handler 9000 BTU (Qty x2)
• GREE LIV12HP230V1R32AH - Livo R32 Single Zone Mini-Split Air Handler 12000 BTU (Qty x1)

Key Details

• Weight of Bundle: 235.8 lb (GREE 176.4 lb + Gree 39.6 lb + Gree 19.8 lb)
• Cooling Capacity: 40,900 BTU (Condenser), 10,300 BTU (LIV09), 13,300 BTU (LIV12)
• Heating Capacity: 44,300 BTU (Condenser), 13,136 BTU (LIV09), 14,600 BTU (LIV12)
• SEER2 Rating: 20.5 (LIV09), 19.0 (LIV12)
• Voltage: 230V (Condenser), 187-253 VAC (Air Handlers)
• Decibel Rating: 63 dBA (Condenser), 41 dB (LIV09), 47 dB (LIV12)
• Dimensions: 40 5/32" W x 32 33/64" H x 16 13/16" D (Condenser)
• Dimensions: 32 7/8" W x 10 53/64" H x 7 7/8" D (LIV09 & LIV12)
• Weight: 176.4 lb (Condenser), 19.8 lb (LIV09 & LIV12)

Use & Compatibility

This bundle is intended for efficient heating and cooling in residential and commercial spaces. The GREE Multi21+ condenser is compatible with the included single zone air handlers, allowing for customized climate control in multiple zones. Ideal for new installations or upgrades, this system ensures optimal comfort and energy savings.
