GREE Livo 36000 BTU R-32 21 SEER2 3-Zone Ductless Mini Split Heat Pump System - 9K+12K+24K

Description

This comprehensive HVAC bundle includes everything you need for efficient heating and cooling in both residential and commercial settings. The GREE MUL36HP230V1R32AO 36K BTU Multi21+ R32 Mini-Split Heat Pump Condenser serves as the powerhouse, capable of supporting up to four indoor zones. Complementing this are three air handlers: the GREE LIV09HP230V1R32AH, LIV12HP230V1R32AH, and LIV24HP230V1R32AH, each designed to optimize comfort and energy efficiency. With advanced features like smart control options, low voltage start-up, and various fan speeds, this bundle ensures a customizable and reliable climate control solution for any space.

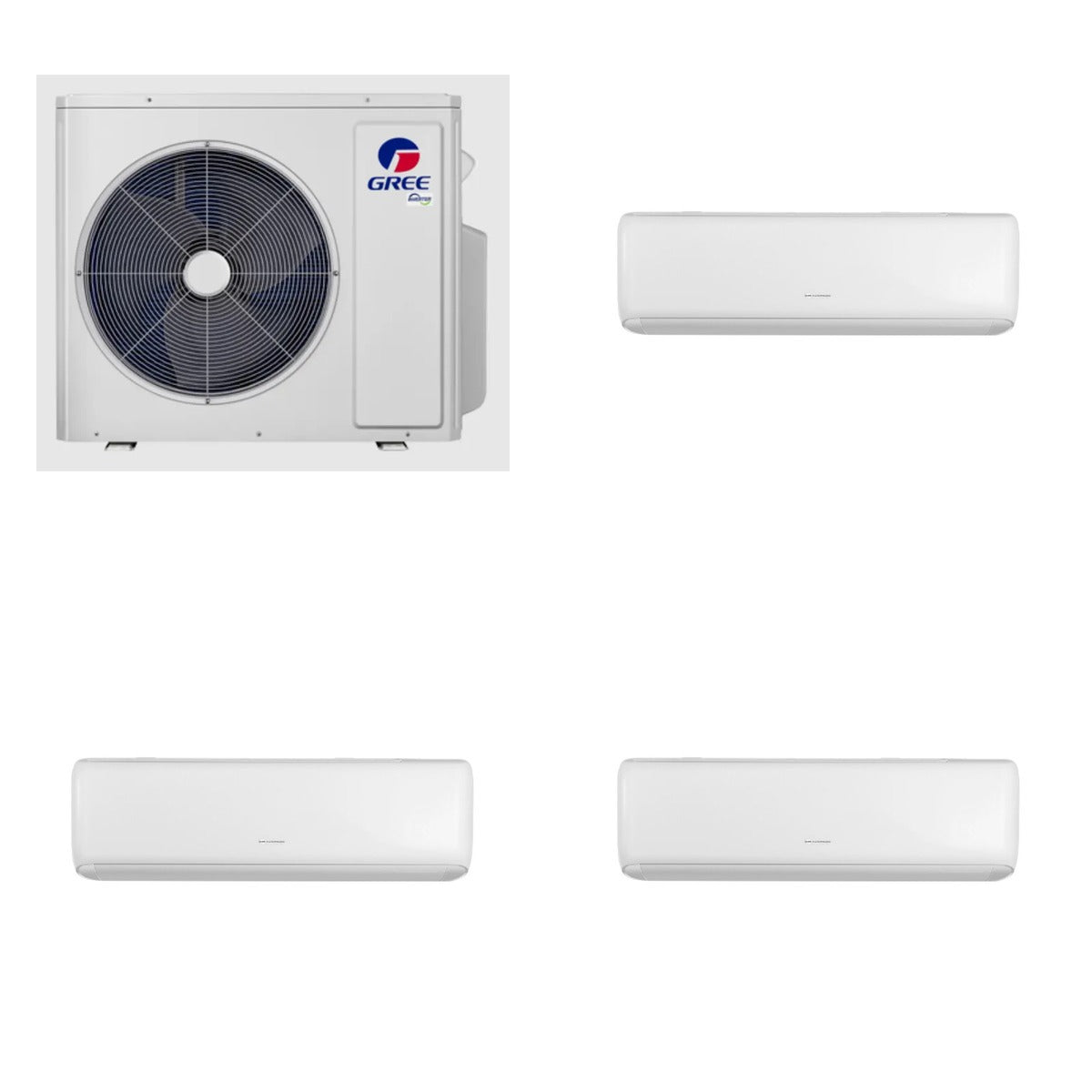

What's Included

• GREE MUL36HP230V1R32AO - 36K BTU Multi21+ R32 Mini-Split Heat Pump Condenser (Qty x1)
• GREE LIV09HP230V1R32AH - Livo R32 Single Zone Mini-Split Air Handler 9000 BTU (Qty x1)
• GREE LIV12HP230V1R32AH - Livo R32 Single Zone Mini-Split Air Handler 12000 BTU (Qty x1)
• GREE LIV24HP230V1R32AH - 24k BTU Livo R32 Single Zone Mini-Split Air Handler (Qty x1)

Key Details

• Weight of Bundle: 249.1 lb (GREE 176.4 lb + Gree 19.8 lb + Gree 19.8 lb + Gree 33.1 lb)
• Cooling Capacity: 40,900 BTU (Condenser), 10,300 BTU (LIV09), 13,300 BTU (LIV12), 26,270 BTU (LIV24)
• Heating Capacity: 44,300 BTU (Condenser), 13,136 BTU (LIV09), 14,600 BTU (LIV12), 26,600 BTU (LIV24)
• Voltage: 230V
• SEER2 Ratings: 20.5 (LIV09), 19.0 (LIV12, LIV24)
• Decibel Ratings: 63 dB (Condenser), 41 dB (LIV09), 47 dB (LIV12), 51 dB (LIV24)
• Dimensions: 40 5/32" W x 32 33/64" H x 16 13/16" D (Condenser); 32 7/8" W x 10 53/64" H x 7 7/8" D (LIV09); 32 7/8" W x 10 53/64" H x 7 7/8" D (LIV12); 42 7/16" W x 13 7/64" H x 9 11/16" D (LIV24)
• Weight: 176.4 lb (Condenser), 19.8 lb (LIV09, LIV12), 33.1 lb (LIV24)

Use & Compatibility

This bundle is intended for efficient heating and cooling in both residential and commercial applications. The GREE Multi21+ system allows for versatile installation with up to four indoor zones, while each air handler is compatible with the condenser, ensuring optimal performance and comfort across various spaces.
