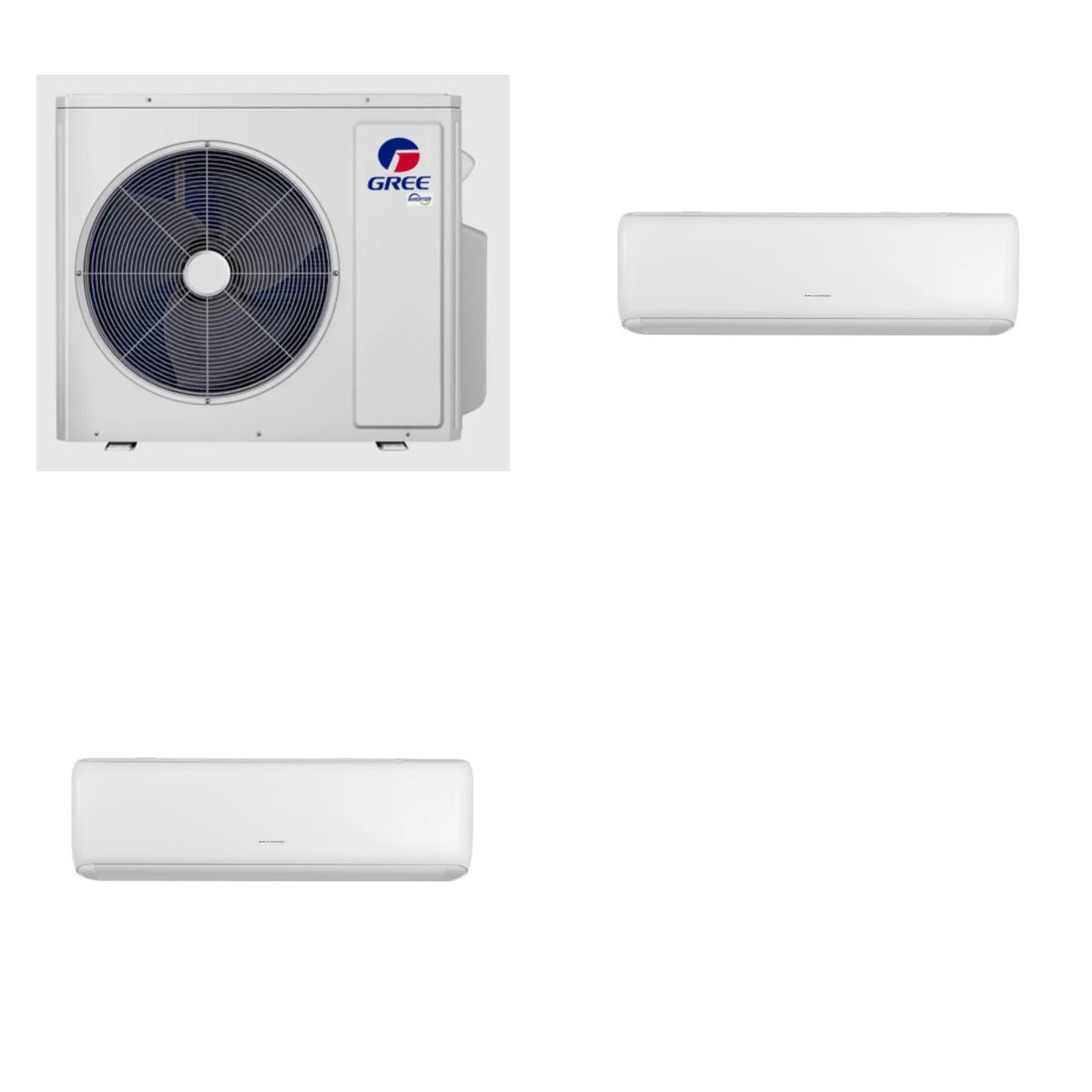

GREE Livo 36000 BTU R-32 21 SEER2 2-Zone Ductless Mini Split Heat Pump System - 12K+24K

Description

This comprehensive HVAC bundle features the GREE MUL36HP230V1R32AO 36K BTU Multi21+ R32 Mini-Split Heat Pump Condenser, along with two efficient air handlers: the GREE LIV12HP230V1R32AH and the GREE LIV24HP230V1R32AH. Together, these units provide a versatile heating and cooling solution for both residential and commercial spaces. The condenser can support up to four indoor zones, while the air handlers are designed for applications, ensuring optimal climate control throughout your space. With advanced features like WiFi compatibility, self-diagnosis, and low voltage start-up, this bundle offers both convenience and efficiency for your heating and cooling needs.

What's Included

• GREE MUL36HP230V1R32AO - 36K BTU Multi21+ R32 Mini-Split Heat Pump Condenser (Qty x1)
• GREE LIV12HP230V1R32AH - Livo R32 Single Zone Mini-Split Air Handler 12000 BTU (Qty x1)
• GREE LIV24HP230V1R32AH - 24k BTU Livo R32 Single Zone Mini-Split Air Handler (Qty x1)

Key Details

• Weight of Bundle: 229.3 lb (GREE 176.4 lb + Gree 19.8 lb + Gree 33.1 lb)
• Cooling Capacity: 40,900 BTU (Condenser), 13,300 BTU (LIV12), 26,270 BTU (LIV24)
• Heating Capacity: 44,300 BTU (Condenser), 14,600 BTU (LIV12), 26,600 BTU (LIV24)
• Voltage: 230V (Condenser), 187-253 VAC (Air Handlers)
• SEER2 Rating: 19.0 (Both Air Handlers)
• Decibel Rating: 63 dBA (Condenser), 47 dB (LIV12), 51 dB (LIV24)
• Dimensions: 40 5/32" W x 32 33/64" H x 16 13/16" D (Condenser); 32 7/8" W x 10 53/64" H x 7 7/8" D (LIV12); 42 7/16" W x 13 7/64" H x 9 11/16" D (LIV24)
• Weight: 176.4 lb (Condenser), 19.8 lb (LIV12), 33.1 lb (LIV24)

Use & Compatibility

This bundle is ideal for residential and commercial applications, providing efficient heating and cooling across multiple zones. The GREE Multi21+ system allows for seamless integration with various indoor units, ensuring compatibility with different space requirements and climate control needs.
